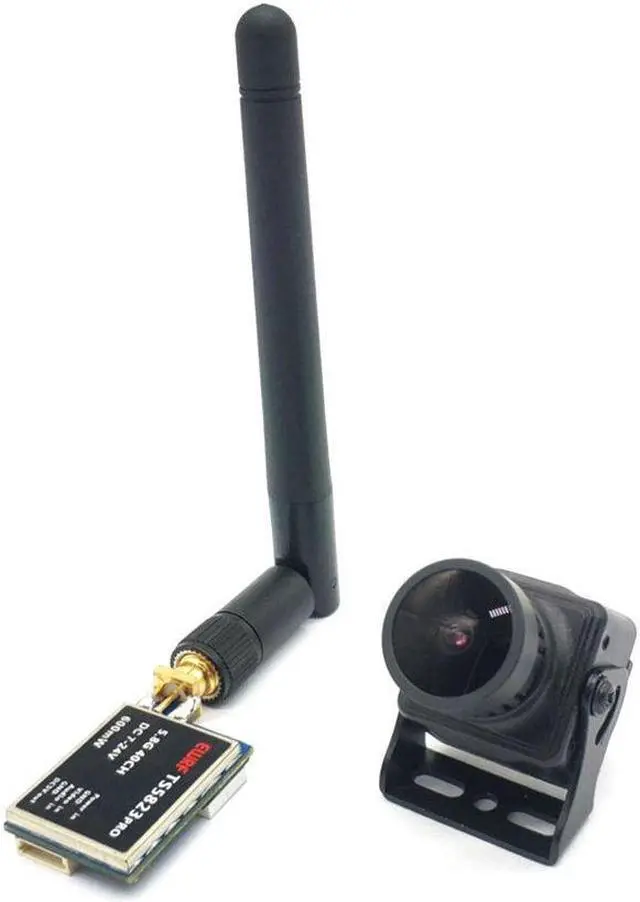

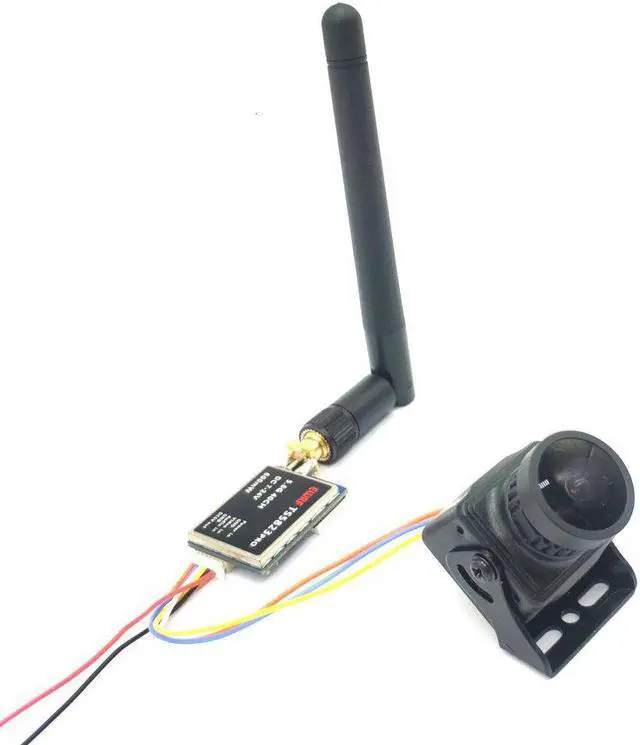

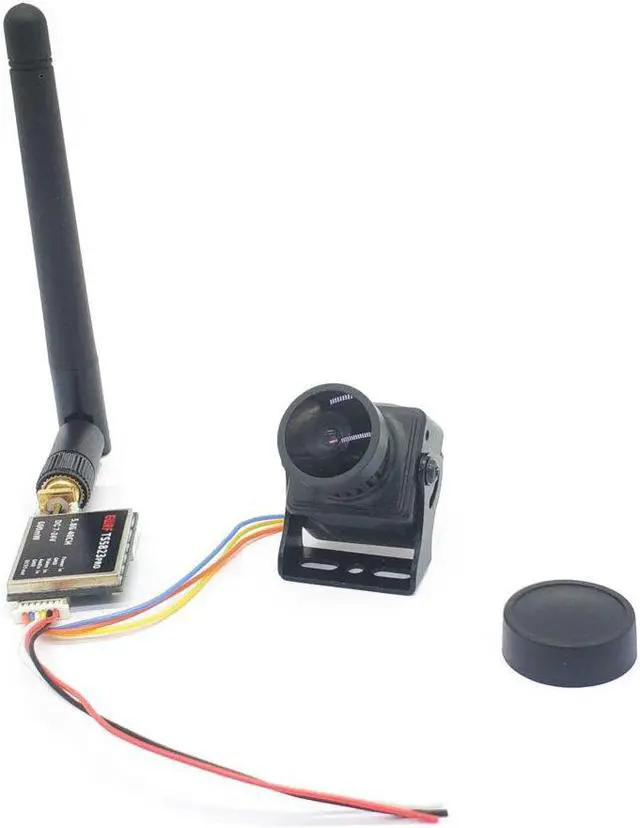

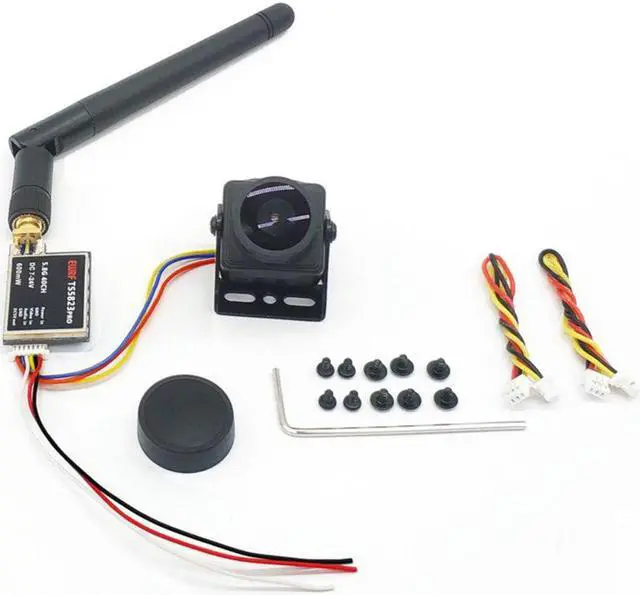

UpgradedTS5823Pro 5.8GHz 40CH 600mW FPV Transmitter VTX With CMOS 1200TVL Camera For RC Drone

Description:

Brand Name:

Item Name: FPV Transmitter + Camera Combo

Specifications of FPV Transmitter:

Item Name: TS5823Pro

Frequency: 5.8G

Channel: 40

Transmitting Power: 600mW/OFF(Pitmode)

Working Current: 230mA (12V)

Power Supply: DC 7-24V

Weight: 5 g

Dimension: 30x20x8mm

Specifications of FPV Camera:

Size: 22mm x 22mm

Format : PAL

PAL: 1920H×1080V(1MP)

NTSC: 1020H×1920V (1MP)

Horizontal Resolution : 1200TVL

Video Output : 1.0Vp p/75ohm

AGC : 0.25/0.50/0.75/1.00 4 levels adjustable, up to max. 55dB

WB : ON/OFF

Exposure Type: electronic exposure

Electronic Shutter : 1/50(1/60) 1/100000 second

Gamma Correction : 0.45/1.0

Synchronization Mode : inter sync

Lens: 2.5mm

Working Voltage: DC 5 to 12V(wide voltage , measured 5 to 13V)

Working Current: 70mA(ow power consumption)

Working Temp.: -20degree to 60degree

Wetness: 0% ~ 98%

Features:

- 600mW/OFF(Pitmode)

- Miniature and light weight design

- 5V BEC output for camera,RC receiver

- Clean powerup and channel switching without interference to others

- Overheating protection to prevent premature damage.

User Guide

1. Setting

After power on, the digital display shows the following three parameters in turn: band, channel, and frequency.Press and hold the button can be entered into the parameters setting.

- Press and hold the button,the digital display will shows the alphabet for band(A-b-C-d-E), press the button can select the bands.

- Press and hold the button again, When the digital display shows the Arabic numerals for the channel (1-8),press the button can select the channels.
