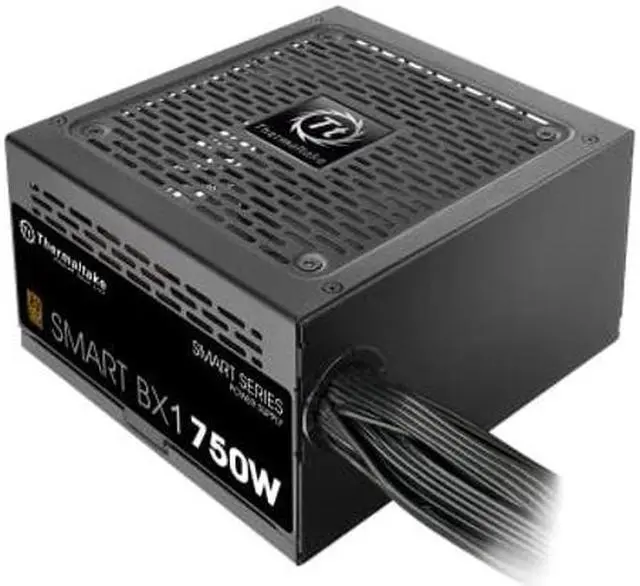

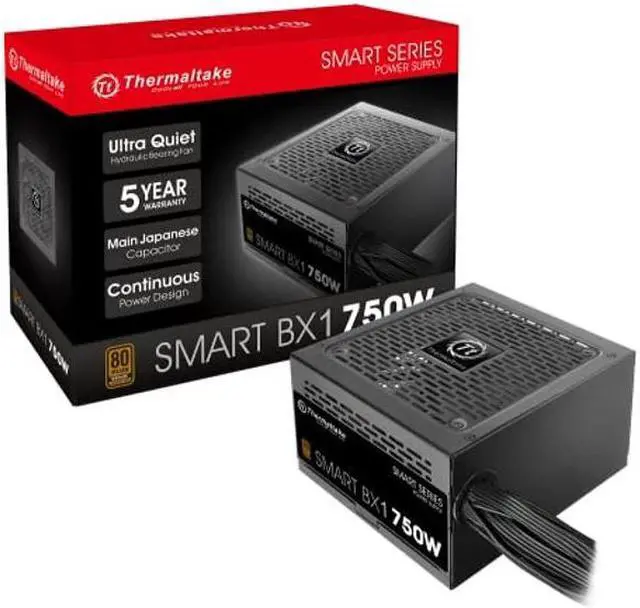

Thermaltake Smart BX1 750W Bronze SLI/Crossfire Ready Continuous Power ATX12V V2.3/ EPS V2.92 80 Plus Bronze Certified 5 Year Warranty Non Modular Power Supply PS-SPD-0750NNFABU-1

Be the first to review this product...
  • 80+ Bronze - efficiency up to 88% and optimized for C6/C7 States ready
  • Connectors - 24 pin x 1/ 4+4 pin x 1/ SATA x 8/ PCI-E x 4/ peripheral x 4/ FDD x 1
  • Ultra quiet 120mm fan - dynamic Bearing fan s superior cooling performance and silent operation

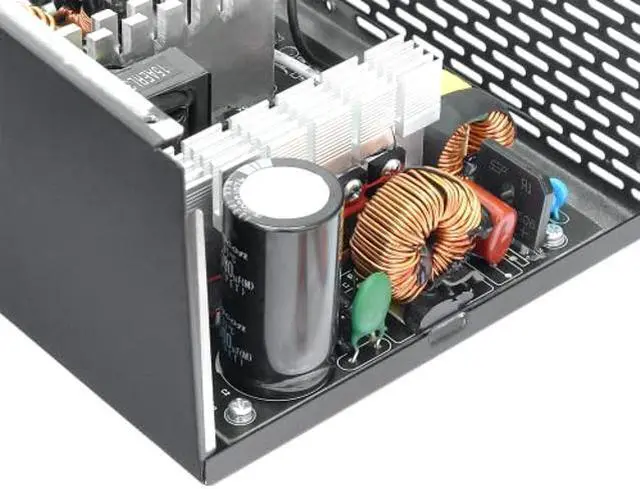

  • Main Japanese capacitors - Japanese capacitors provide superb performance and reliability
  • Low ripple noise - ensure excellent power supply stability; Keep performance-critical components, such as VGA card, to operate reliably for longer
  • Single +12V rail design - powerful 12V+ Single rail supports today's GPU demands supporting DC to DC design for non-stop usage with stable reliable performance
  • Industry grade protections - (OPP) Over Power, (OVP) Over Voltage, and (SCP) short circuit protections
  • 5 year warranty
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now
Built to deliver 80 Plus Bronze with 88% power efficiency, The smart BX1 series is available in 450W - 750W models. Constructed with a 120mm hydraulic bearing fan, Japanese main capacitor and other premium components to help deliver a continuous and stable power output at 40, Near silent operation and reliable performance. With an ample 5-year, The smart BX1 is able to satisfy the market, where value-oriented users are looking for a new power Supply with all the latest features.

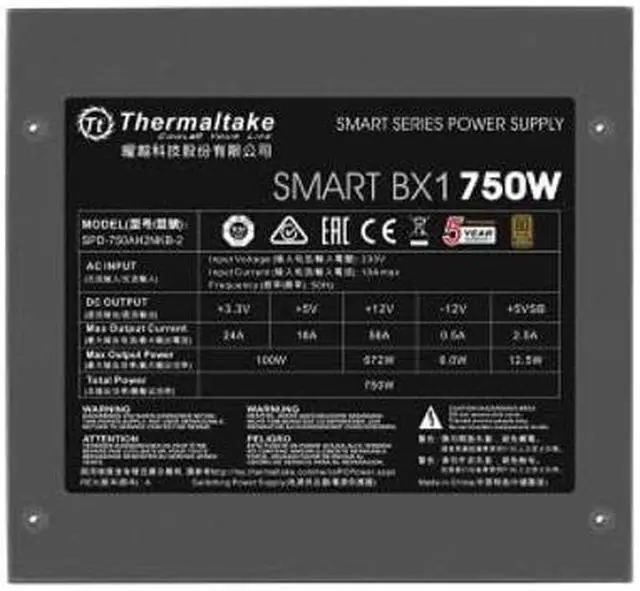

P/N:
PS-SPD-0750NNFABU-1WATTS: 750WRGB
FAN: No
FORM FACTOR:
ATXMODEL:
SPD-750AH2NKBTYPE: ATX 12V v 2.3 and EPS v 2.92MAX.
OUTPUT CAPACITY: 750WPEAK
OUTPUT CAPACITY:
900WCOLOR: Black DIMENSION ( W / H / D ): 150mm (W) x 86mm (H) x 140mm (D) PFC (POWER
FACTOR CORRECTION): Active
PFCPOWER GOOD SIGNAL: 100-500 msec
HOLD UP TIME: 16msec at 70% of full load
INPUT CURRENT: 12A max.
INPUT FREQUENCY RANGE: 50Hz - 60HzINPUT
VOLTAGE: 100V - 240V
OPERATING TEMPERATURE: 5degC to + 40degCOPERATING
HUMIDITY: 20% to 85%, non-condensing
STORAGE TEMPERATURE: -40degC to + 55degCSTORAGE
HUMIDITY: 10% to 95%, non-condensing
COOLING SYSTEM: 12cm Hydraulic bearing fan
EFFICIENCY: Meet 80 PLUS Bronze at 115Vac input.
MTBF: 100, 000 hrs minimum
SAFETY APPROVAL: CE/CB/TUV/
UL/ FCC/ BSMIPCI-E 6+2PIN: 4.
