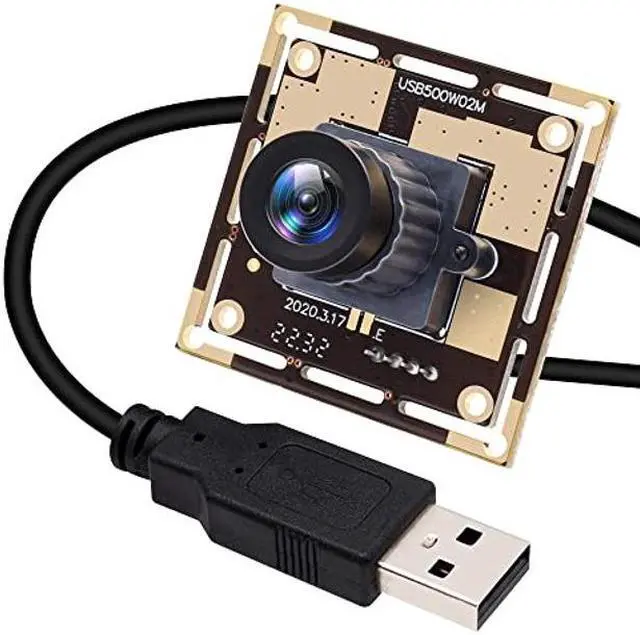

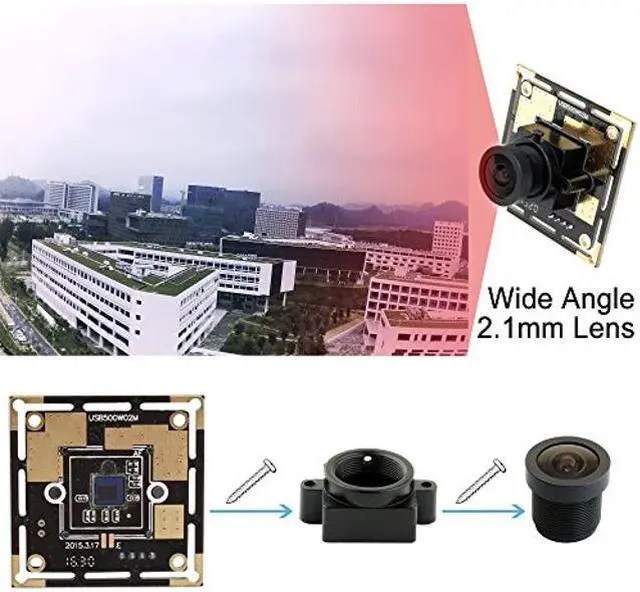

ELP USB with Camera 2.1mm Wide Angle Mjpeg 5megapixel Hd PC Camera USB for Industrial Machine Vision OV5640 Mini UVC USB2.0 Lightburn Camera,3.3ft/1m Cable for Computer Laptop Jetson Nano

Why we choose MJPEG? Choose "MJPEG" final purpose is to reduce data stream, improve the video frame, so that the video will more smooth and occupy less bandwidth. Such as 1megapixel common camera, YUV format only have 10fps, while MJPEG usb camera can up to 30fps. Most Linux USB port device is USB 1.1, becuase bandwidth limited, can not receive YUV data stream, so that need to choose the MJPEG data stream. Common USB PC camera do not have MJPEG DSP, even those support MJPEG but can not work with USB 1.1 yet.

Specification: Optional
models: ELP-USB500W02M-L21
Sensor: 1/4" CMOS OV5640
Lens size: 500W, 5.0 megapixel, Max. 2592 (H) x1944 (V) pixels Max.
Resolution: 2592X1944
Picture format: MJPEG
USB Protocal: USB 2.0 HS/FS
Support free driver: USB Video Class (UVC) 1.1 Auto exposure
AEC: Support Auto white blance
AEB: Support
Frame rate: "2592 (H) x 1944 (V) pixels MJPEG 8fps 2048 (H) x 1536 (V) pixels MJPEG 10fps 1600 (H) x 1200 (V) pixels MJPEG 12fps 1920 (H) x 1080 (V) pixels MJPEG 12fps 1280 (H) x 1024 (V) pixels MJPEG 12fps 1280 (H) x 720 (V) pixels MJPEG 30fps 1024 (H) x 768 (V) pixels MJPEG 30fps 800 (H) x 600 (V) pixels MJPEG 30fps 640 (H) x 480 (V) pixels MJPEG 30fps 320 (H) x 240 (V) pixels MJPEG 30fps"
Adjustable parameters: Brightness/Contrast/Color
saturation /Definition/Gamma/WB voltage: DC 5V, current: 150mA
work temperature: DEGREES(-20~70)

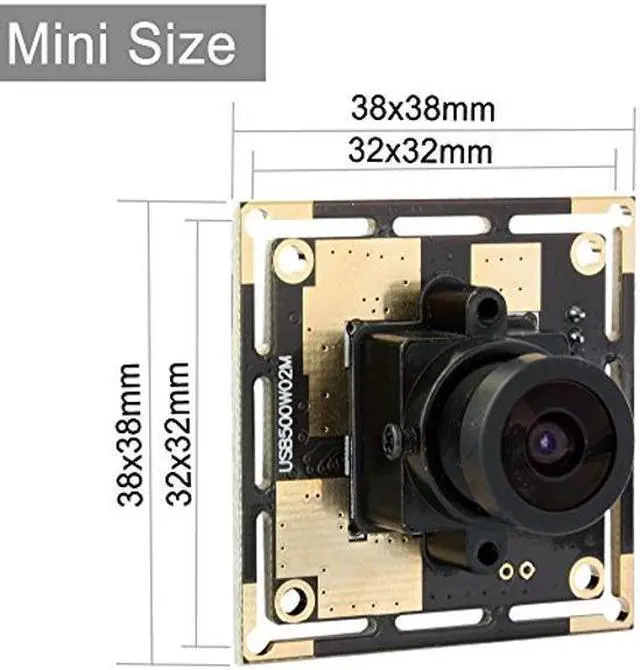

Size: 32x32mm/38*38
Support OS: "WinXP/Vista/WIN7/WIN8/Linux with UVC Mac-OS X 10.4. 8 or later/Wince with UVC/Android 4.0 or above" ELP-USB500W02M-L21 usb camera module can use in where? It can use in"any, all, whole... " Linux CPU operating system which come with USB Host port, including USB 1.1 and USB 2.0
