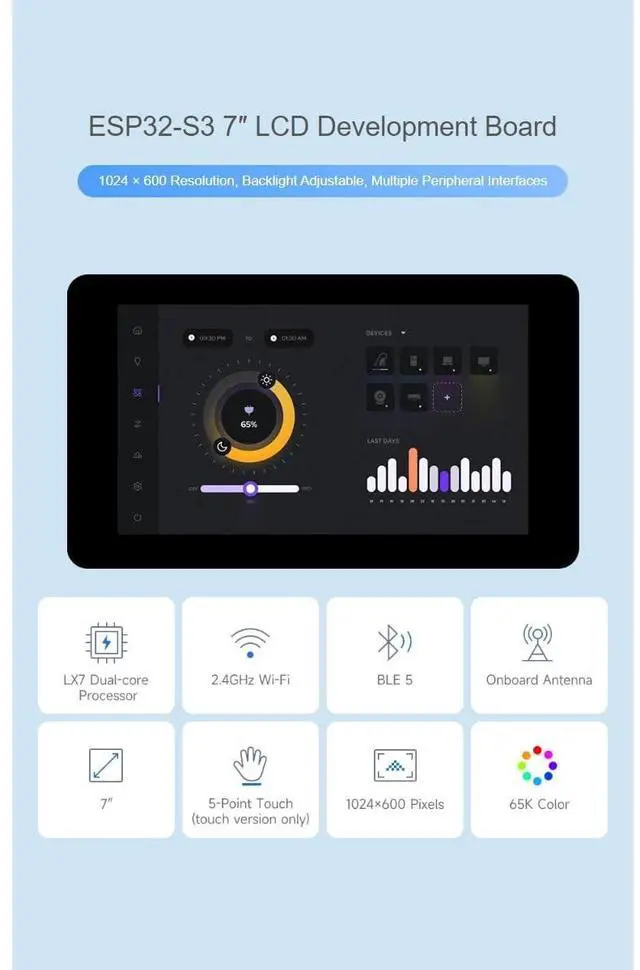

waveshare ESP32-S3 7inch Touch Display Development Board Type B 1024600 Resolution 7IPS LCD Screen Supports Wi-Fi and Bluetooth BLE 5,Backlight Adjustable, Multiple Peripheral Interfaces

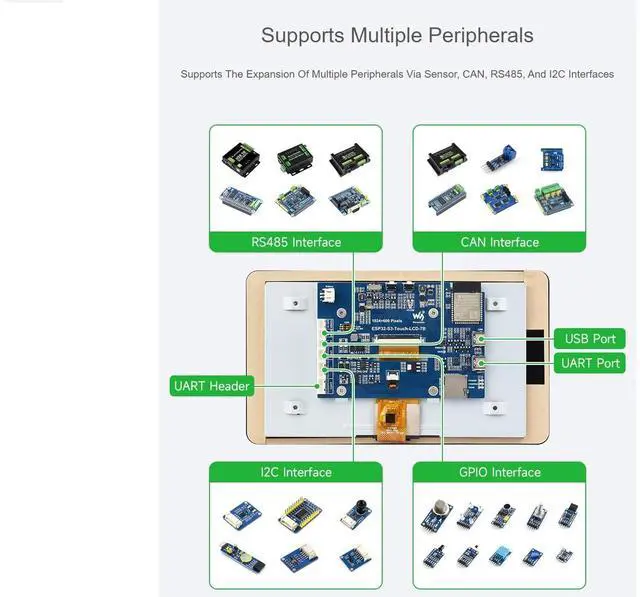

FeaturesThis product is a microcontroller development board that supports 2.4GH z Wi-Fi and Bluetooth BLE 5, integrates high-capacity Flash and PSRAM. Onboard7inch LCD display can smoothly run GUI programs such as LVGL. Combined with multiple peripheral interfaces, it is suitable for rapiddevelopment of ESP32-S3 HMI applications. Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequencySupports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antennaBuilt-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAMOnboard 7inch LCD display, 1024 600 resolution, 65K colorSupports 5-point capacitive touch control via I2C interface, with interrupt support (for touch version only) Onboard CAN, RS485, I2C interface and TF card slot, integrates full-speed USB portLED indicators for easy monitoring of power status and battery charging statusSupports backlight adjustment and real-time battery voltage monitoringSupports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenariosUsage InstructionsCurrently there are three development tools and frameworks, Arduino IDE, ESP-IDF and PlatformIO, providing flexible development options, you can choosethe right development tool according to your project needs and personal habits.

Package ContentESP32-S3-Touch-LCD-7B 1HY 2.0 2P to 2PIN male cable 3HY 2.0 3P to 3PIN male cable 1HY 2.0 4P to 4PIN male cable 2Screws pack 1NoteDevelopment Resource is provided, please contact with us to get if needed.
