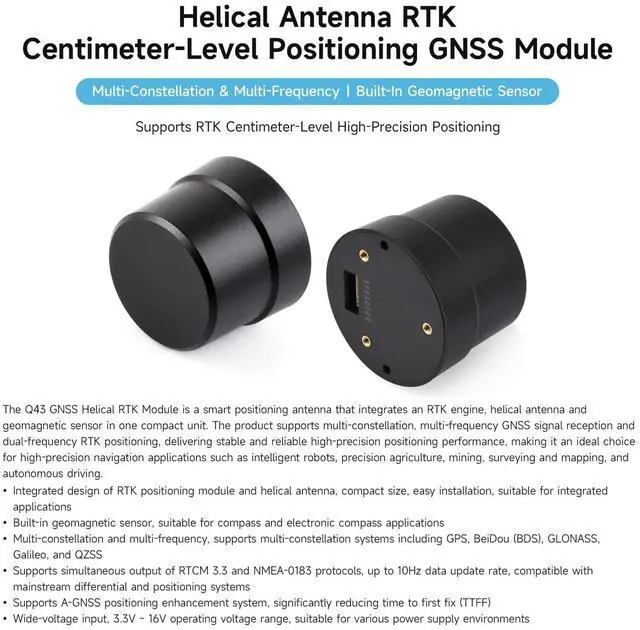

Waveshare Q43 Multi-Constellation Multi-Frequency Helical Antenna, RTK Centimeter-Level High-Precision GNSS Module with Built-in Geomagnetic Sensor and Simultaneous Reception
- Integrated design of RTK positioning module and helical antenna, compact size, easy installation, suitable for integrated applications. Built-in geomagnetic sensor, suitable for compass and electronic compass applications
- Multi-constellation and multi-frequency, supports multi-constellation systems including GPS, BeiDou (BDS), GLONASS, Galileo, and QZSS
- Supports simultaneous output of RTCM 3.3 and NMEA-0183 protocols, up to 10Hz data update rate, compatible with mainstream differential and positioning systems
- Supports A-GNSS positioning enhancement system, significantly reducing time to first fix (TTFF)
- Wide-voltage input, 3.3V ~ 16V operating voltage range, suitable for various power supply environments
+
+
Overview

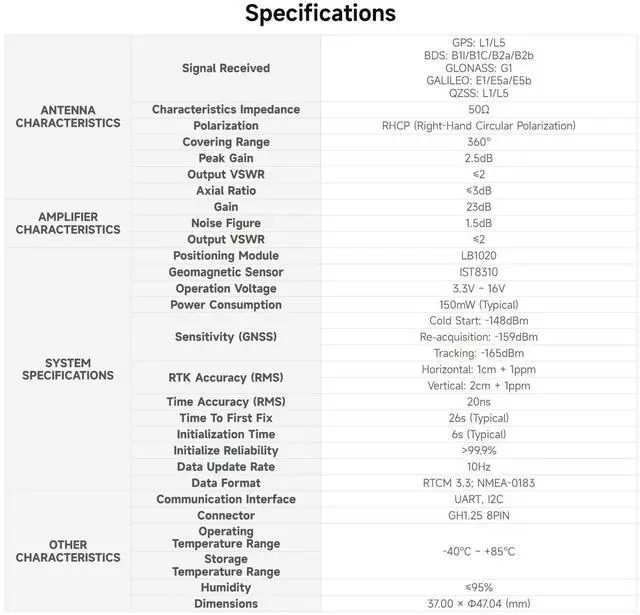

Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Integrated design of RTK positioning module and helical antenna, compact size, easy installation, suitable for integrated applications. Built-in geomagnetic sensor, suitable for compass and electronic compass applications ^^ Multi-constellation and multi-frequency, supports multi-constellation systems including GPS, BeiDou (BDS), GLONASS, Galileo, and QZSS ^^ Supports simultaneous output of RTCM 3.3 and NMEA-0183 protocols, up to 10Hz data update rate, compatible with mainstream differential and positioning systems ^^ Supports A-GNSS positioning enhancement system, significantly reducing time to first fix (TTFF) ^^ Wide-voltage input, 3.3V ~ 16V operating voltage range, suitable for various power supply environments
