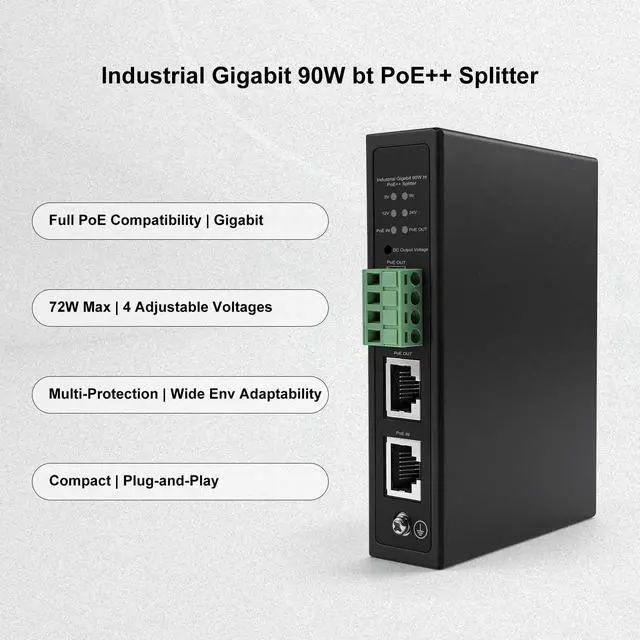

POE20R Industrial Gigabit 90W PoE++ Splitter, IEEE 802.3bt Compliant, DC 5V/9V/12V/24V Output, DIN Rail Mount, Power Supply for PTZ Cameras & Access Control Systems (POE20R-90W)
- 90W PoE SPLITTER - Split 90W IEEE802.3bt PoE to IEEE802.3bt POE and DC power outputs, max 72W in total.
- IEEE802.3BT PoE OUTPUT - 1 x Gigabit IEEE802.3bt PoE outout. Active PoE follows PD Detection -> Classisication Type -> Power On procedures to prevent stanard PD device from damaging. So Non-POE devices are also supported.
- 5V/9V/12V/24V DC OUTPUT - 1 x DC 5V/14A or 9V/7.8A or 12V/5.9A or 24V/3A switchable output(terminal blocks).

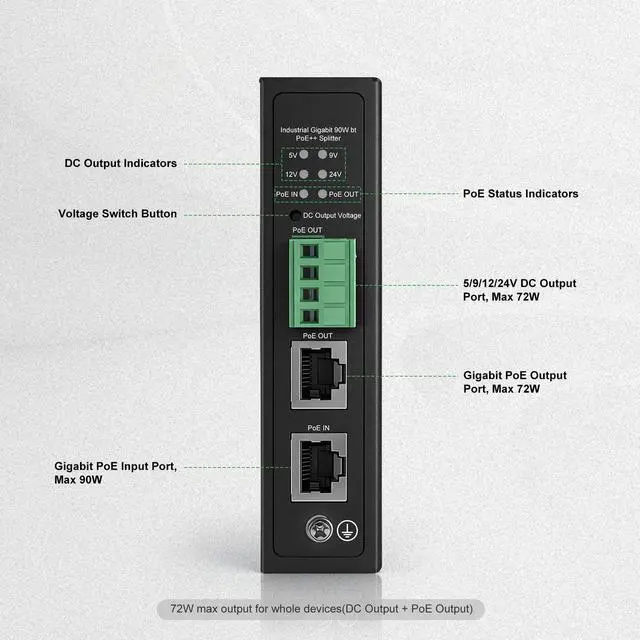

- INTELLIGENT LED INDICATOR - Shows 5V/9V/12V/24V DC output. Help to efficiently control how much power is output.

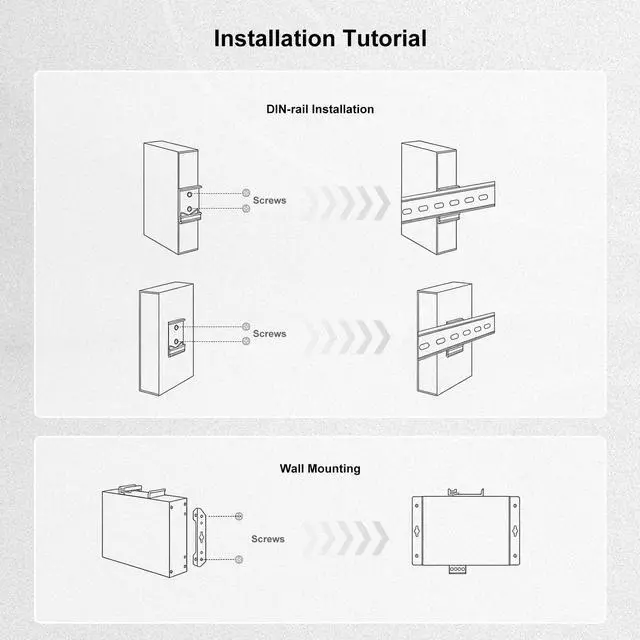

- RUGGED DESIGN - For harsh environment with wide temperature range between -40 ~ 167 (-40 ~ 75 ). Short-circuit protection. Thermal cut. Din rail mount

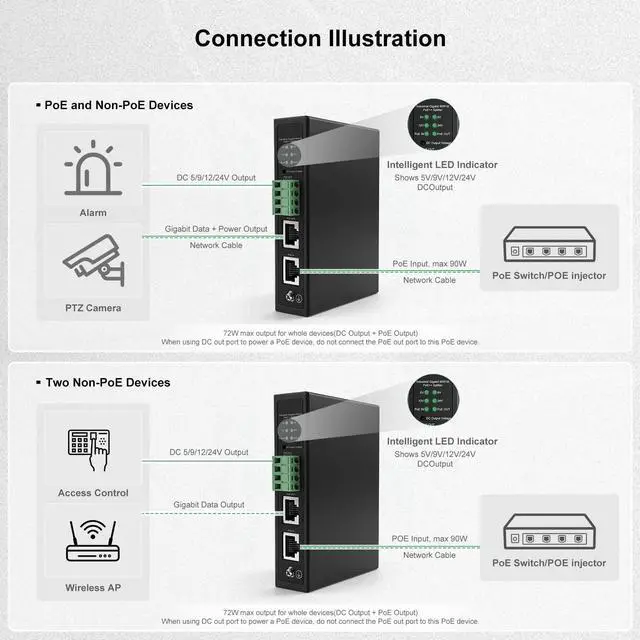

- APPLICATIONS - Provide a sharded 72W power to PoE devices or Non-PoE devices simultaneously, like the outdoor PTZ camera with extra wiper or IR, IP cameras, video server, AP, LED lighting, VoIP phone, etc.
- NOTED - POE-SP02BT-POE needs to work with standard IEEE802.3bt/at standard
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
90W PoE SPLITTER - Split 90W IEEE 802.3 bt PoE to IEEE 802.3 bt POE and DC power outputs, max 72W in total. ^^ IEEE 802.3BT PoE OUTPUT - 1 x Gigabit IEEE 802.3 bt PoE outout. Active PoE follows PD Detection -> Classisication Type -> Power On procedures to prevent stanard PD device from damaging. So Non-POE devices are also supported. ^^ 5V/9V/12V/24V DC OUTPUT - 1 x DC 5V/14A or 9V/ 7.8A or 12V/ 5.9A or 24V/3A switchable output (terminal blocks). ^^ INTELLIGENT LED INDICATOR - Shows 5V/9V/12V/24V DC output. Help to efficiently control how much power is output.
^^ RUGGED DESIGN - For harsh environment with wide temperature range between -40 ~ 167 (-40 ~ 75 ). Short-circuit protection. Thermal cut. Din rail mount ^^ APPLICATIONS - Provide a sharded 72W power to PoE devices or Non-PoE devices simultaneously, like the outdoor PTZ camera with extra wiper or IR, IP cameras, video server, AP, LED lighting, VoIP phone, etc. ^^ NOTED - POE-SP02BT-POE needs to work with standard IEEE 802.3 bt/at standard PoE switches, like
POE-SW508G(ASIN: B09XDY8R9G) or
POE-IN9001(ASIN: B0CYLHFZHT). Please do not connect it with non-standard BT POE Switches or Injectors, including POE-IN90W (Passive PoE version).
^^ RUGGED DESIGN - For harsh environment with wide temperature range between -40 ~ 167 (-40 ~ 75 ). Short-circuit protection. Thermal cut. Din rail mount ^^ APPLICATIONS - Provide a sharded 72W power to PoE devices or Non-PoE devices simultaneously, like the outdoor PTZ camera with extra wiper or IR, IP cameras, video server, AP, LED lighting, VoIP phone, etc. ^^ NOTED - POE-SP02BT-POE needs to work with standard IEEE 802.3 bt/at standard PoE switches, like
POE-SW508G(ASIN: B09XDY8R9G) or
POE-IN9001(ASIN: B0CYLHFZHT). Please do not connect it with non-standard BT POE Switches or Injectors, including POE-IN90W (Passive PoE version).
