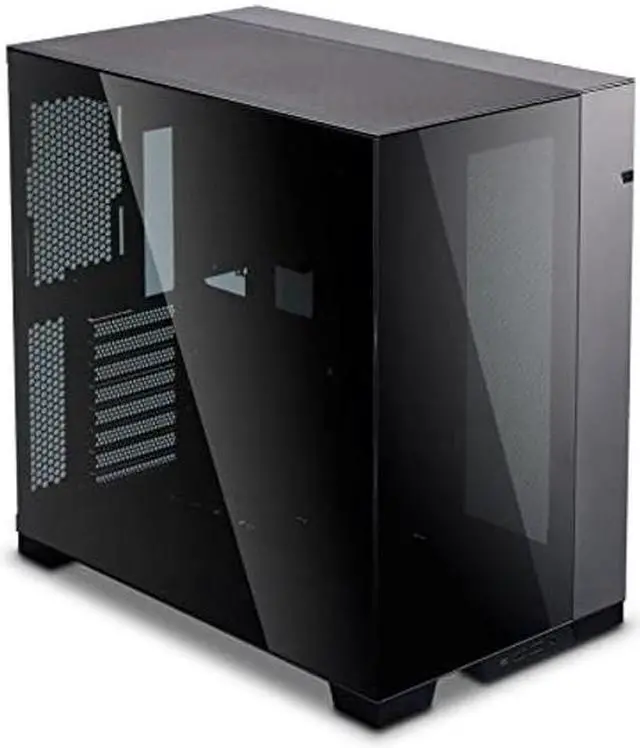

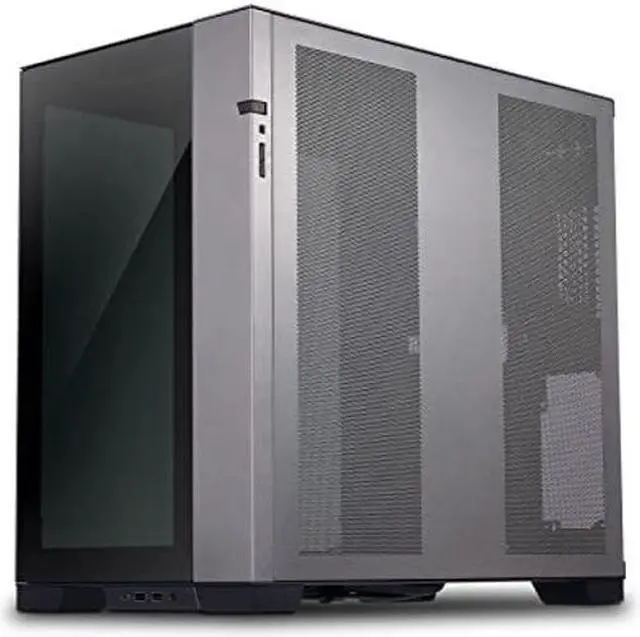

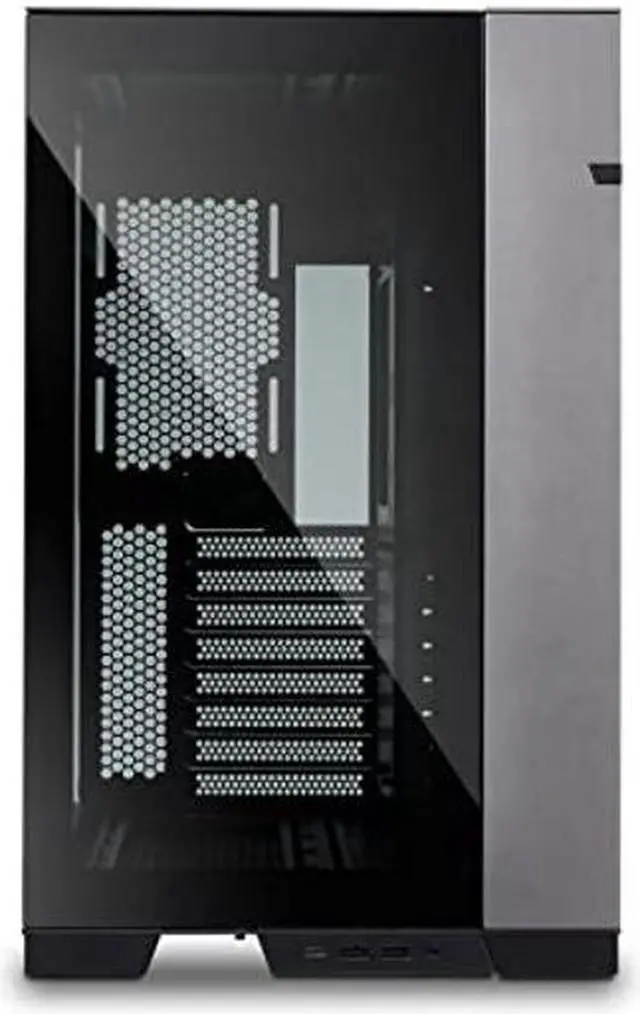

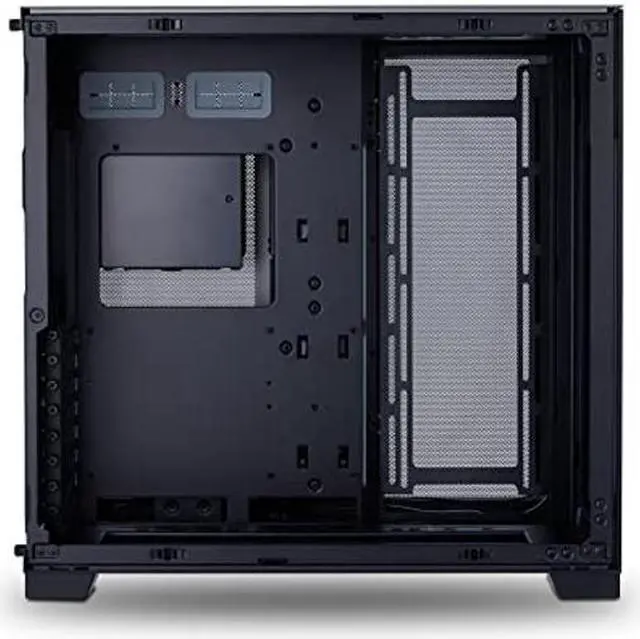

LIAN LI O11D EVO, Harbor
Grey MODEL: O11DEG
DIMENSION: (D) 465mm x (W) 285mm x (H) 459mm
MATERIAL: 4mm Aluminum; 4mm Tempered Glass; 1mm
Steel Structure MOTHERBOARD SUPPORT: E-ATX
(width: under 280mm)/ATX /M-ATX/ITX
PSU SUPPORT: 220mm
FAN SUPPORT: -
Top: 120mm x 3 or 140mm x 2 -
Side: 120mm x 3 or 140mm x 2 -
Bottom: 120mm x 3 or 140mm x 2 -
Rear: 120mm x 1 - On
Drive Cage: 60mm x 1
RADIATOR SUPPORT: -
Top: 360mm x 1 or 280mm x 1 *Total
max thickness: 87.5 mm -
Side: 360mm x 1 or 280mm x 1 *Inner scenario total
max thickness: 83mm (120mm fan on top and bottom) 63mm (140mm fan on top and bottom) *Outer scenario total max.
thickness: 120mm (120mm fan on top and bottom) 100mm (140mm fan on top and bottom) -
Bottom: 360mm x 1 *Total
max thickness: 87.5 mm DRIVE SUPPORT -
Bottom: 2.5! +- SSD x 4 or 3.5! +- HDD x 2 -
Side: 2.5! +- SSD x 4 or 3.5! +- HDD x 2 -
Drive Cage: 2.5! +- SSD x 3 or 3.5! +- HDD x 2 + 2.5! +- SSD x 1 -
Cable Management Bar: 2.5! +- SSD x 2 *Only 9 sets of 2.5! +- SSD mounting pads are provided
GPU LENGTH CLEARANCE: 426 mm
CPU HEIGHT CLEARANCE: 167 mm
EXPANSION SLOTS: 8 I/O PORTS - 2 x USB 3.0 - 1 x USB 3.1 TYPE-C - 1 x HD AUDIO/ MIC - LED Color and Mode button - Reset Button - Power
Button DUST FILTER: Bottom x 1
WARRANTY: 1 year
