Hsility PTZ Controller Camera Controller POE Network 4D Joystick Decoding Keyboard Indoor with 5 Inch LCD Screen, 480p
- PTZ Controller Multi Compatiable-Thanks for the standard network protocol,the Hsility network PTZ video conference Controller works with Linux system and all other IP PTZ cameras and can set preset patrol pattern and AB scan.Support max 999 equipments at the same time.
- Camera Controller Ergonomics Operation Design-The Hsility PTZ controller ergonomics design for 4D joystick and knob button which is free to control the ptz and zooming function. It also support independetn IP address and IE web setting.
- PTZ Camera Multi Use Scenes-The Hsility Video Conference PTZ Control Keyboard is designed for simple and quick control of speed dome camera accurately and can be used in various important conference venues, for example, government and telecommunications departments, public security, procuratorates, courts, banks, securities, insurance, education, taxation
- PTZ Controller Hard Cover Structure-The surface of the Hsility Network PTZ controller is made of tough aluminum allo
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Feature:
1, Support network control with independent IP address.

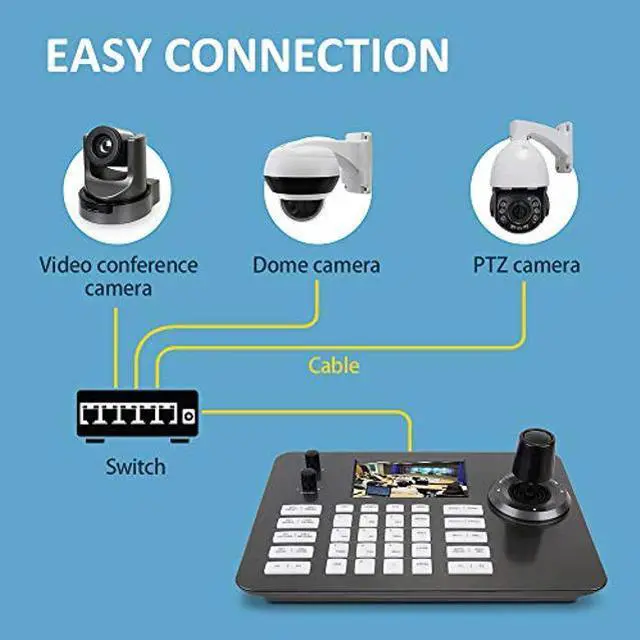

2, support ONVIF, POE, IE web setting

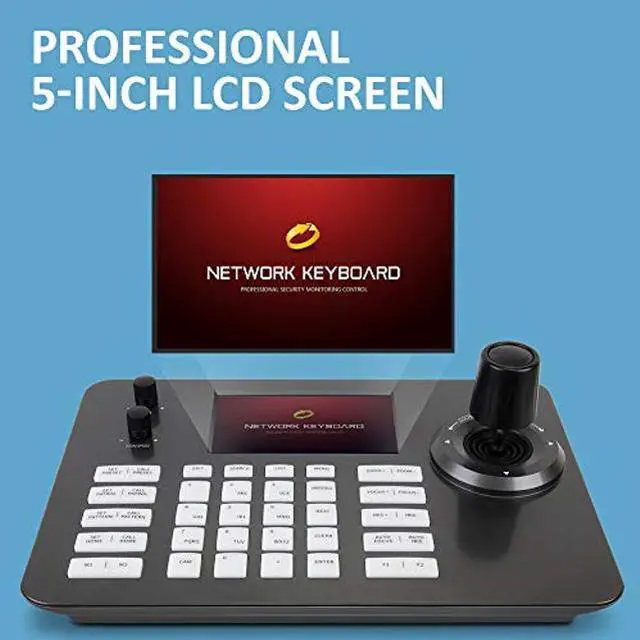

3, 5 inch industrial LCD screen, resolution 800 * 480, image decoding, real-time monitoring

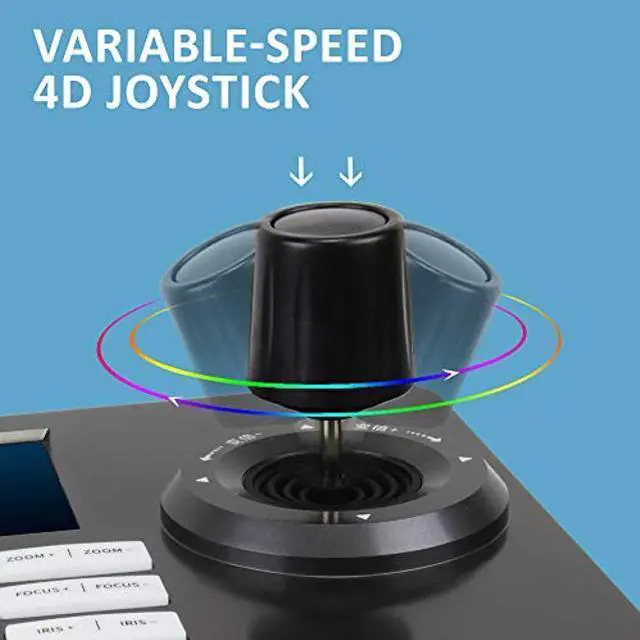

4, Support 4D joystick control ptz function
5, Support preset patrol pattern and AB scan

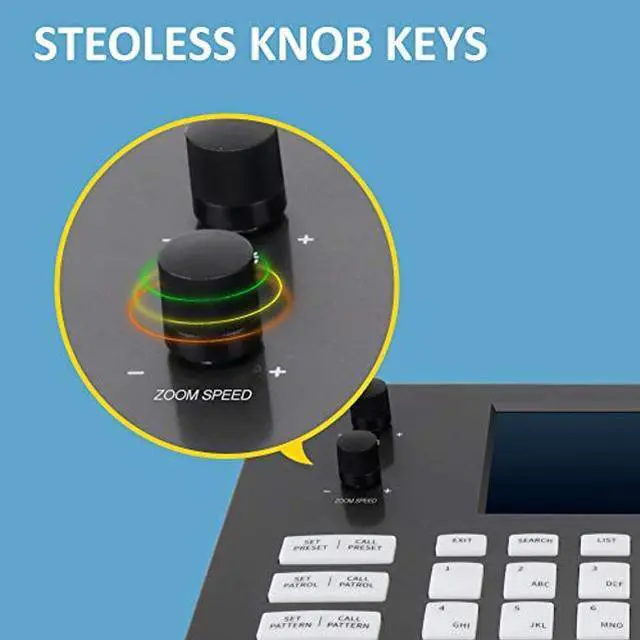

6, Support Knob for zoom and control speed
Specification:
Model: HE003
System: Linux
Max equipment: 999
Decoding: H. 265/H. 264
Resolution: Max 1080P for one channel (1920x1080)
Protocol: Onvif
Joystick: 4D
Output: RS422 (Reserved) /RS232 (Development Port) /RJ45
Accessories: Knob/Silicone button
Beep: on/off
Screen: TFT LCD 800x480
Power consumption: less than 5W
Power: DC12V-2A
Work Temperature: -10~55 / 14degF~131degF
Work humidity: 20%~80%frostless
Storage temperature: -10~60 / 14degF~140degF
Storage humidity: 0~90%frostless
Size: 297mmX210mmX 118.7 mm
Weight: 890g
Note: The RS422 and RS232 does not function as it is used to develop the new function in the future.
1, Support network control with independent IP address.
2, support ONVIF, POE, IE web setting
3, 5 inch industrial LCD screen, resolution 800 * 480, image decoding, real-time monitoring
4, Support 4D joystick control ptz function
5, Support preset patrol pattern and AB scan
6, Support Knob for zoom and control speed
Specification:
Model: HE003
System: Linux
Max equipment: 999
Decoding: H. 265/H. 264
Resolution: Max 1080P for one channel (1920x1080)
Protocol: Onvif
Joystick: 4D
Output: RS422 (Reserved) /RS232 (Development Port) /RJ45
Accessories: Knob/Silicone button
Beep: on/off
Screen: TFT LCD 800x480
Power consumption: less than 5W
Power: DC12V-2A
Work Temperature: -10~55 / 14degF~131degF
Work humidity: 20%~80%frostless
Storage temperature: -10~60 / 14degF~140degF
Storage humidity: 0~90%frostless
Size: 297mmX210mmX 118.7 mm
Weight: 890g
Note: The RS422 and RS232 does not function as it is used to develop the new function in the future.
