CERRXIAN PCIe Firewire Card, PCI-E X1 to IEEE 1394 3X 6Pin & 1x 4Pin with Low Profile Bracket for Video,Photo

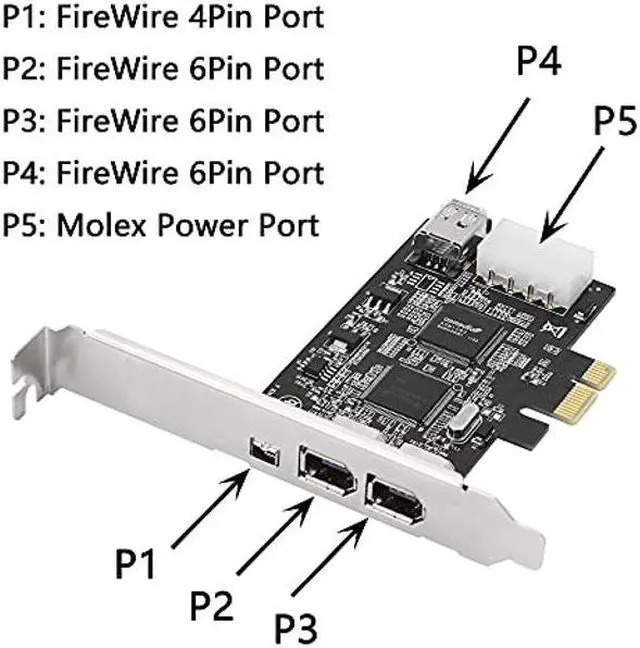

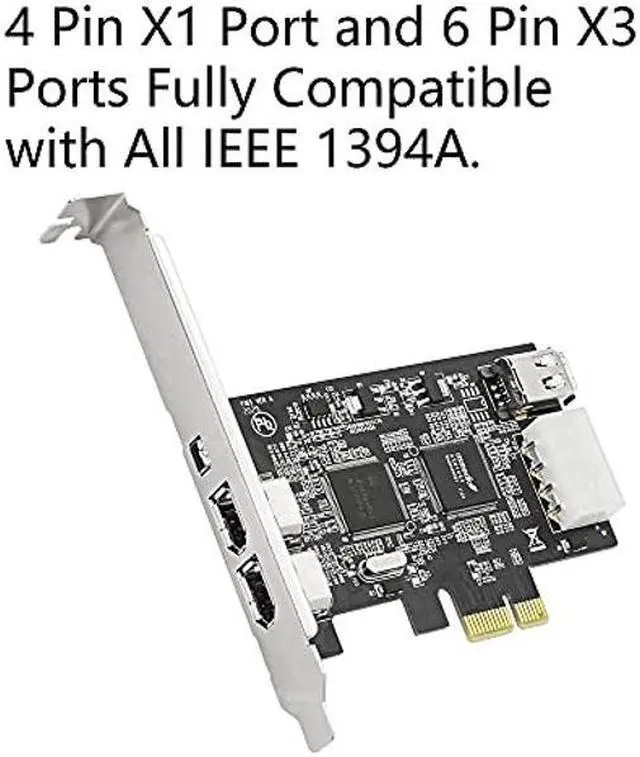

- PCIe Firewire Card is a multifunctional PCI Express bus interface.It allows users add 4X 1394A (3X 6Pin and 1X 4Pin) ports on Windows PCs or Servers for Video,Photo and more 1394A device data transfer.
- Suitable for all typesSuitable for all types of FireWire 800 (1394b) and 1394a devices, including portable hard drives, DV camcorders, digital cameras, CD-RW/DVD-ROM drives and other audio/video devices. of FireWire 800 (1394b) and 1394a devices, including portable hard drives, DV camcorders, digital cameras, CD-RW/DVD-ROM drives and other audio/video devices.

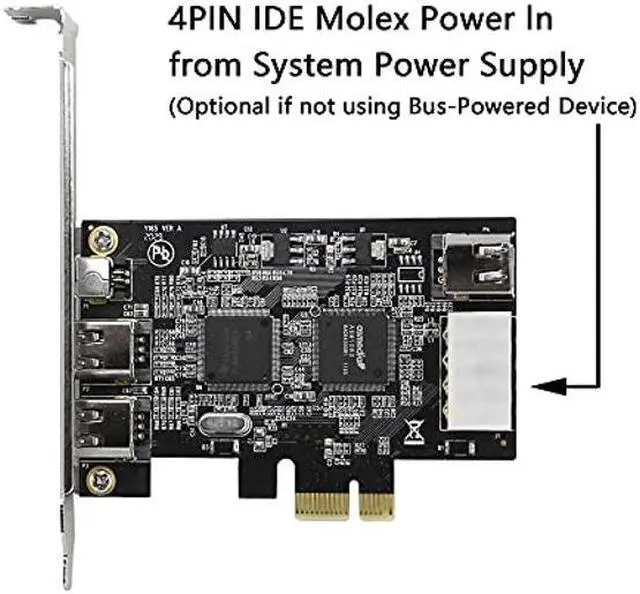

- Built-in IDE 4-pin, can be connected to the system power supply to provide additional power.
- Compliant with IEEE 1394,Specifications V1.0 and V1.1.Supports data transfer rates of 100, 200, 400 and 800 Mbps.
- Compatible with Windows 2000 / XP / Server 2003 SP1 or higher / Vista / Win 7 / Win 8.x, Linux.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Feature:

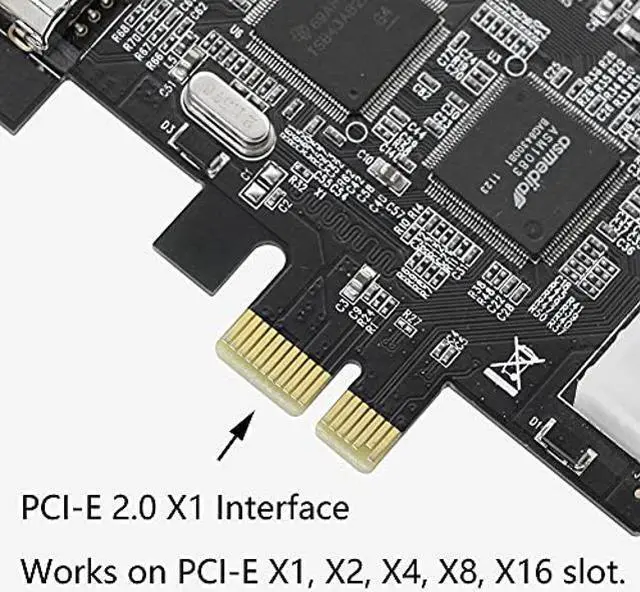

Fully comply with PCI Express basic specification, revision 1.1
Use 100MHz differential PCI Express common reference clock or 125 MHz single-ended reference clock
Fully support IEEE P1394b-2002 regulations
Fully comply with IEEE Std 1394-1995 for high-performance serial bus and IEEE Std 1394a-2000
Fully comply with the 1394 open host controller interface specification, revision 1.1 and revision 1.2 draft
IEEE Std 1394b fully compatible cable ports:
100M Bits/s, 200M Bits/s, 400M Bits/s and 800M Bits/s
The cable port monitors the line conditions of the active connection with the remote node
Wired power presence monitoring
EEPROM configuration supports loading the global individual ID of 1394 Fabric
Support D1, D2, D3hot
When the packet activity on the PCI Express link is idle, when using the L0 and L1 states, the active state link power management
Can save power
8 3.3V, multi-function, general I/O terminals

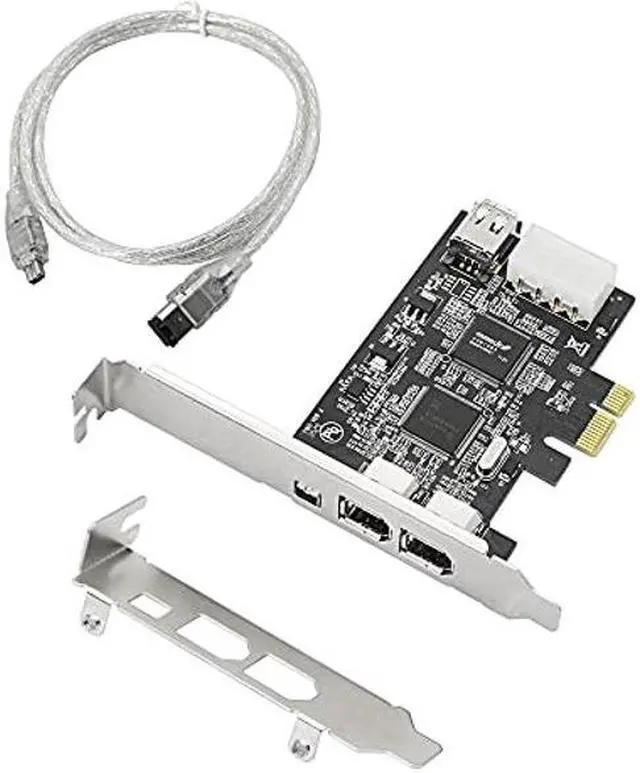

Package Include:
1 x Controller Card
1 x Firewire Cable
1 x Low profile bracket
Fully comply with PCI Express basic specification, revision 1.1
Use 100MHz differential PCI Express common reference clock or 125 MHz single-ended reference clock
Fully support IEEE P1394b-2002 regulations
Fully comply with IEEE Std 1394-1995 for high-performance serial bus and IEEE Std 1394a-2000
Fully comply with the 1394 open host controller interface specification, revision 1.1 and revision 1.2 draft
IEEE Std 1394b fully compatible cable ports:
100M Bits/s, 200M Bits/s, 400M Bits/s and 800M Bits/s
The cable port monitors the line conditions of the active connection with the remote node
Wired power presence monitoring
EEPROM configuration supports loading the global individual ID of 1394 Fabric
Support D1, D2, D3hot
When the packet activity on the PCI Express link is idle, when using the L0 and L1 states, the active state link power management
Can save power
8 3.3V, multi-function, general I/O terminals
Package Include:
1 x Controller Card
1 x Firewire Cable
1 x Low profile bracket
