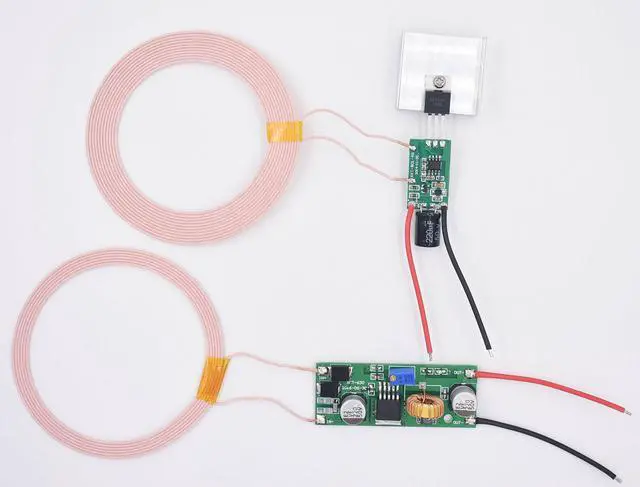

Taidacent 5V5A High Current 24V Low Voltage Transmitting Wireless Charging Module DC Remote Power Supply Module
- This module is a DC remote power supply module, and the circuit is simple and practical.
- Transmitting voltage: 24V; Transmitter module size: 17*28mm; Transmitting coil: inner diameter 70mm outer diameter 88mm thickness 1.3mm.
- Receiver module size: 25mm*64mm*16mm;Receiver coil size: inner diameter 70mm outer diameter 83mm thickness 1.3mm.
- Output of Receiving Module: 5V5A at 8mm; 5V4A at 9mm; 5V4A at 10mm.
- This module can not be used below 8mm! otherwise it will cause damage to the components!
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Inductive Distance: Output of
Receiving Module: 5V5A at 8mm Output of
Receiving Module: 5V4A at 9mm Output of
Receiving Module: 5V4A at 10mm Output of
Receiving Module: 5V 3.9A at 11mm Output of
Receiving Module: 5V3A at 12mm Output of
Receiving Module: 5V 2.5A at 15mm Output of
Receiving Module: 5V 1.5 mA at 18mm Output of
Receiving Module: 5V 1.5 mA at 20mm Output of
Receiving Module: 5V800mA at 25mm Output of
Receiving Module: 5V600mA at 30mm Output of
Receiving Module: 5V200mA at 40mm
Note: This module can not be used below 8mm! otherwise it will cause damage to the components!
Receiving Module: 5V5A at 8mm Output of
Receiving Module: 5V4A at 9mm Output of
Receiving Module: 5V4A at 10mm Output of
Receiving Module: 5V 3.9A at 11mm Output of
Receiving Module: 5V3A at 12mm Output of
Receiving Module: 5V 2.5A at 15mm Output of
Receiving Module: 5V 1.5 mA at 18mm Output of
Receiving Module: 5V 1.5 mA at 20mm Output of
Receiving Module: 5V800mA at 25mm Output of
Receiving Module: 5V600mA at 30mm Output of
Receiving Module: 5V200mA at 40mm
Note: This module can not be used below 8mm! otherwise it will cause damage to the components!
