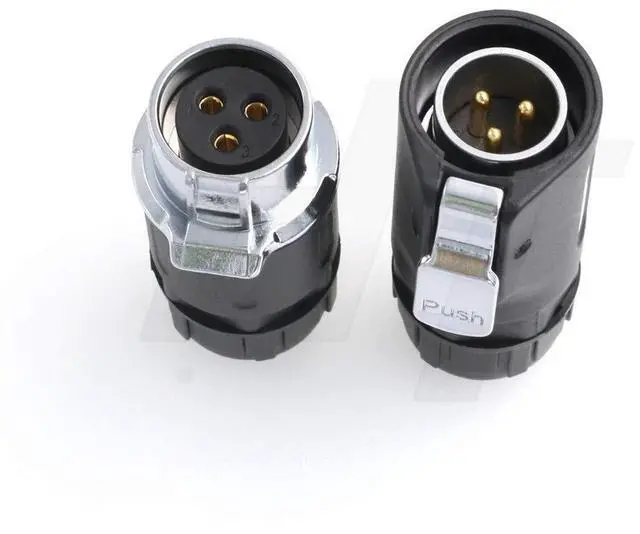

HangTon LP20 3 Pin Connector Bulkhead Waterproof Quick Disconnect 30 Amp Power Male Female Cable Plug Receptacle (Cable Connector)

Be the first to review this product...
  • Cable Range: 6-12mm, Wire Size: 4.17mm or 11AWG, Contact Diameter: 3mm.
  • Rated Voltage/Current: AC 500V/30A, Resistance: 1m
  • For machines & automotive & LED & marine equipment, lighting system, indoor & outdoor electrical equipment
  • Reliable, watertight, dust-proof, explosion-proof, deformation-proof
  • Bayonet coupling, quick disconnect, solder termination, cable plug & receptacle.
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now
Features: In the harsh environment can provide a safe and reliable connection. LP20 (Bayonet) connector is ideal for any equipment for watertight, indoor / outdoor applications, such as outdoor electric tools or appliances, medical device, communications, marine or automatic equipment, under water equipment, outdoor led lighting, outdoor LED panels, solar energy system, outdoor security cameras, transformer, control box, machines equipment, packing machines, for data and power distribution.

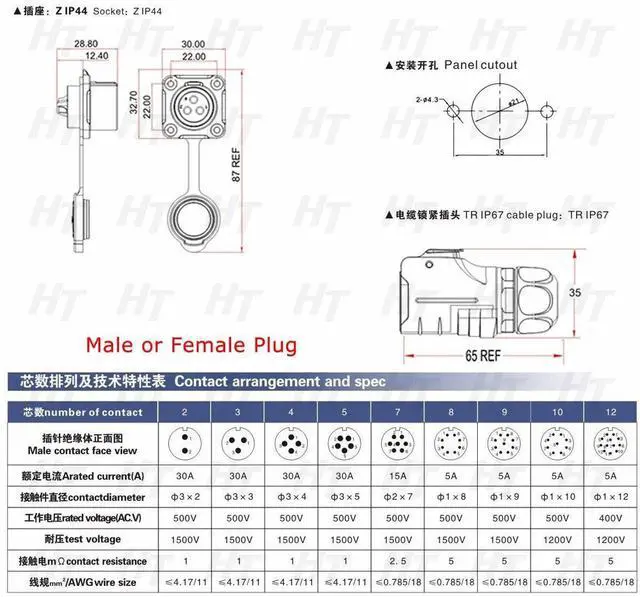

Specifications

:
LP20:
Model: 3
PinMaterial: PlasticIP
Rating: IP67Panel
Cutout Diameter: 20mmCable
Outer Diameter Range: 8pin
~ 12pin: 4-6mm, 2pin
~ 7pin: 6-12mmCoupling
Type: Bayonet
CouplingShell: Thermoplastic Nylon66,
Fire Resistance: V-0Insert
Material: Thermoplastic PPS max temperature 260Contact
Material: Brass with
Gold PlatingTermination: SolderMating
Cycle: >500 timesTemperature
Range: -25~+85Package
Includes: 1 x Cable Plug with Male Pins1 x Cable Receptacle with Female Pins1 x Waterproof / Dustproof Cap
