Dual PCIe 3.1 2.5GBase-T Network Adapter with Intel I225-V 2500/1000/100Mbps PCI Express Gigabit Ethernet NIC Card RJ45 LAN Controller for Windows 10/11 with Low Profile Bracket

Description
This PCI Express controller with Base-T copper networking interface, provides compact, single-port integrated multi-gigabit (up to 2.5G ) -MDI (Copper) standard IEEE 802.3 Ethernet interface for 2500BASE-T, 1000BASE-T, 100BASE-TX, 10BASE-TE connections (IEEE 802.3, 802.3 u, 802.3 ab). The Ethernet Controller I225 is designed for use on any mobile, desktop, workstation, value-server, or industrial designs that have critical space constraints. The I225 can also support Intel vPro technology onspecific Intel platforms and chipsets.
The Ethernet Controller I225 also supports the latest time sensitive networking (TSN) features, along with best in class power management and Operating System Support
Specification
Compliant with PCI Express specification Revision 3.1 (5GT/s)
MDI (Copper) standard IEEE 802.3 Ethernet interface up to 2.5G b/s
Complies with single port 1GbE RJ45 port (copper)
Complies with the MDI standard IEEE 802.3 Ethernet interface for 2500BASE-T, 1000BASE-T, 100BASE-TX, 10BASE-TE application( IEEE 802.3 bz, IEEE 802.3 ab, IEEE 802.3 u and IEEE 802.3 )
IEEE 802.3 Auto-negotiator
IEEE 802.3 x and IEEE 802.3 z compliant flow control support with software-controllable RX thresholds and TX pause frames
Automatic cross-over detection function(MDI/MDI-X)
IEEE 1588 Protocol and 802.1AS implementation
Supporting Time Sensitive Networking (TSN) Capabilities
Support IEEE 802.3 az-Energy Efficient Ethernet (EEE), EEE is supported for 2500BASE-T, 1000BASE-T and 100BASE-TX.
TCP/UDP, IPv4 checksum offloads(Rx/Tx)
Transmit Segmentation offloading (TSO) (IPv4, IPv6)
Support for packets up to 9.5KB Jumbo Frames
PXE Support: Linux boot via PXE or BOOTP, Windows Deployment Services, or UEFI

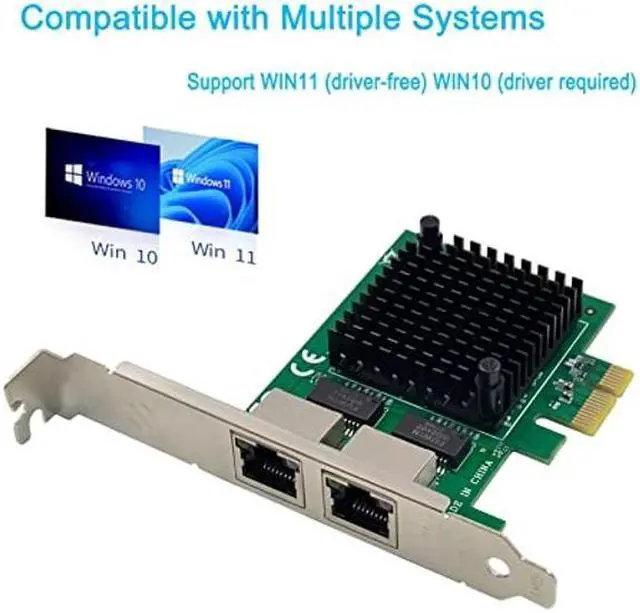

Drivers for WindowsR10 32 or 64bit
Package content
1 x PCIe I225-V Single- 2.5G Network card
1 x User's Manual
1 x CD

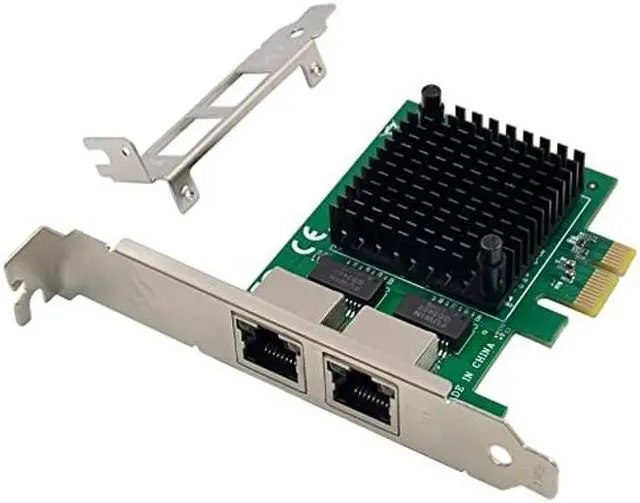

1 x Low profile bracket
