Adeept Raspberry Pi Robot HAT Kit, Smart Robot Car Driver, Robot Expansion Board Support Raspberry Pi 4 Model B 3B+ 3B 2B B+, L298P DC Motor Drive, PCA9685 16 Channel 12-Bit PWM Servo Motor Driver

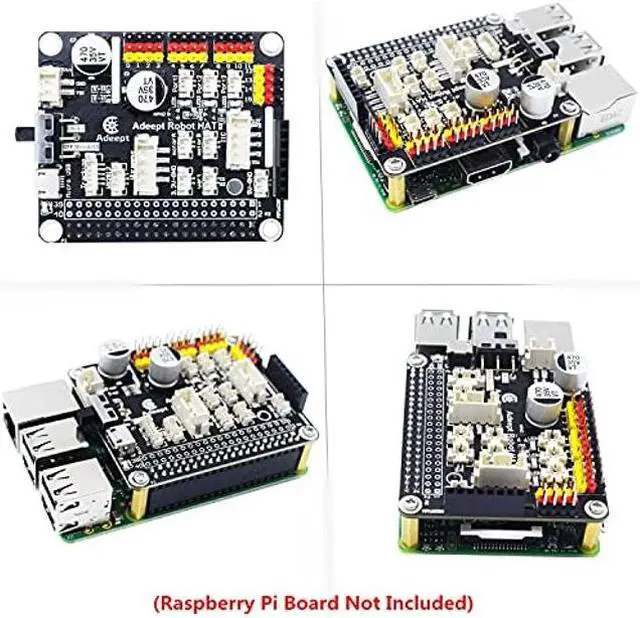

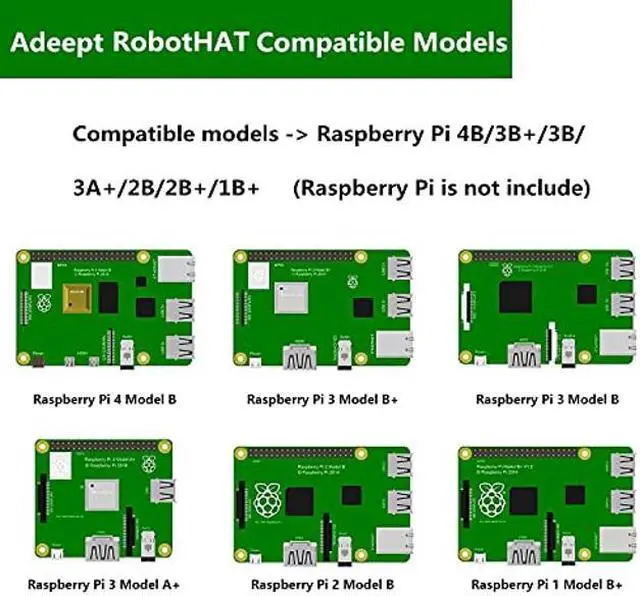

- Adeept Robot HAT is a robot/smart car expansion board designed for Raspberry Pi, it is compatible with Raspberry Pi 4 Model B, 3B+/3B/2B/B+.

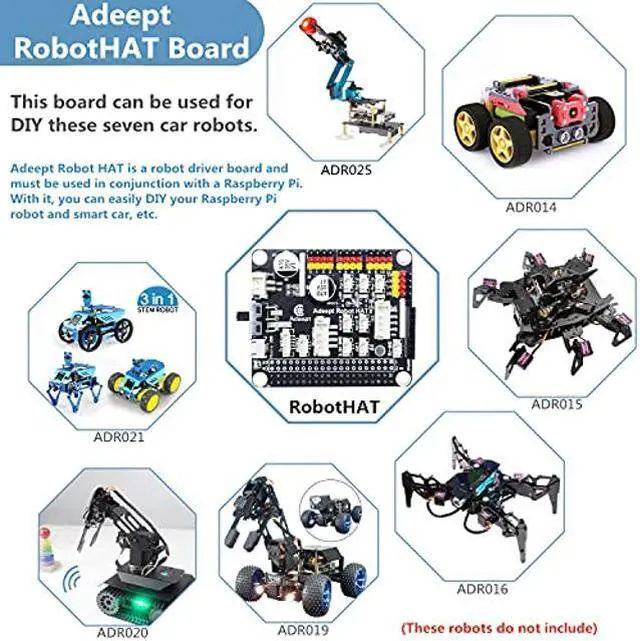

- Adeept Robot HAT must be used in conjunction with the Raspberry Pi. You can use it to build your Raspberry Pi-based smart car or robot.

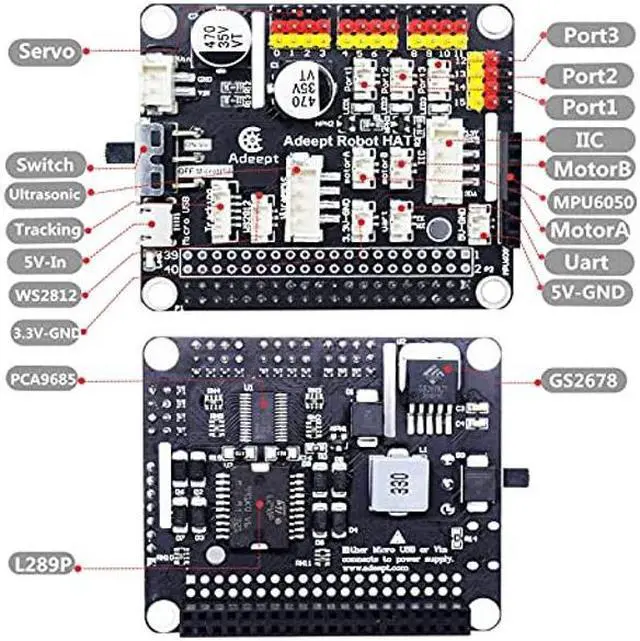

- Adeept Robot HAT integrates a DC-DC step-down circuit based on GS2678, which can reduce the input voltage to 5V to power the Raspberry Pi; it integrates a DC motor drive circuit based on L298P, which can drive two DC motors; it also integrates a 16-channel PWM servo drive circuit based on PCA9685, which can control 16 servos.
- This kit contains cables suitable for each interface, so you don't need to buy cables anymore.
- You can search for 'ADM099' in the [Learn] section of Adeept official website to download Robot HAT circuit schematics and sample codes, or you can send an email to the Adeept technical support team for help.
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Technical Parameters:
Input Voltage: DC 7-12V
Output Voltage: DC 5V
Communication Interface: IIC
Size: 65*56mm

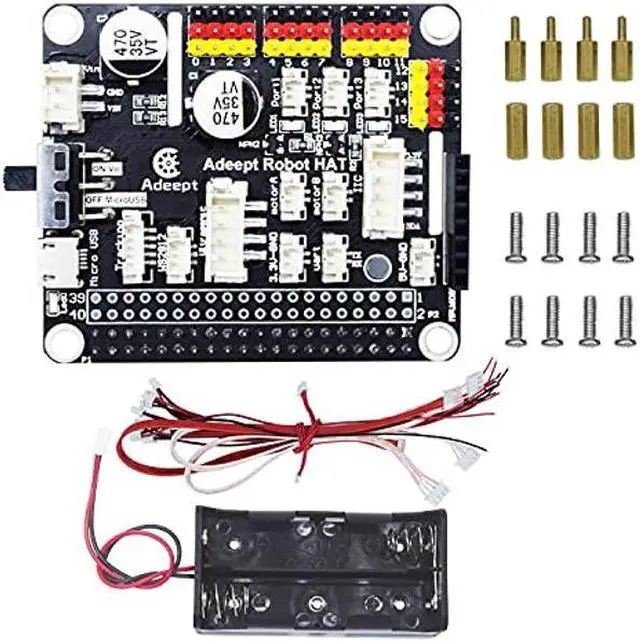

Package Included:
1x Adeept Robot HAT
1x Battery Holder
8x M 2.5 *10+6 Copper Pillar
8x M 2.5 *8 Screw
1x A set of connecting cables
Input Voltage: DC 7-12V
Output Voltage: DC 5V
Communication Interface: IIC
Size: 65*56mm
Package Included:
1x Adeept Robot HAT
1x Battery Holder
8x M 2.5 *10+6 Copper Pillar
8x M 2.5 *8 Screw
1x A set of connecting cables
