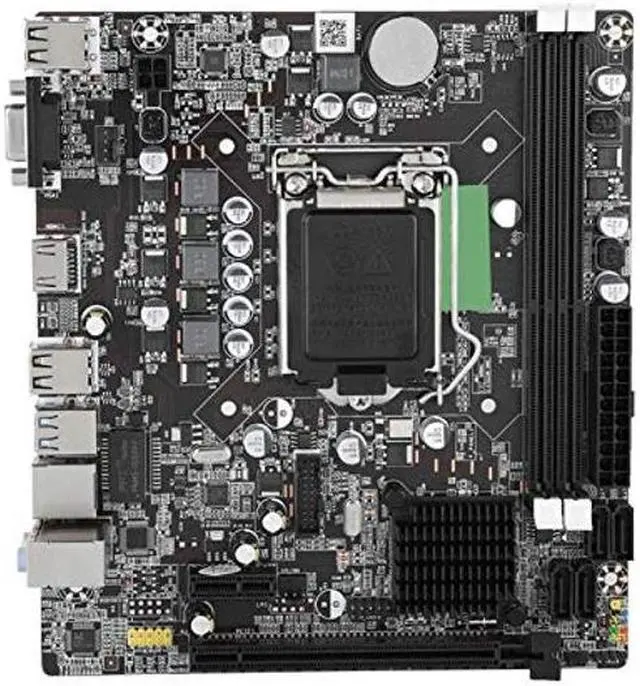

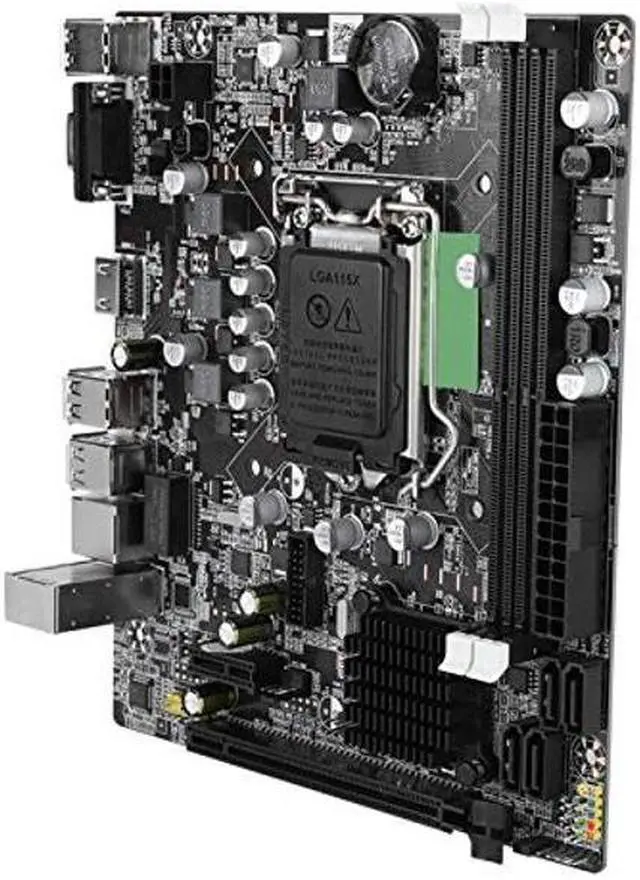

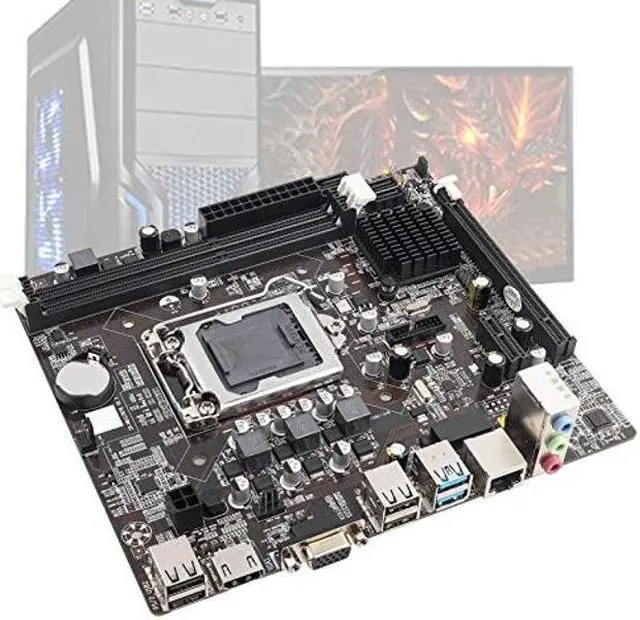

LGA 1155 Motherboard,Desktop Computer Motherboard USB3.0 SATA Mainboard,Support VGA + HDMI Dual Output for Intel B75

Specification:
Motherboard chip:
Integrated sound card / network card
Main chipset: for Intel B75 series
Audio chip: integrated 6-channel audio chip
NIC chip: integrated RTL8105E
Processor specifications:
CPU socket: LGA 1155
CPU type: i3 i5 and i7 series
Memory specifications:
Memory type: DDR3 1066/1333/1600MHz desktop memory
Memory slot: 2*DDR3 DIMM
Maximum memory support 8G*2
Expansion slot:
1*PCI-Ex16 graphics card slot
1*PCI-Ex1 slot
2*USB 2.0 slot (1 set)
2*USB 3.0 slot (1 set)
3*SATA 2.0 interface
1*SATA 3.0 interface
I/O interface:
USB universal interface
1*RJ45 network interface
2*USB 2.0 interface
2*USB 3.0 interface
Audio port
Other parameters:
Power connector 4 pin, a 24-pin power connector
Power supply mode 3 items
Size: Approx. 19 x 17 x 4cm / 7.5 x 6.7 x 1.6 in
Weight: approx. 542g

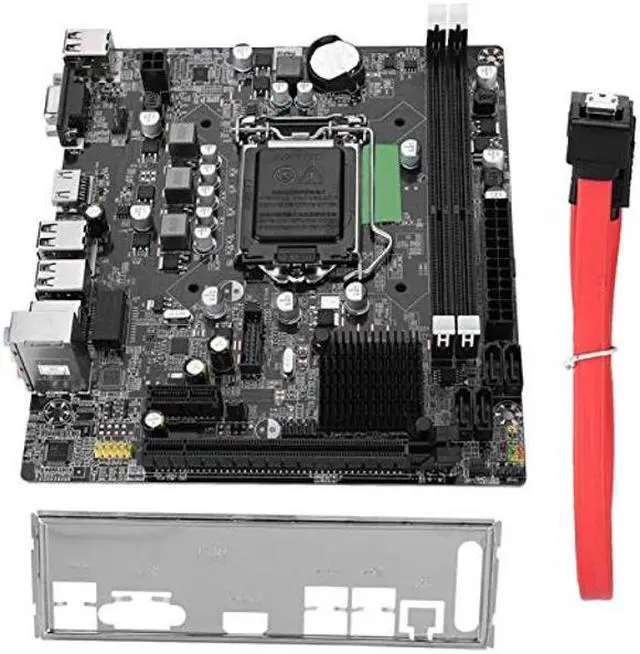

Package list:
1 x Motherboard
1 x SATA cable
1 x Baffle

Note: 1. It is recommended that professionals perform installation. 2. When there is no display, no boot, no picture, no network card, no sound card, etc. after the normal installation of the motherboard, it is recommended that the customer restore the factory settings (see the steps for specific methods) or find an eraser to wipe the golden finger of the memory CPU graphics card (Motherboard contact part) to improve the contact environment.
Factory Reset Steps:

1. Shut down

2. Unplug the power cord connected to the motherboard, 24 wires and 4 wires must be removed

3. Remove the battery

4. Reverse the battery

5. Wait 10 seconds

6. Install the battery normally

7. Connect power

8. Boot
