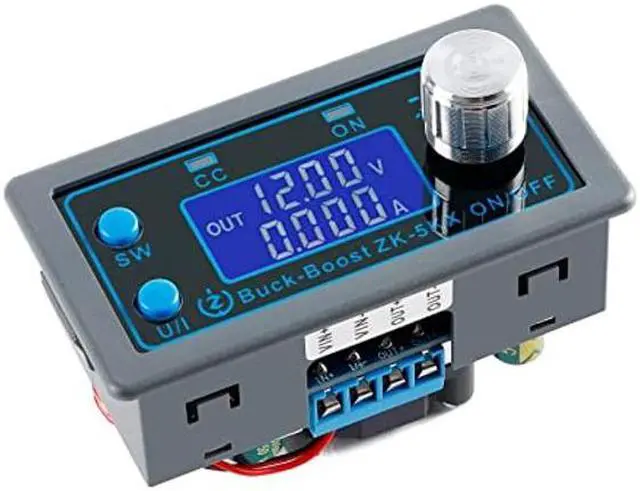

JESSINIE ZK-5KX DC-DC Buck Boost Voltage Converter CC CV 0.6-36V Adjustable Voltage Power Supply Module Power Converter Digital LCD Display Solar Battery Charging DC Voltage Regulator with Shell

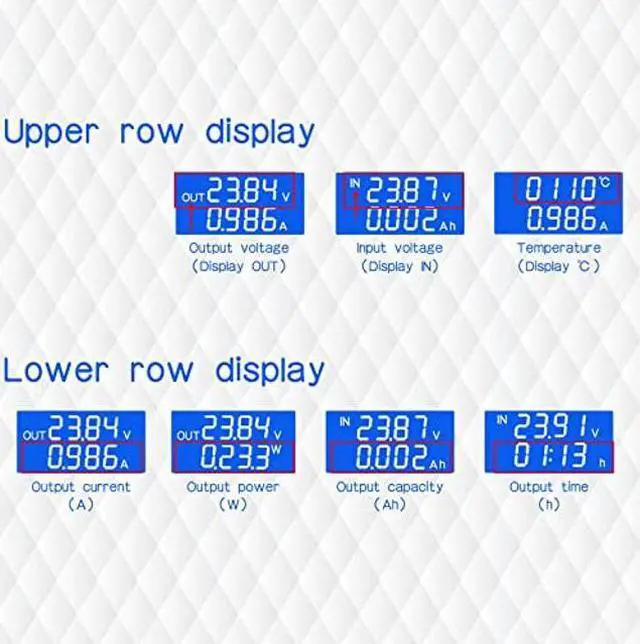

- ZK-5KX is equipped with a LCD display module, which can display input voltage/output voltage/output current/output power/output capacity/output time and other parameters
- Input voltage: 6.0-36V, output voltage: 0.6-36V, output current: 5A MAX Operating frequency: 120KHZ
- It has a variety of protection mechanisms, such as input anti-reverse connection, output anti-backflow, input under-voltage protection, output over-voltage protection, output over-current protection, output over-power protection, over-temperature protection, overtime protection, and over-capacity protection

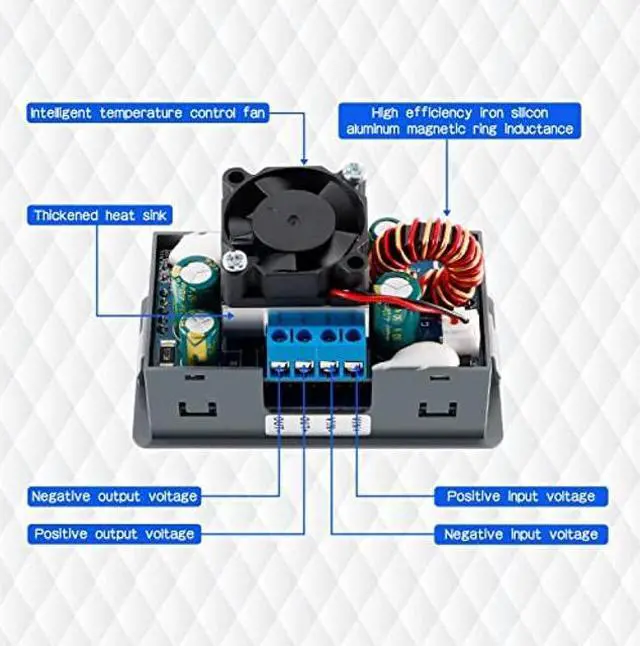

- Intelligent temperature control fan, automatic start and stop. When the temperature is greater than 50 or the current is greater than 1A, the fan will start automatically.

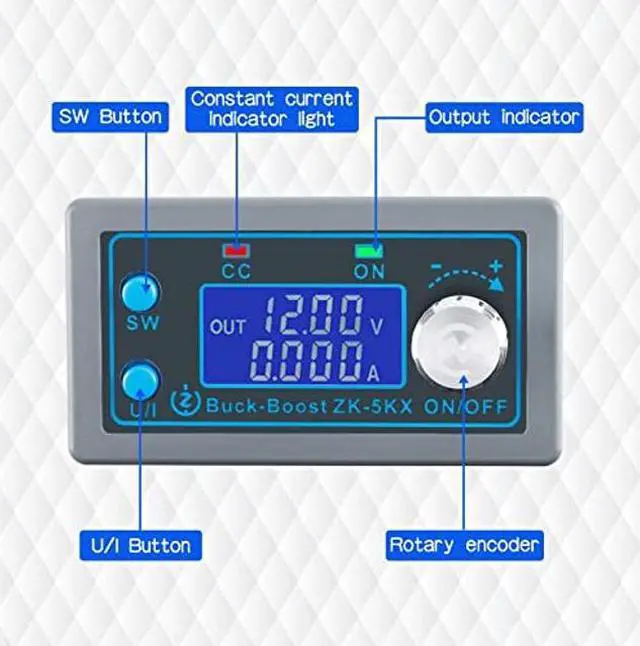

- Numerical control adjustment, accurate and fast, can boost and step down, can be used as an ordinary buck/boost module with multiple protection mechanisms, and can also be used as a DIY solar controller, high-power LED consta
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

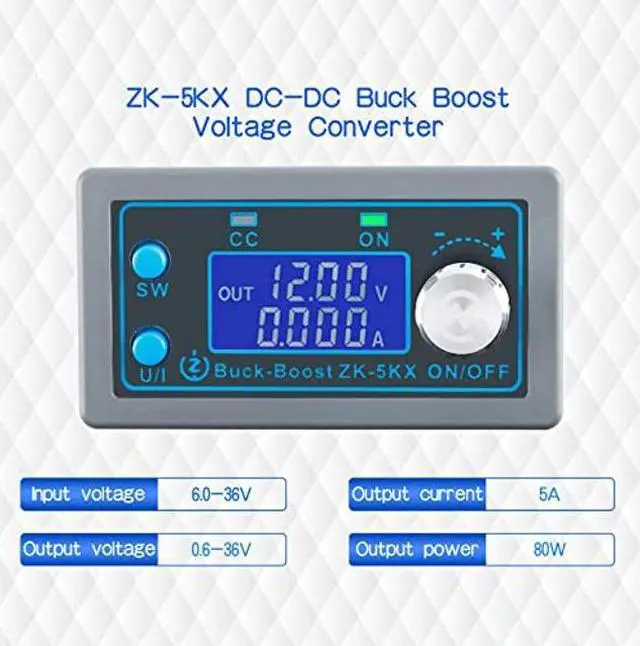

Product parameters:
Input voltage: 6.0 -36V
Output voltage: 0.6 -36V
Output current: 5A MAX
Output power: 80W
Voltage display resolution: 0.01V
Current display resolution: 0.001A
Operating frequency: 120KHZ
Conversion efficiency: about 88%
Soft start: Yes (very high power with load module may fail when starting)
Protection mechanisms:
Input anti-reverse connection;
Output backflow prevention;
Input undervoltage protection ( 5.8 -36V adjustable, default 5.8V )
Output overvoltage protection ( 0.6 -36V adjustable, default 36V)
Output overcurrent protection (0-5A adjustable, default 5A)
Output over-power protection (0-80W adjustable, default 80W)
Over-temperature protection (80-110 adjustable, default 110 )
Timeout protection (0-100h adjustable, closed by default)
Super capacity protection (0-60Ah adjustable, closed by default)
Note: After the product triggers the protection mechanism, the output will automatically turn off, the LCD screen will display the protection code, press any key to exit the protection interface
Anti-reverse connection protection at the input end, reverse connection will not burn;
The output terminal prevents backflow, and there is no need to add a backflow prevention diode when charging the battery;
The module can be set to turn on/off by default;
Has a variety of software protection mechanisms, and the protection threshold is adjustable. After the module operating parameters exceed the protection threshold, the output is automatically turned off.
The output ripple is small, with p-type filtering;
Thickened heat sink
Input voltage: 6.0 -36V
Output voltage: 0.6 -36V
Output current: 5A MAX
Output power: 80W
Voltage display resolution: 0.01V
Current display resolution: 0.001A
Operating frequency: 120KHZ
Conversion efficiency: about 88%
Soft start: Yes (very high power with load module may fail when starting)
Protection mechanisms:
Input anti-reverse connection;
Output backflow prevention;
Input undervoltage protection ( 5.8 -36V adjustable, default 5.8V )
Output overvoltage protection ( 0.6 -36V adjustable, default 36V)
Output overcurrent protection (0-5A adjustable, default 5A)
Output over-power protection (0-80W adjustable, default 80W)
Over-temperature protection (80-110 adjustable, default 110 )
Timeout protection (0-100h adjustable, closed by default)
Super capacity protection (0-60Ah adjustable, closed by default)
Note: After the product triggers the protection mechanism, the output will automatically turn off, the LCD screen will display the protection code, press any key to exit the protection interface
Anti-reverse connection protection at the input end, reverse connection will not burn;
The output terminal prevents backflow, and there is no need to add a backflow prevention diode when charging the battery;
The module can be set to turn on/off by default;
Has a variety of software protection mechanisms, and the protection threshold is adjustable. After the module operating parameters exceed the protection threshold, the output is automatically turned off.
The output ripple is small, with p-type filtering;
Thickened heat sink
