Mini Industrial Gigabit Ethernet PoE+ Switch 4-Port 10/100/1000BASE-T + 1-Uplink Port Auto-MDI/MDI-X Auto-Negotiation 10/100Mbps Half/Full Duplex &1000Mbps Full Duplex 12~48VDC Wide Range Power Input

Be the first to review this product...

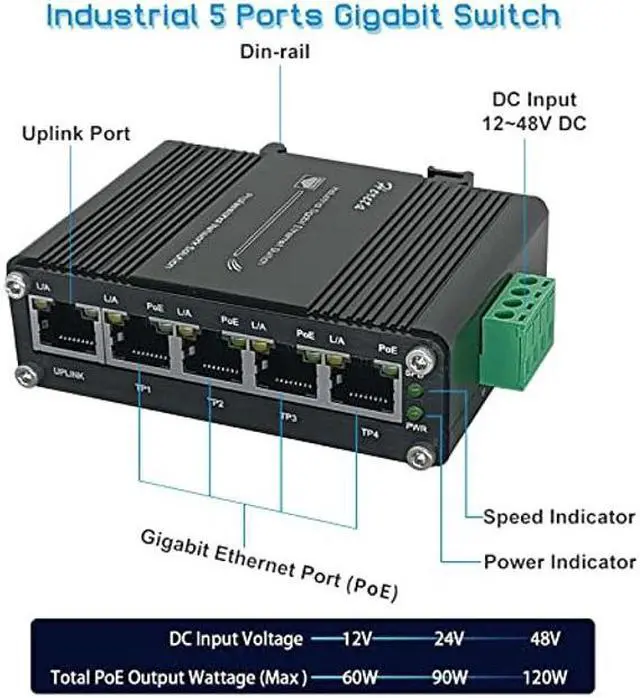

  • Interface: Gigabit Ethernet Unmanaged PoE+ Switch is equipped with 4 10/100/1000BASET RJ45 ports & 1 Uplink Port,RJ45 ports support auto-negotiation, auto MDI/MDIX, full/half-duplex(10/100Mbps half/full duplex and 1000Mbps full duplex)
  • Wide Input: The Ethernet Switch supports 12~48V DC(Terminal Block) power input, Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
  • Two Installation Methods: The Gigabit Network Switch come with 35mm din-rail mounting bracket and wall mount accessory, supports Din-Rail & Wall Mount Installation

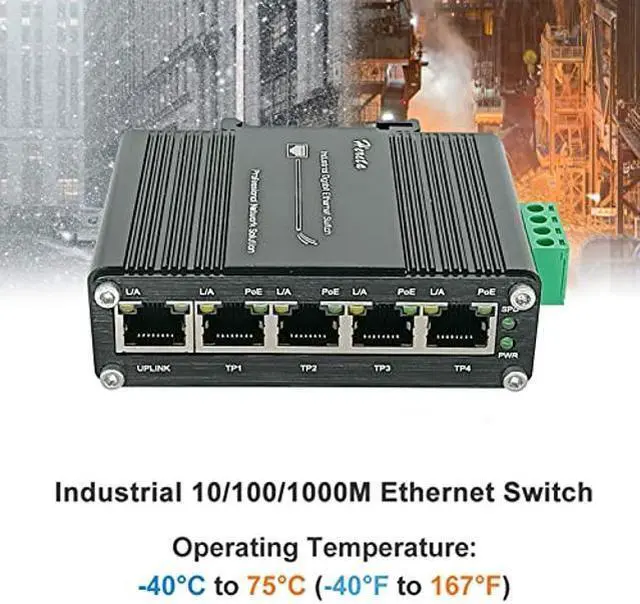

  • Industrial Grade Quality : The Hardened Industrial Switch is made of Aluminum Case, Dustproof IP40, With reliable and simple operation against vibration and shock, and wide operation temperature range (- 40degF - 176 degF) for harsh environments
  • Complies with Industry Standards: Our Network Fiber Optical Switch Complies with IEEE 802.3az Energy Efficient Ethernet (EEE). At the same time, it also supports 802.
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now
This unmanaged industrial Ethernet PoE switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.
