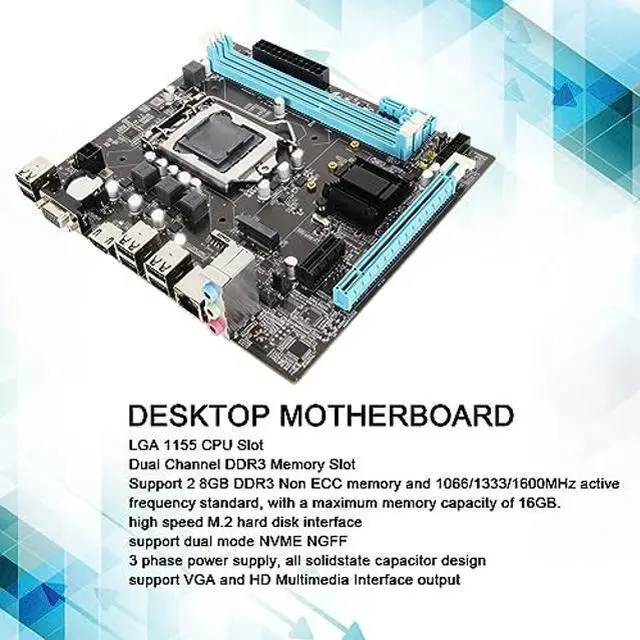

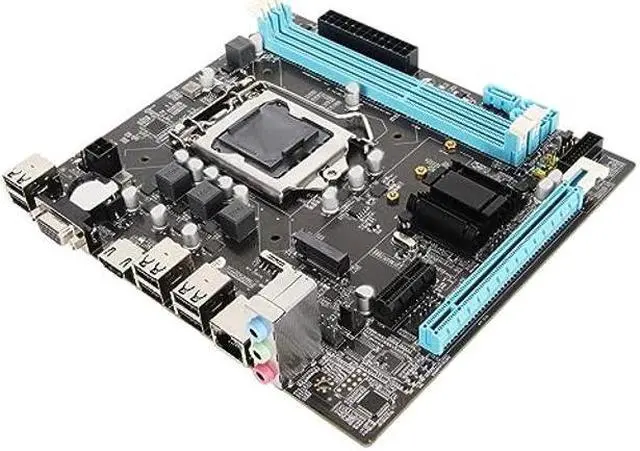

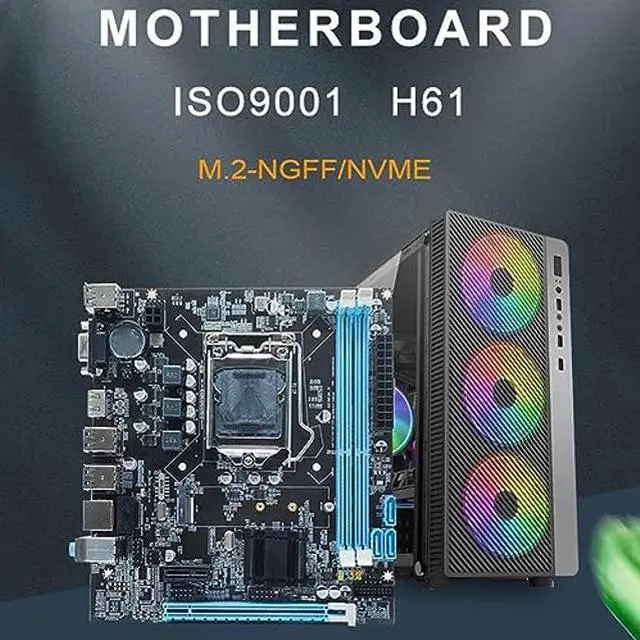

Micro ATX Motherboard for LGA1155 Socket with DDR3 RAM, M.2 NVMe NGFF, 3 Phase Power, VGA HD Output

Be the first to review this product...
  • [EASY CPU INSTALLATION] - This Micro ATX motherboard features a LGA 1155 CPU slot that supports i3/i5/i7, Pentium, and Celeron series processors. Compatible with popular CPUs like i7 2600k, i5 2500s, and more.
  • [HIGH SPEED MEMORY] - Take advantage of the dual channel DDR3 support, allowing up to 16GB of memory capacity. Supports 1066/1333/1600MHz active frequency standard for fast and efficient performance.
  • [FLEXIBLE STORAGE OPTIONS] - Equipped with 42.0 ports, this motherboard offers ample storage possibilities. Also includes an M.2 NVMe NGFF slot with jumper wire, supporting both high and low speed PCIe hard disk switch and SATA2.0 channel.
  • [STABLE POWER DELIVERY] - With a 3 phase power supply design and all solid-state capacitor construction, this Micro ATX motherboard ensures stable operation for all connected accessories. It also features a 24+4pin power socket for easy connectivity.
  • [VERSATILE CONNECTIVITY] - This DDR3 motherboard supports VGA and HD Multimed
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now
Spec:

Item Type: Desktop Motherboard
Material: Printed Circuit Board
Battery: 240mAh CR2032 Battery (Inbuilt Battery Included)
CPU Slot Type: LGA 1155 I3/I5/I7/for Pentium/for Celeron Series CPU
Storage: 42.0 (3GB/s) Ports
LAN: 10/100Mbps LAN

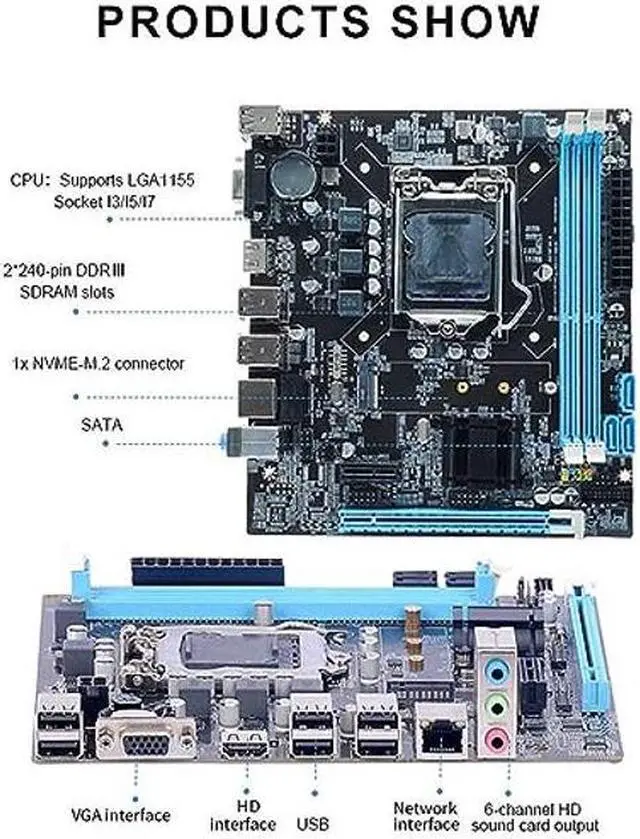

Input and Output Interface: 6 x USB 2.0, 1 x VGA Port, 1 x HD Multimedia Interface Port, 1 x RJ45 Port, 1 x 3 in 1 Audio Port (Line Input/Line Output/Microphone Input)
Onboard Interface: 1 x 24Pin ATX Power Connector, 1 x 4Pin ATX 12V Power Connector, 2 x USB Port(Support 4 x USB 2.0 ), 1 x F Audio Connector, 1 x F Panel Connector, 1 x F Speaker Connector, 1 x Fan Connector, 1 x LPC Debug Connector

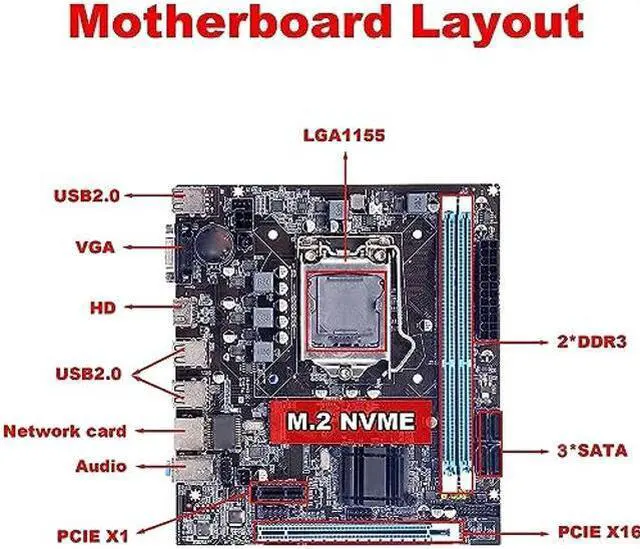

Expansion Slot: 1 x PCI Express X16 Slot, 1 x PCI Express X1 Slot, 1 x M. 2 NVMe/NGFF Slot
Integrated Audio: Onboard ALC 6 Channel HD Audio Codec, Provide Front Audio Interface, Front Stereo Mic
Structure: Micro ATX Structure (17 x 19cm / 6.7 x 7.5 in)

Package List:
1 x Desktop Motherboard

How To Use:
take out and use
