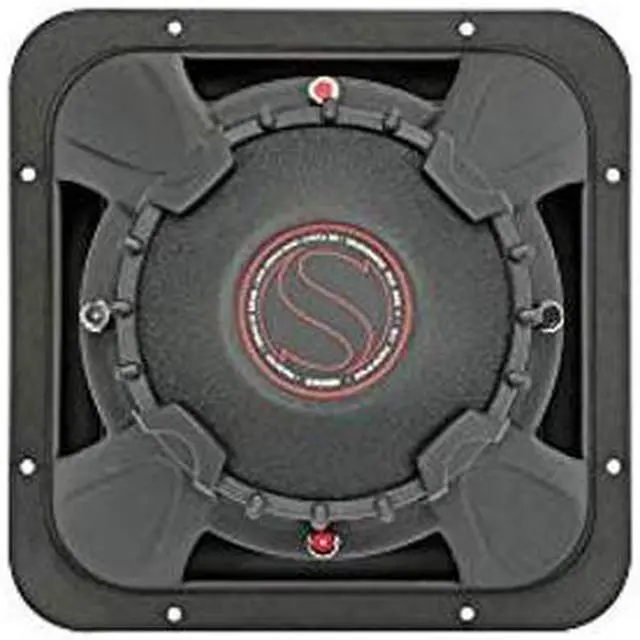

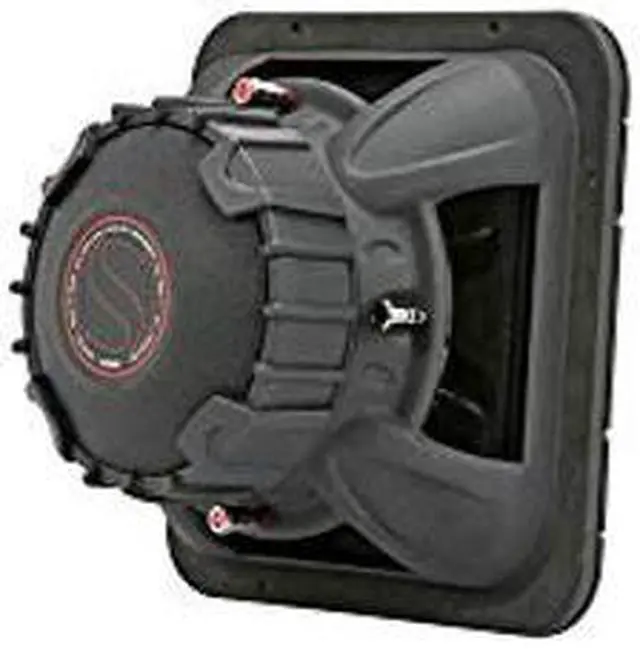

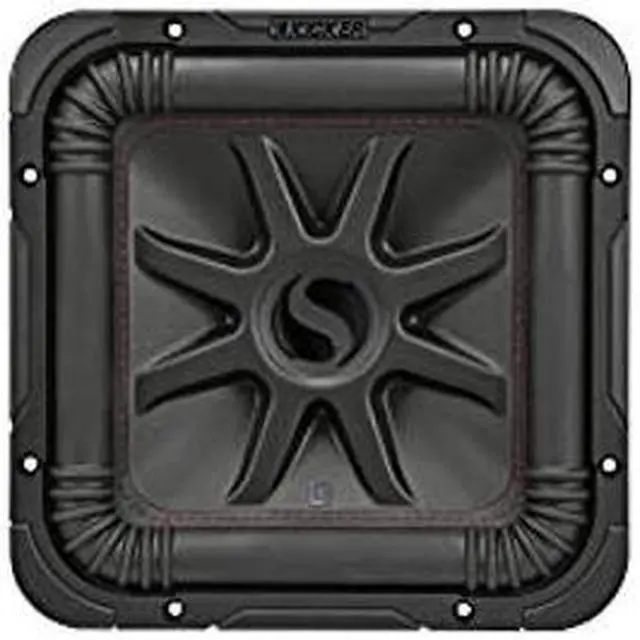

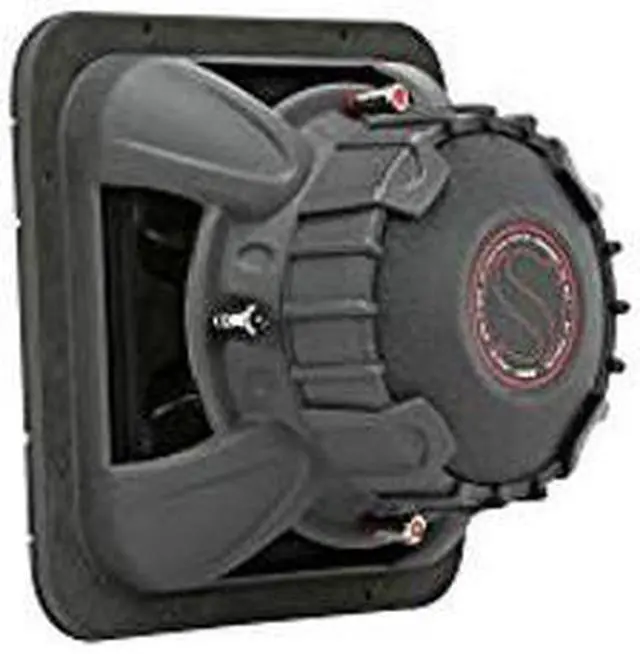

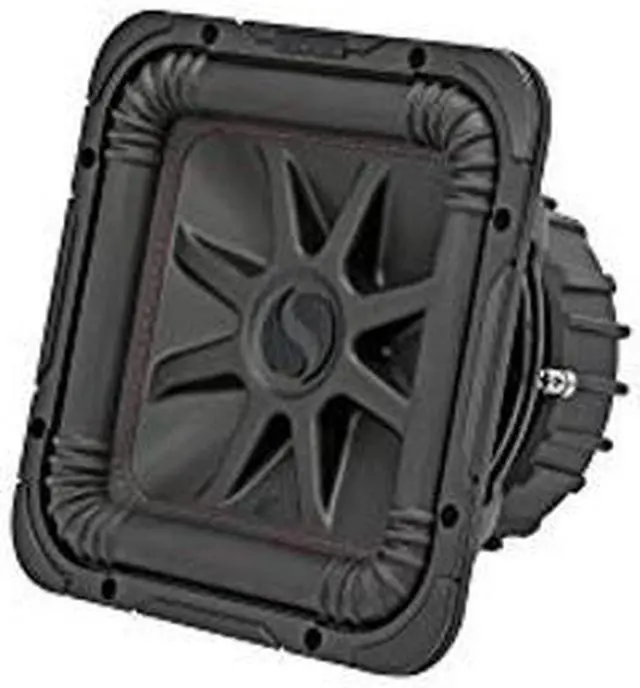

KICKER 45L7R102 10" 1000 Watt L7R Car Subwoofer, Solo-Baric Sub L7R102 DVC 2-Ohm

The 10-inch L7R Square Sub moves more air and delivers bigger bass than circular subs, so you get more bump out of every watt! It's simple - more cone means more air moves. KICKER's L7R Square Sub technology gives you up to 20% more cone area than a round sub. Full 360-degree back bracing keeps the entire cone strong and stable for smooth, distortion-free bass. The L7R's powerful motor delivers big bass, while utilizing next-level thermal management for optimal performance. The UniPlate solid pole piece & backplate construction ensure the sub stays cool, even under extreme power loads.

Dual voice coils come standard on all L7R models, for ultimate wiring flexibility. Get the highest possible power out of your amp. Dual two-Ohm Voice Coil Wrap Around Gasketing Patented Ribbed Corners Injection-Molded SoloKon Woofer 360-Degree Back Bracing UniPlate Back Plate And Pole Piece Bumped Back Plate Thick Tinsel Leads Large Ceramic Magnet Steel Basket With Spoke Design Nickel Plated Speaker Terminals The L7R 10-Inch Subwoofer works best with 500 watts of recommended power in a sealed or ported enclosure. See below for more details.

Specifications

SIZE [in, cm]: 10, 25
IMPEDANCE [Ohms]: 2
DVC POWER WATTS [peak/RMS]: 1000/500
SENSITIVITY [dB 1w/1m]: 85.9 MOUNTING DEPTH [in, cm]: 6-1/8, 15.7 MOUNTING DIAMETER [in, cm]: 9-5/16, 23.7 MIN SEALED BOX VOL [cu.
ft,
L]:. 66, 18.7 MAX SEALED BOX VOL [cu.
ft,
L]: 1, 28.3 MIN VENTED BOX VOL [cu.
ft,
L]: 1.25, 35.4 MAX VENTED BOX VOL [cu.
ft,
L]: 2.25, 63.7 What's in the
Box: 1 - 10" Subwoofer, 1 - install manual, 2 - Kicker stickers Due to continual developement, product, and specifications are subject to change without notice. Stillwater Designs and it's agents are not responsible for typographical errors.
