trueCABLE Cat5e RJ45 Pass Through Connectors, Unshielded (UTP) Modular Plug, UL Listed, EZ Crimp End, Gold Plated 3 Prong 8P8C, 100 Pieces
- PASS THROUGH DESIGN. No more load bars means less waste and frustration. The ability to see the conductors come through the front of the plug allows you to verify the correct TIA 568A or 568B color sequence which minimizes bad terminations.

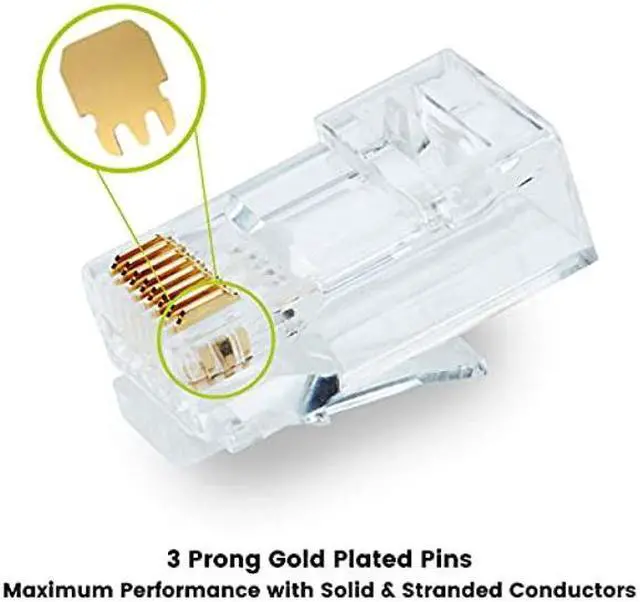

- MAXIMUM PERFORMANCE. Ensuring the best cable to plug combination, pass through plugs allow a push-pull method to seat the cable jacket as far into the plug as possible. Triple prong gold plated contacts. Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.

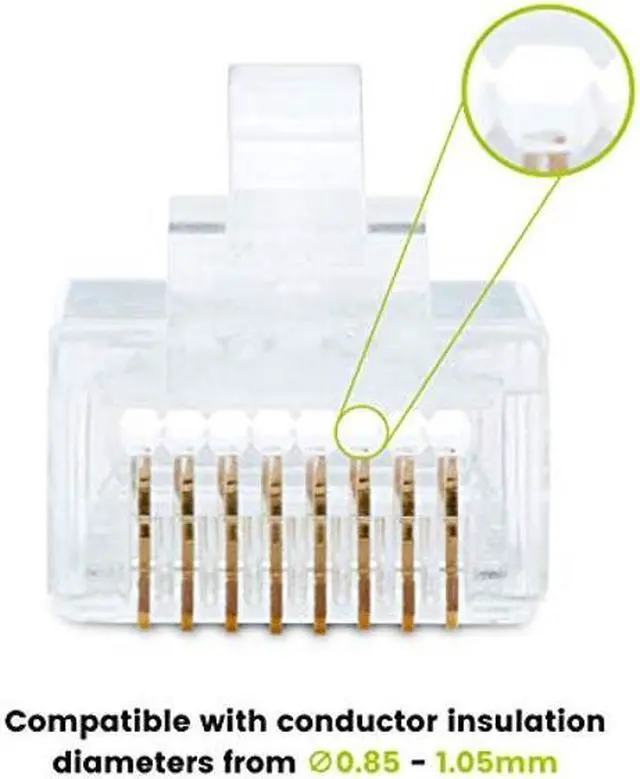

- VERSATILE. Works with 24 to 28AWG solid or stranded conductors. Suitable for cable jacket diameters up to 6.50mm and conductor insulation diameters from 0.85 - 1.05mm. Terminate with our All-In-One Crimp and Termination Tool (B089B4Z5RV).
- QUALITY GUARANTEED. ANSI/TIA 568 2.D tested and Certified with trueCABLE U/UTP Ethernet cable. ETL, UL, SGS (RoHS REACH / SVHC) Verified and Tested. FCC compliant.
- 100 PIECE RESEALABLE BAG. These transparent
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Looking for a Cat5e RJ45 plug that is:
- Hassle-Free
- Well documented
- ANSI/TIA 568 Certified
- ...tested with real cables in the real world by real installers?
Look no further, as you just found your plug!
Our Cat5e RJ45 plugs are designed to be used with unshielded (U/UTP) Ethernet cables, both stranded and solid conductors. The pass through design is where your frustration level will come down and success rate will increase. If you've ever dealt with the old style push-in or push-in with load bar plugs, then you know what we mean.
After stripping the cable jacket off and combing out the individual conductors, simply line up the conductors into the correct T568A or T568B color sequence and push them through the nose of the connector. Everything look good? If the wiring sequence is still correct, now pull. Use the push-pull method to help eliminate kinking of the conductors inside the plug and get the cable jacket up as far as possible into the rear of the connector. Using our Heavy Duty Pass Through Crimp and Termination Tool, crimp and terminate the plug onto your cable. The conductors are shaved off, and the plug is ready to go. Onto the next one!
If you happen to have a crimp and termination tool that doesn't shave off the conductors automatically, then no big deal. Simply terminate the plug as you usually do and then flush cut the excess from the nose of the plug. Double check to make sure you don't leave any conductors protruding. Our 5" Flush Cutters are ideal for this application.
Compatible with 24AWG unshielded Ethernet cables with cable jacket diameters ranging from 4.60 - 6.10mm and conductor insulation diameters from 0.86 - 1.05mm.
This plug has been thoroughly tested and verified with our trueCABLE Cat5e U/UTP Ethernet cables.
