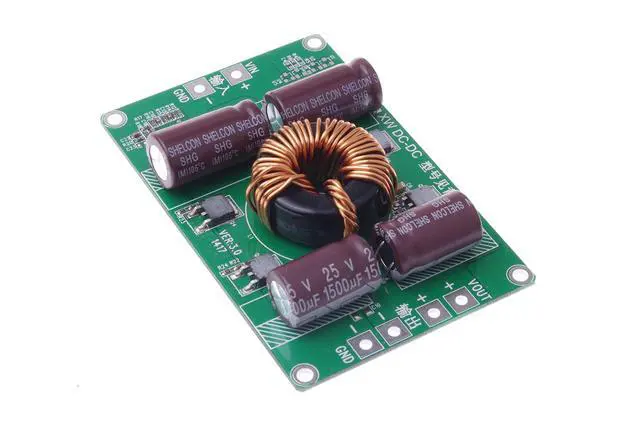

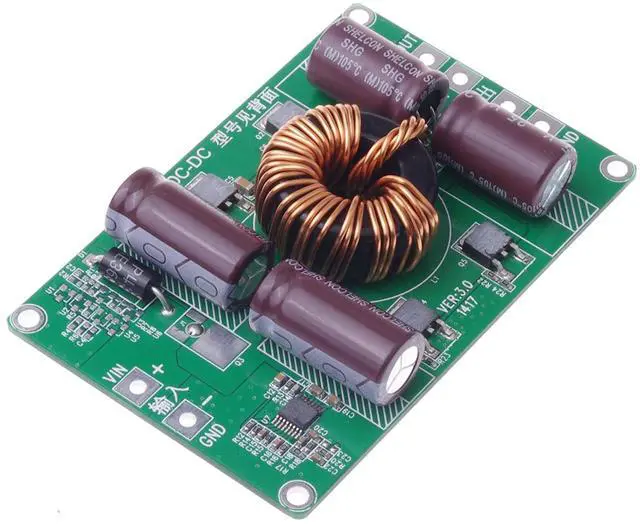

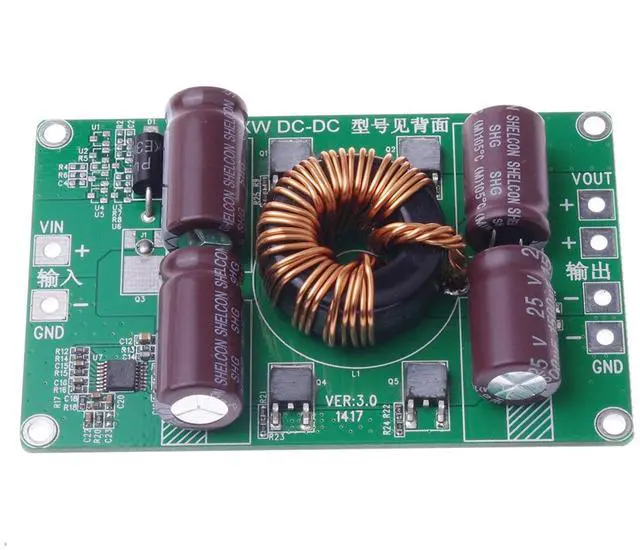

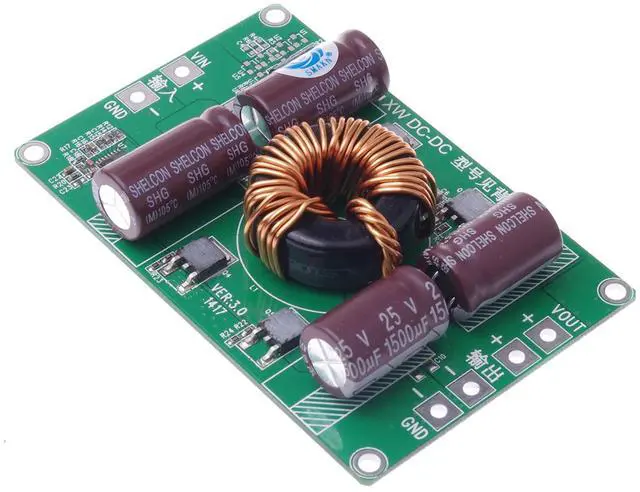

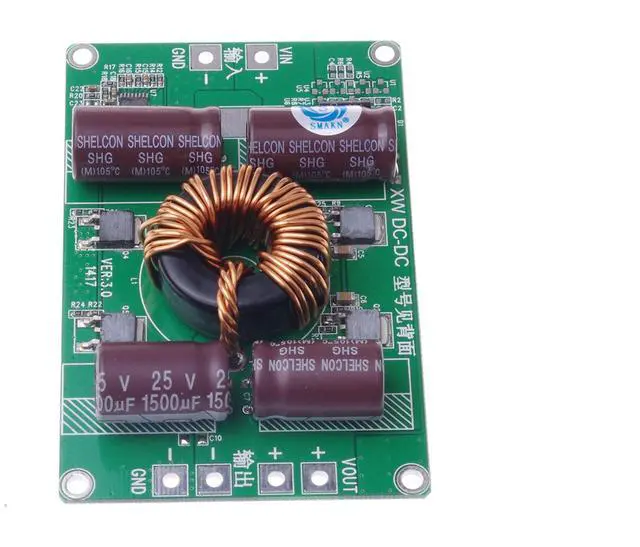

SMAKN DC/DC Converter Step Down 24V/36V 24V 36V 15-40V to 12V/22A 12V 22A 264W Power Supply Module
- input voltage: DC 15V-40V
- output parameter : DC 12V
- Output power: DC 12V 20A 240W
- Size(mm): 74 x 72 x 31
- working temperature: (-40 `80) when it is more than 40,please make lower power, or enhance heat dissipation
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
thin, small size, high efficiency, easy installation. quality is stable and reliable.
Features: 1. synchronous rectification, conversion rate is 93% with very low heat. 2. auto protect over voltage, over current, over temperature, short circuit,, can work in normal condition when restored. 3.
Power: 35MA4.
ripple: 40mv5.
Output power: 20A 240W6.
working temperature: (-40 `80 ) when it is more than 40, please make lower power, or enhance heat dissipation7.
full load temperature rise: 50
8.
Load regulation: 1%9.
voltage regulation rate: 2%10.
Protection: Enter the high-voltage transient protection, output overcurrent protection, thermal
protection chipSIZE: 75
* 52 * 18weight: 85G
Features: 1. synchronous rectification, conversion rate is 93% with very low heat. 2. auto protect over voltage, over current, over temperature, short circuit,, can work in normal condition when restored. 3.
Power: 35MA4.
ripple: 40mv5.
Output power: 20A 240W6.
working temperature: (-40 `80 ) when it is more than 40, please make lower power, or enhance heat dissipation7.
full load temperature rise: 50
8.
Load regulation: 1%9.
voltage regulation rate: 2%10.
Protection: Enter the high-voltage transient protection, output overcurrent protection, thermal
protection chipSIZE: 75
* 52 * 18weight: 85G
