HangTon HE29 6 Pin Male Female Plug Waterproof Outdoor 25A Power Equipment Wire Cable Connector
- Cable Range: 12-15mm, Wire Size: 4mm or 11AWG, Contact Diameter: 2.8mm
- Rated Voltage/Current : AC 380V/25A, Resistance: 1m
- Protected against solids & liquids, provide a secure and reliable connection in the harsh environment.
- For indoor and outdoor use.
- Waterproof IP68, threaded coupling, quick disconnect, solder male female cable plug
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features: In the harsh environment can provide a safe and reliable connection. HE29 (Threaded Coupling) connector is ideal for any equipment for watertight, indoor / outdoor applications, such as outdoor electric tools or appliances, medical device, communications, Marine equipment, under water equipment, outdoor led lighting, outdoor LED panels, solar energy system, outdoor security cameras, transformer, control box, machines and equipment, packing machines, for data and power.
HE29:
Model: 2-26
PinMaterial: PlasticIP
Rating: IP68Panel
Cutout Diameter: 29mmCable
Outer Diameter Range: 12-15mmCoupling
Type: Threaded
CouplingShell: Thermoplastic Nylon66,
Fire Resistance: V-0Insert
Material: Thermoplastic PPS max temperature 260Contact
Material: Brass with
Gold PlatingTermination: SolderMating
Cycle: >500 timesTemperature
Range:
-40~+100Humidity: +40
953%Vibrator: 10~500Hz, acceleration
100m/sShock: 40~80times/min, acceleration 250m/sPackage

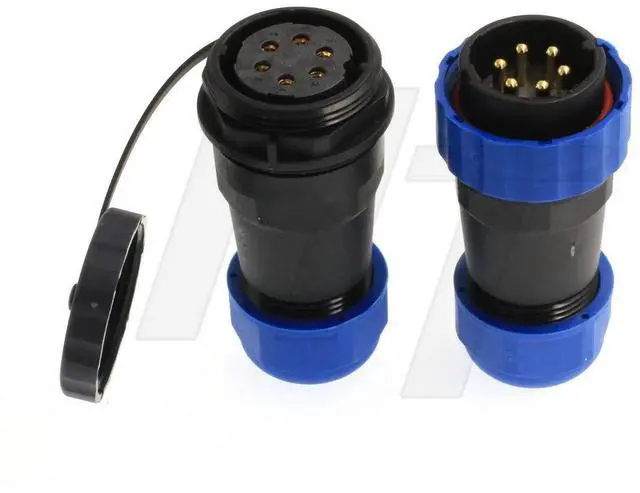

Includes: 1 x Cable Plug with Male Pins1 x Cable Plug with Female Pins1 x Waterproof / Dustproof Cap
Specifications
:HE29:
Model: 2-26
PinMaterial: PlasticIP
Rating: IP68Panel
Cutout Diameter: 29mmCable
Outer Diameter Range: 12-15mmCoupling
Type: Threaded
CouplingShell: Thermoplastic Nylon66,
Fire Resistance: V-0Insert
Material: Thermoplastic PPS max temperature 260Contact
Material: Brass with
Gold PlatingTermination: SolderMating
Cycle: >500 timesTemperature
Range:
-40~+100Humidity: +40
953%Vibrator: 10~500Hz, acceleration
100m/sShock: 40~80times/min, acceleration 250m/sPackage
Includes: 1 x Cable Plug with Male Pins1 x Cable Plug with Female Pins1 x Waterproof / Dustproof Cap
