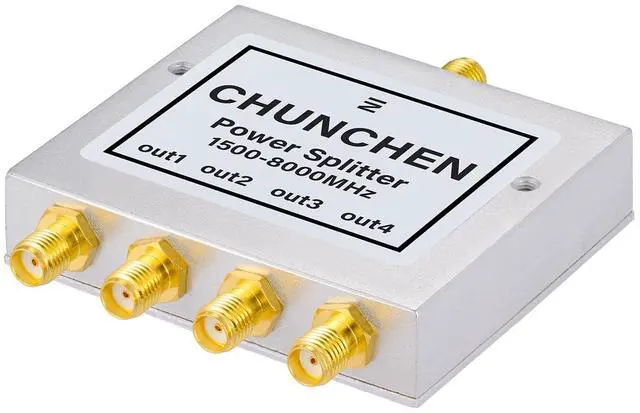

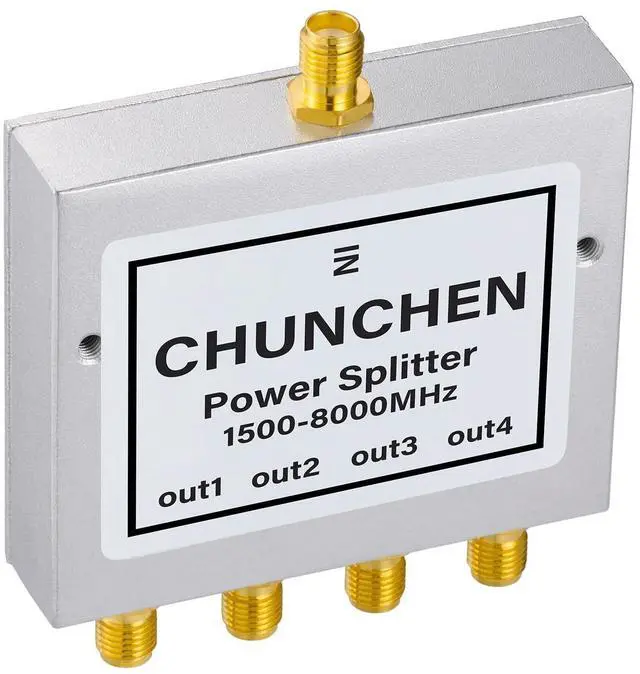

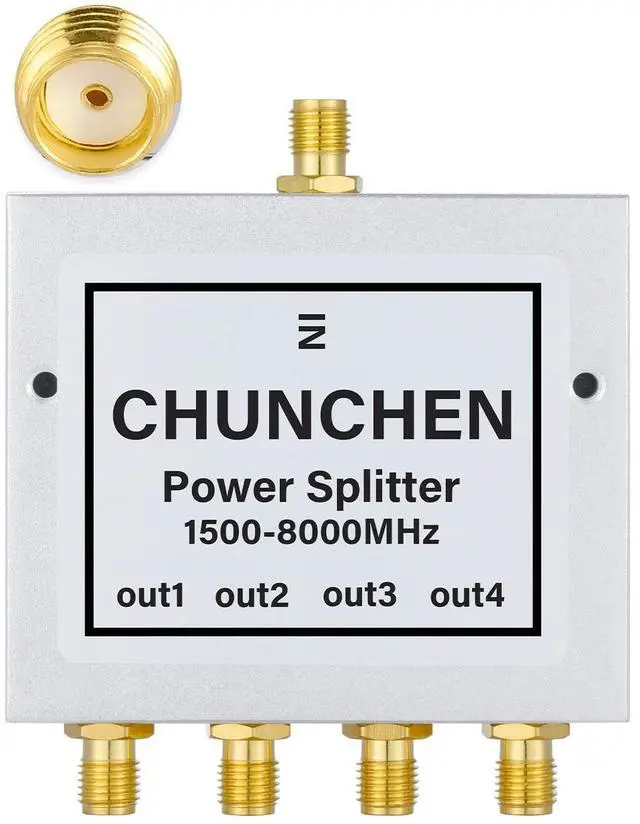

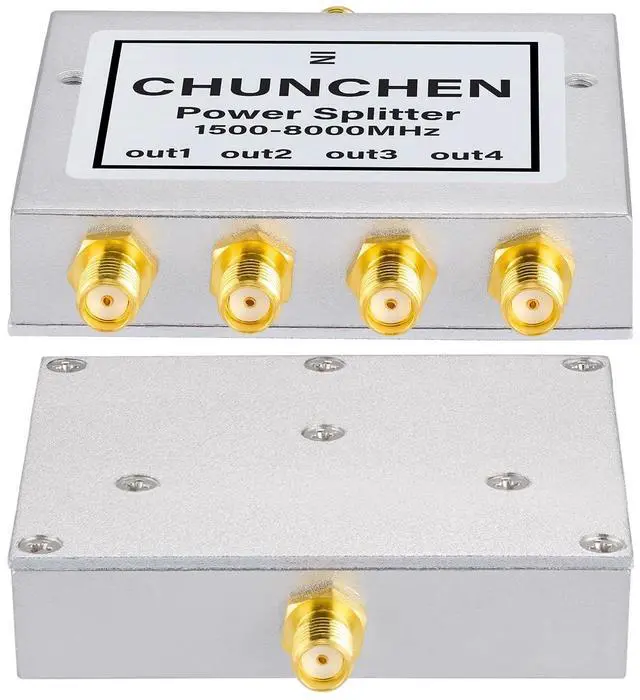

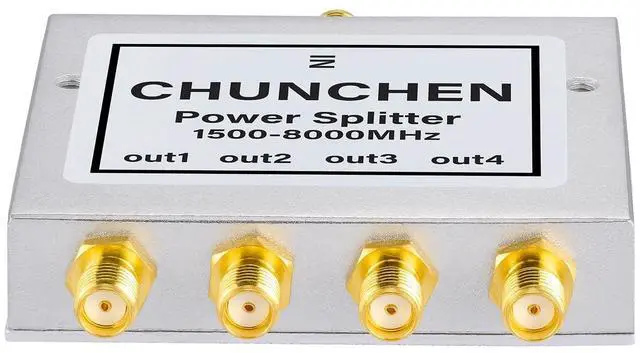

CHUNCHEN 4 Way 1.5-8GHz Power Splitter SMA Female Connector Signal Splitter 1500MHz-8000Mhz Cable Signal Splitter 1 Input 4 Output for Antenna Cable

Be the first to review this product...
  • Product name: 1.5-8GHz SMA female 4 way power splitter 1 input 4 out;
  • Connector port: 1 input and 4 output; Output port type: 4 way; Connector type(Input): SMA female; Connector type(Output 1): SMA female; Connector type(Output 2): SMA female; Connector type(Output 3): SMA female; Connector type(Output 4): SMA female; Product material(Body): Aluminum alloy; Connector material: Copper;
  • Specification: Frequency range (GHz): 1500-8000Mhz; Insertion loss (dB): 7.9-9.9; Isolation (dB): 20; VSWR: 1.2, 1.55; Amplitude balance (dB): 0.3; Phase balance (): 5; Impedance (): 50; Power capacity (W): 50; Operating temperature (C): -30+70; Product dimensions (cm): 7.2*6.2*1.4cm;
  • Applicaion: Provides 4 amplified SMA female output ports for use with cable antenna satellite signal and so on;
  • Package: 1 x SMA female 4 way signal splitter(Weight:96.1g).
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now
Product name: 1.5 -8GHz SMA female 4 way power splitter 1 input 4 out; ^^
Connector port: 1 input and 4 output;
Output port type: 4 way;
Connector type (Input): SMA female;
Connector type (Output 1): SMA female;
Connector type (Output 2): SMA female;
Connector type (Output 3): SMA female;
Connector type (Output 4): SMA female;
Product material (Body): Aluminum alloy;
Connector material: Copper; ^^
Specification: Frequency
range (GHz): 1500-8000Mhz;
Insertion loss (dB): 7.9 - 9.9;
Isolation (dB): 20;
VSWR: 1.2, 1.55;
Amplitude balance (dB): 0.3;
Phase balance (): 5;
Impedance (): 50;
Power capacity (W): 50;
Operating temperature (C): -30+70;
Product dimensions (cm): 7.2 * 6.2 * 1.4 cm; ^^
Applicaion: Provides 4 amplified SMA female output ports for use with cable antenna satellite signal and so on; ^^
Package: 1 x SMA female 4 way signal splitter(Weight: 96.1 g).
