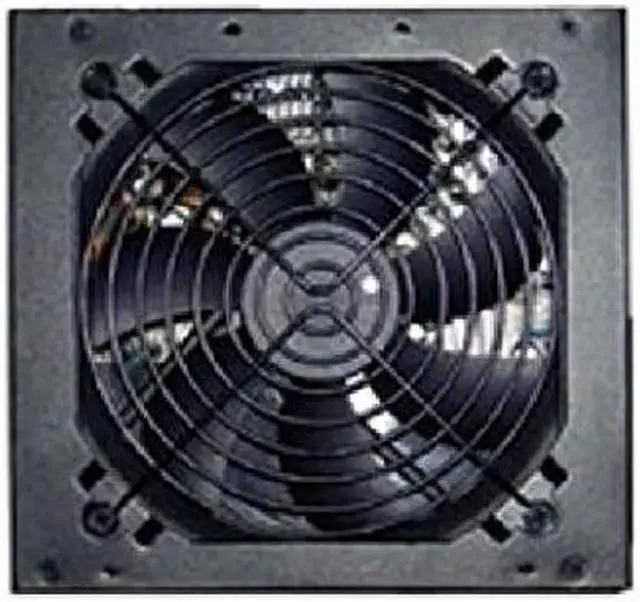

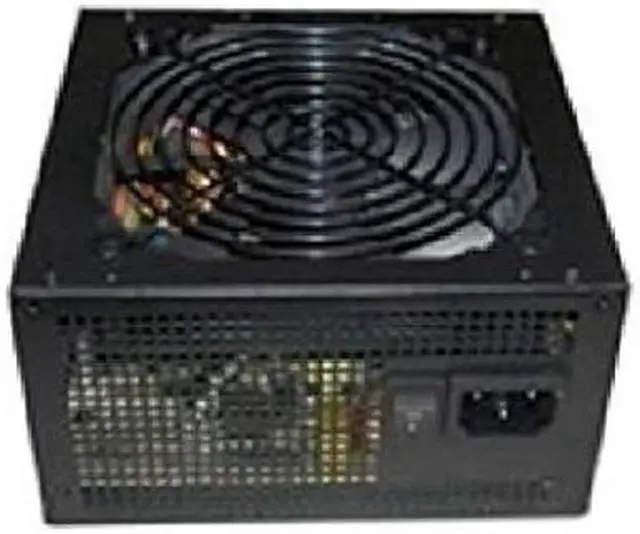

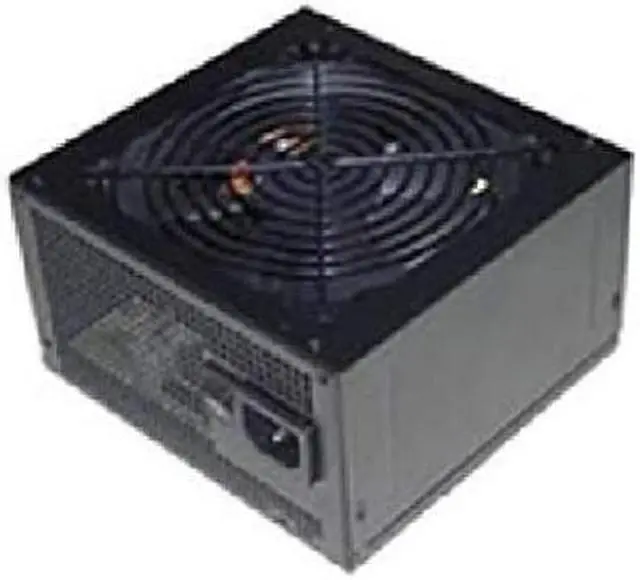

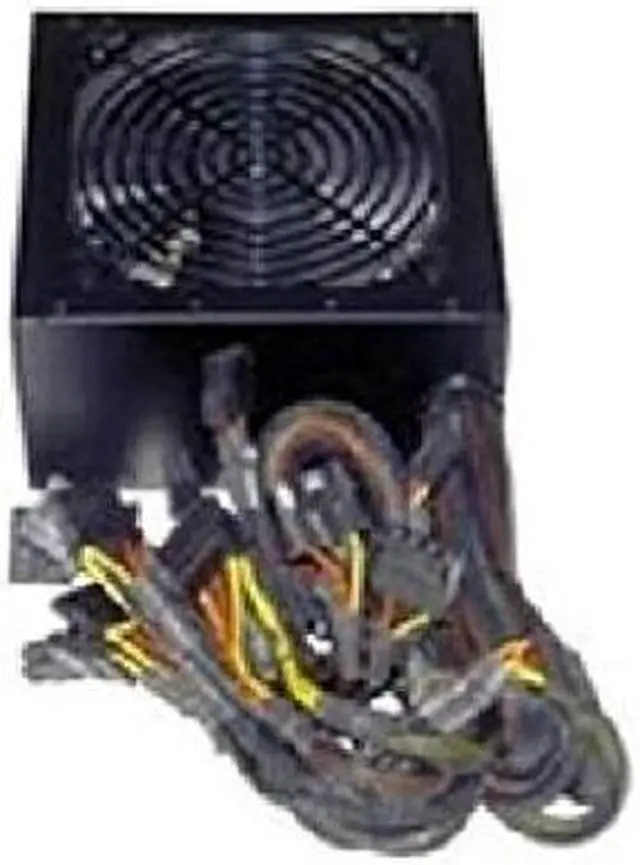

EPOWER EP-500PM 500W ATX/EPS12V Power Supply with 120MM Fan
- Form Factor: ATX12V 2. 0
- Maximum Wattage: 500W
- Single 120 mm Cooling Fan
- 1 year
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
MfrPart Number: EP-500PM
Features: 75% Efficiency
Rating Maximum Power: 500W
Fans: 1x 120 mm Cooling
Fan Input: Input
Voltage: 115 ~ 230 V
Input Frequency Range: 50/60Hz
Input Current: 10 ~ 6
A Output: +3. 3V @ 24A, +5V @ 24A, +12V1 @ 20A, +12V2 @ 20A, -12V @ 0. 5A, +5VSB @ 2.
5A Connectors: 1x 20+4pin Main Power Connector, 1x 4+4pin ATX Power Connector, 1x 6+2pin PCI-Express Connector, 1x 6pin PCI-Express Connector, 6x SATA Connectors, 6x 4pin Molex Connectors, 2x
FDD Connectors Approvals: UL, FCC
Form Factor: ATX12V 2.
3 Dimensions (WxLxH): 6. 0 x 5. 5 x 3. 3 inch / 150. 0 x 140. 0 x 85.
0 mm Weight: 4. 0 lbs / 1. 81 kg
Warranty & Returns
Warranty, Returns, And Additional Information
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's 30-Day Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Website
- Support Phone: 1-626-935-1688
- Support Website
- View other products from TOPOWER
