ANMBEST 5PCS DB25 Solderless Connector, RS232 D-SUB Serial to 25-pin Port 16mm Thinner Terminal Male Adapter Breakout Board with Case Long Bolts Nuts

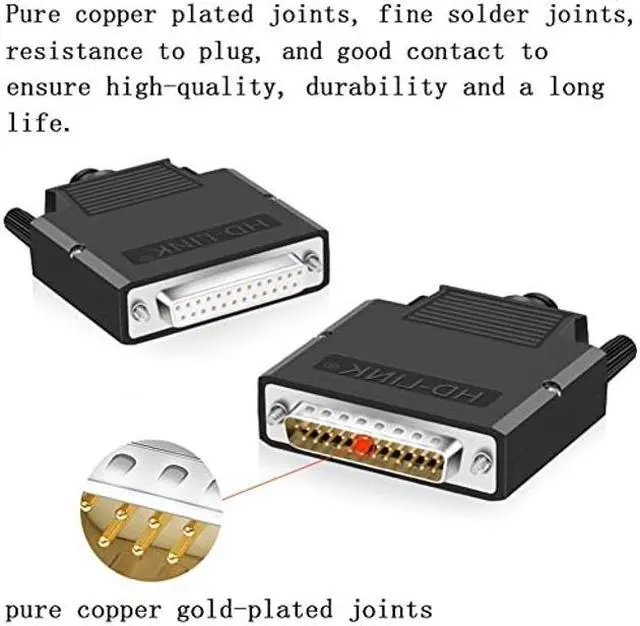

- DURABLE: Pure copper plated joints, fine solder joints, resistance to plug, and good contact to ensure high-quality, durability and a long life. The outer casing is made of environmentally friendly PP engineering material, which is soft and durable.

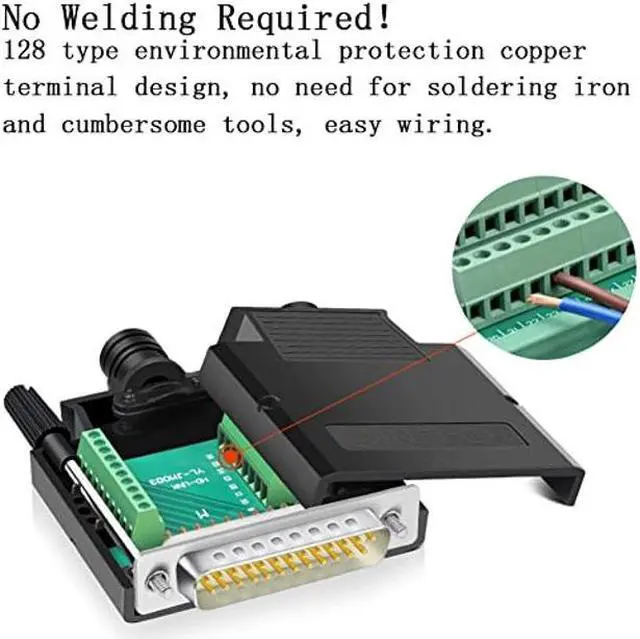

- SOLDERLESS: No welding required, 128 type environmental protection copper terminal design, no need for soldering iron and cumbersome tools, easy wiring.
- SCREW LOCK: The shell is locked with screws and nuts, which can avoid the disadvantages of not closing the shell tightly or large gaps.

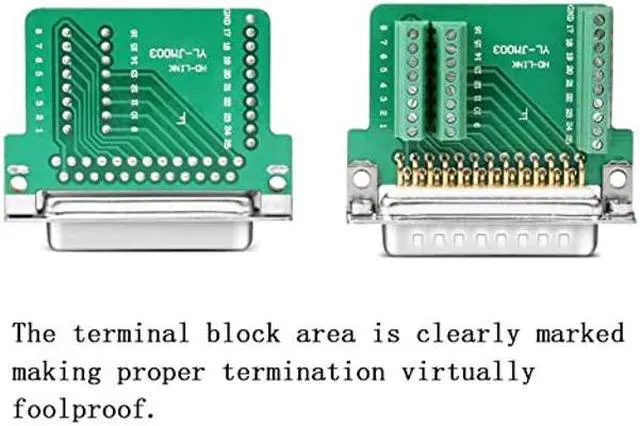

- REDUCE ERRORS: The terminal block area is clearly marked making proper termination virtually foolproof.
- WIDELY APPLICATIONS: It can connect all kinds of serial devices. Such as computer and tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation and other equipment for communication.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
These DB25 Male Solderless Connectors are used to terminate the connection type of a cable and facilitate commissioning equipment of project. They can easily be connected to a custom length cable as well as create a custom pinout, creating a permanent and durable connection for all applications. These connectors are made with high-quality materials to ensure durability and a long life.
Technical
Name: 16mm Thin DB25 solderless module
Plug type: male
Accessories: housing, screw, card line buckle
Connector material: pure copper plated joint
Contact Material: Copper
Housing material: environmentally friendly PP engineering materials
Shell type: Screw lock
Pin Pitch: 3.81 mm/ 0.15 in
Cable Specification: 28-16 AWG/ 0.15 - 1.5 mm2
Torque: 0.2N m ( 1.7L b-In. )
Opening size (cable port): 10.5 mm/ 0.41 ''
Thickness: 16mm/ 0.63 ''
Application: tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation, etc.
Size: 60 mmx57 mmx16 mm/ 2.36 ''x 2.24 ''x 0.63 ''

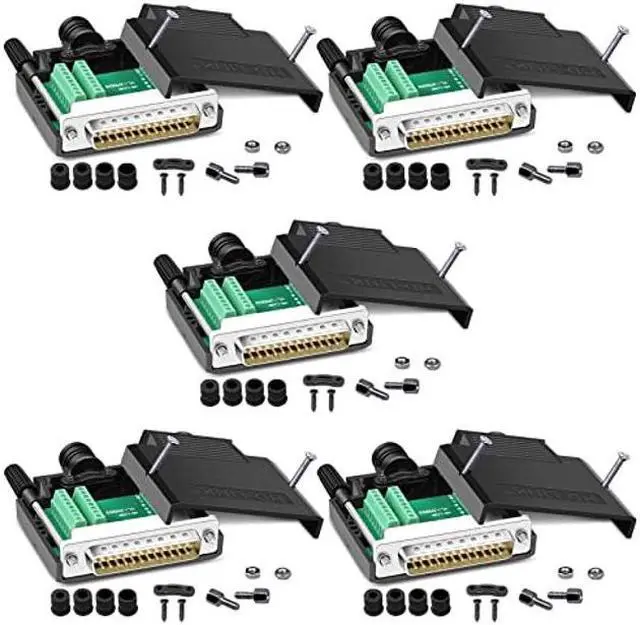

Package includes:
5 x DB25 16mm Male Solderless Connectors

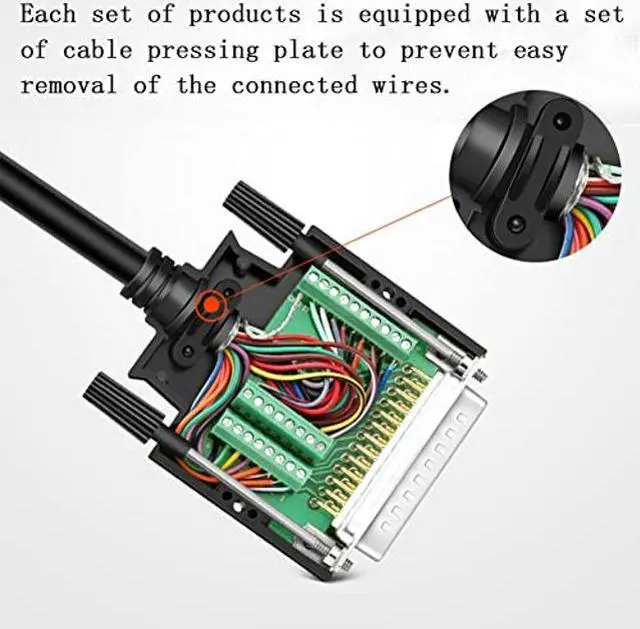

5x cable pressing plate
10x Lock screws
10x Long bolts
5x 5mm tail pipe
5x 6mm tail pipe
5x 7.5 mm tail pipe
5x 8.5 mm tail pipe
Technical
Specifications
:Name: 16mm Thin DB25 solderless module
Plug type: male
Accessories: housing, screw, card line buckle
Connector material: pure copper plated joint
Contact Material: Copper
Housing material: environmentally friendly PP engineering materials
Shell type: Screw lock
Pin Pitch: 3.81 mm/ 0.15 in
Cable Specification: 28-16 AWG/ 0.15 - 1.5 mm2
Torque: 0.2N m ( 1.7L b-In. )
Opening size (cable port): 10.5 mm/ 0.41 ''
Thickness: 16mm/ 0.63 ''
Application: tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation, etc.
Size: 60 mmx57 mmx16 mm/ 2.36 ''x 2.24 ''x 0.63 ''
Package includes:
5 x DB25 16mm Male Solderless Connectors
5x cable pressing plate
10x Lock screws
10x Long bolts
5x 5mm tail pipe
5x 6mm tail pipe
5x 7.5 mm tail pipe
5x 8.5 mm tail pipe
