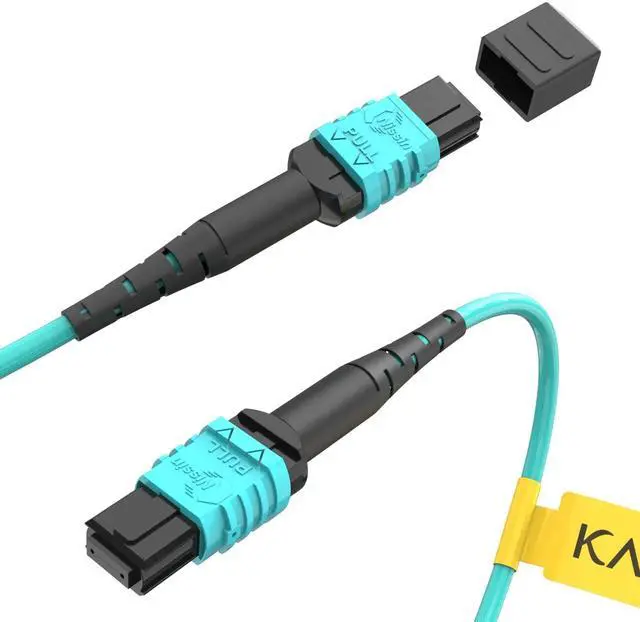

Karono MTP/MPO Patch Cord 16.5 ft (5M),8 Fibers Type B OM3 Female/Female LSZH Fiber Optic Patch Cable, 40G MPO Fiber for QSFP+Transceivers, Aqua

Be the first to review this product...

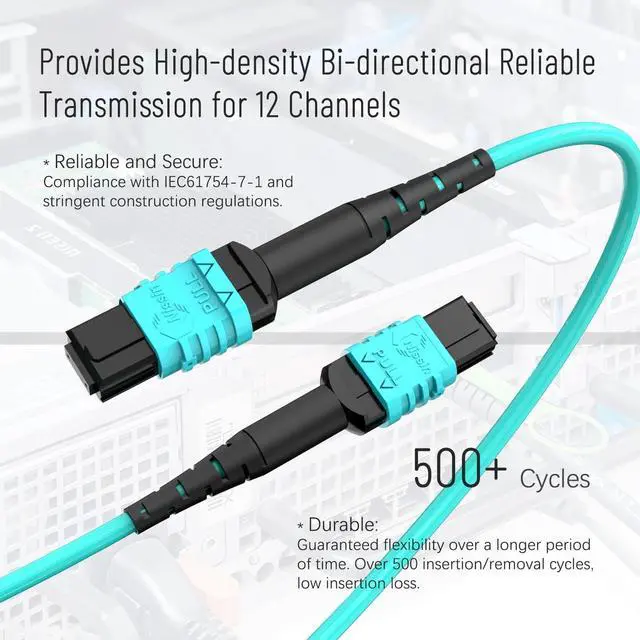

  • High Speed and High Density MPO to MPO Patch Cable, (MPO FEMALE Connector without PIN). Low insertion loss and back reflection loss process

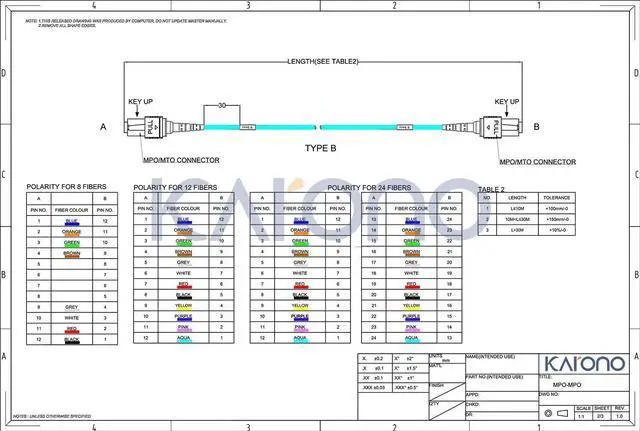

  • TYPE B & IEEE802BMMMF(50/125um), OM3 10G standard, LSZH sheet, 8-core fibers cable, constructed with TYPE B (Chanel 1 to Chanel 12)
  • High-performance for Your DatacenterIL at 850nm <0.6 dB (typ. 0.3 dB), RL dB at 850nm > 25 Db; Common configuration for connecting MPO / MTP cassettes and QSFP+ transceivers
  • No Doubt About QualityHigh-performance polishing machine, and complemented by precision plates holders designed for MT ferrules, 3D interferometer provides verification of MTP/MPO polishing process, and making all parameters of hte polished MT ferrule complies and exceeds industry standards.
  • Better Get It HereThe flexibility of the tester provides the the complete spectrum of optical testing required for complex and high fiber count cable assemblies
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

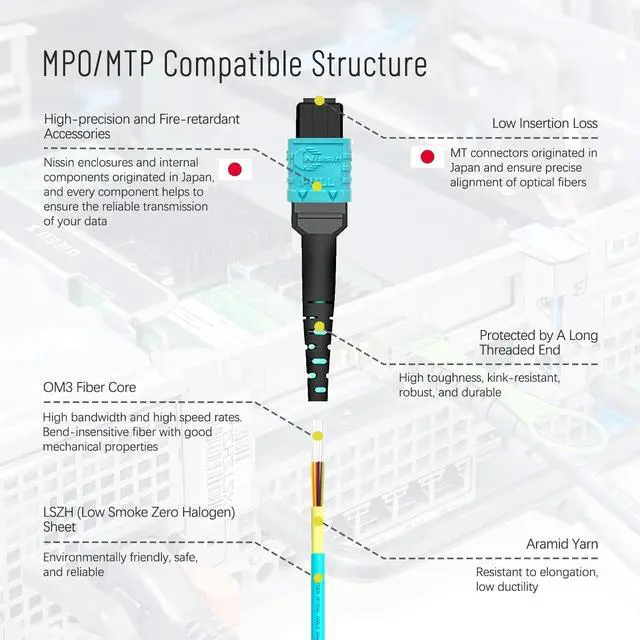

Description: multi-mode MPO products are multifiber connectors used in high-density backplane andPrinted Circuit Board (PCB) applications in data and telecommunications system. The MPOstander is fully compatible with MTP stander, offers up to 12 times the density of standardconnectors, such as LC/SC/FC etc. MPO/MTP patch cord providing sinificant space and costsavings. MPO patchcord utilize precision molded MT ferrules, with metal guide pins and precisehousing dimensions to ensure fiber alignment when mating. The MPO can be massterminated in combination of 4, 8, 12 or 24 fiber ribbon cables.

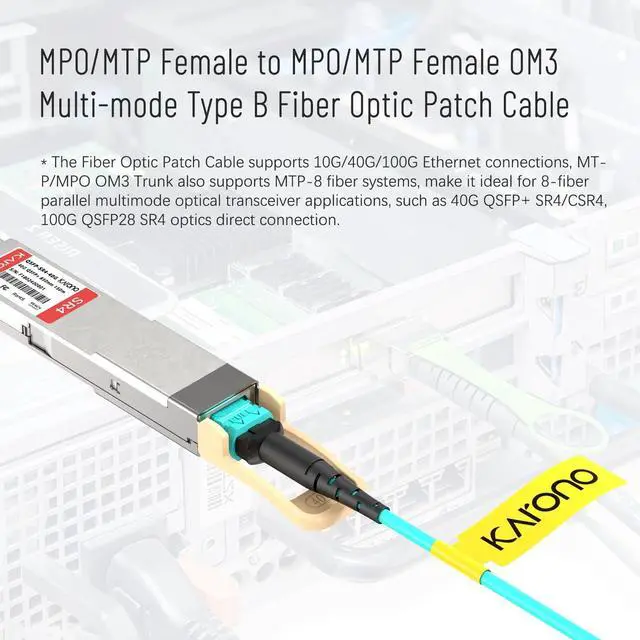

Compatible for: QSFP-40G-SR4, QSFP-40G-SR4-S, QSFP-40F-CSR4Extreme 40GB-ESR4-QSFPJuniper QFX-QSFP-40G-SR4 and QFX-QSFP-40G-ESR4. Brocade 40G-QSFP-SR4. Arista QSFP-40G-SR4 and QSFP-40G-XSR4. Hawei QSFP-40G-ISR4 and QSFP-40G-eSR4. H3C JG325A, JG325B and JG709A
