AIMS Power 600 Watt 12 VDC Pure Sine Inverter Charger 120 VAC Output 20A Charger 7A Transfer Switch ETL Cert to UL458 Standards PICOGLF6W12V120VETL
- POWERFUL: 600W continuous, 1800W surge for 20 seconds, 5 amps pure sine clean power, low frequency, auto transfer switch and 20A smart battery charger for 8 different battery technologies including Lead, Gel, AGM, LiFePO4 and more.
- PROTECTIONS: Overload, over temp, high voltage, low voltage, short circuit, internally fused, low and high voltage alarm, cooling fan, and isolated ground neutral.

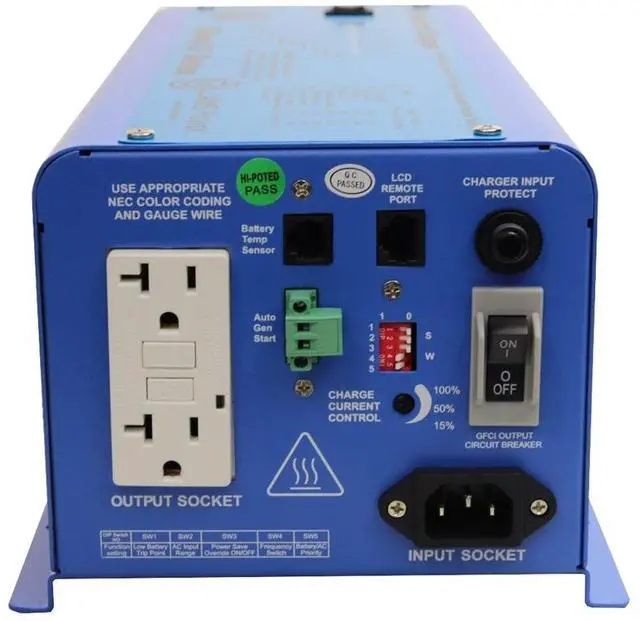

- FEATURES: GFCI outlet, AC direct connect terminal block, charge current control dial, dip switches to set priorities, auto gen start, conformal coated, power save mode. Only one set of cables needed. Optional remote available. Listed to UL & CSA.
- APPLICATIONS: Ideal for applications going back and forth from shore/generator and inverter power automatically. Homes, boats, RVs, solar, mobile business & work trucks. Offgrid & back-up power.
- TRUST AIMS: Buy with confidence. In business for over 20 year. All tech and warranty support in Nevada. 2 Yr warranty.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

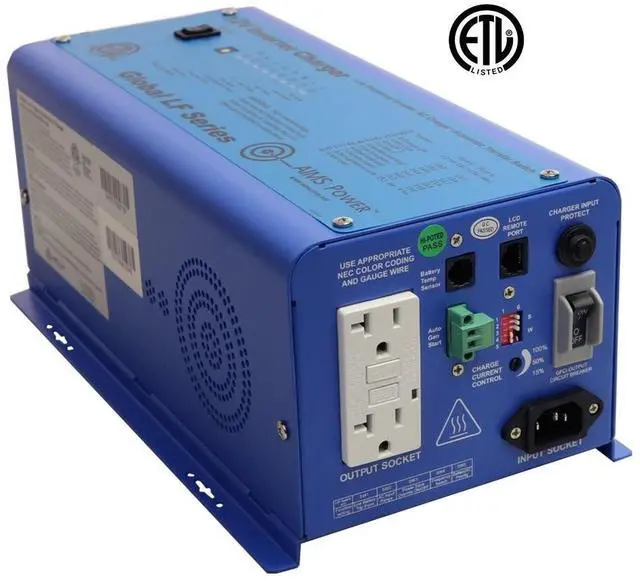

AIMS Power PICOGLF6W12V120VETL Pure Sine Inverter Charger, 600W Low Frequency Inverter, 1800W Surge, 12V, AC Input Cable, GFCI Outlet, Auto Frequency Detect From AC Input, 7 Battery Type SettingsThis 600 watt pure sine inverter charger ETL listed and conforms to UL 458 standards, is a combination of an inverter, battery charger and AC auto-transfer switch into one complete system with a peak DC and AC conversion efficiency of 80%. It is packed with unique features and it is one of the most advanced inverter chargers in the market today.
It features power factor corrected, sophisticated multi-stage charging and pure sine wave output with unprecedentedly high surge capability to meet demanding power needs of inductive loads without endangering the equipment. Key Features 600 watt low frequency inverter - ETL listed to UL 458 standards 1800 watt surge for 20 seconds 300% surge capability AC Input Cable; GFCI outlet; Conformal Coated for Marine Applications Multi Stage Smart Charger 20 Amp Auto Frequency Detect From AC Input Less than 10msec Typical Transfer Time selectable 25W power save mode (hibernation) 7 Battery Type Settings for ChargerSpecifications Continuous
Output Power: 600
Watts Surge Rating: 1800 Watts (20 Seconds)
Output Waveform: Pure Sine/Same as input (Bypass Mode)
Output Voltage: 120Vac
Nominal Efficiency: 80% (Peak)
Output Frequency: 50Hz 0.3H z / 60Hz 0.3H z
Typical Transfer Time: 10ms (Max) Nominal
Input Voltage: 12.0V dc Low
Battery Alarm: 10.5V dc- 11.0V dc High
Voltage Alarm: 16.0V dc Low
Battery Voltage Restart: 15.5V dc Four Stage Smart Charger Max input
AC voltage: 150
Weight: 18 lbs
Size (LxWxH): 14.7" x 7" x 5.5"
It features power factor corrected, sophisticated multi-stage charging and pure sine wave output with unprecedentedly high surge capability to meet demanding power needs of inductive loads without endangering the equipment. Key Features 600 watt low frequency inverter - ETL listed to UL 458 standards 1800 watt surge for 20 seconds 300% surge capability AC Input Cable; GFCI outlet; Conformal Coated for Marine Applications Multi Stage Smart Charger 20 Amp Auto Frequency Detect From AC Input Less than 10msec Typical Transfer Time selectable 25W power save mode (hibernation) 7 Battery Type Settings for ChargerSpecifications Continuous
Output Power: 600
Watts Surge Rating: 1800 Watts (20 Seconds)
Output Waveform: Pure Sine/Same as input (Bypass Mode)
Output Voltage: 120Vac
Nominal Efficiency: 80% (Peak)
Output Frequency: 50Hz 0.3H z / 60Hz 0.3H z
Typical Transfer Time: 10ms (Max) Nominal
Input Voltage: 12.0V dc Low
Battery Alarm: 10.5V dc- 11.0V dc High
Voltage Alarm: 16.0V dc Low
Battery Voltage Restart: 15.5V dc Four Stage Smart Charger Max input
AC voltage: 150
Weight: 18 lbs
Size (LxWxH): 14.7" x 7" x 5.5"
