wusu 60m/196ft HDMI KVM Extender over Ethernet Cat5e/6 4K@60Hz HDMI USB Extender Video Audio Extension Transmitter Support USB Keyboard Mouse

4K 60Hz HDMI KVM Extender RJ45 HDMI USB Extender

Description:

4K@60Hz HDMI KVM extender provides extension of HDMI signals long distances over a single CAT5e/6 cable, it supports high resolution up to 3840x2160@60Hz, POC,HDMI loop out and KVM Remote control. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Package:

1. 4K HDMI KVM extender transmitter: 1 pcs
2. 4K HDMI KVM extender receiver: 1 pcs
3. Power adapter: 1pcs
4. User manual: 1 pcs

Features:

1. Long range transmission:up to 60m/196ft over a single AWG23 CAT6 cable;
2. Video resolution:Up to 576P,720P,1920x1080P@60Hz,3840x2160@60Hz;
3. HDR 10+,3D,Dolby Vision,Dolby ATMOS,Deep Color:8/10/12/24 Bit;
4. Audio format:LPCM2/5.1/7.1,Dolby Digital,DTS 5.1,Dolby Digital+ ;

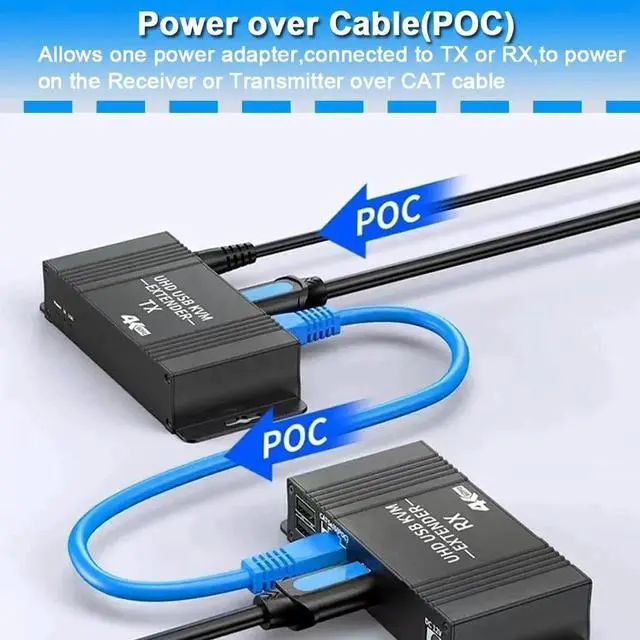

5. POC function:Power over CAT cable,only need one power adapter;

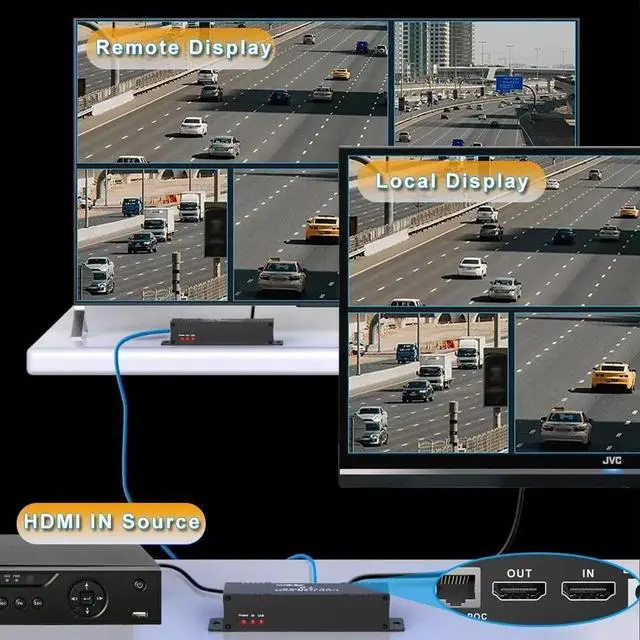

6. HDMI loop out function:The transmitter with one HDMI local loop out;
7. Uncompressed mode:ZERO Delay,No loss;

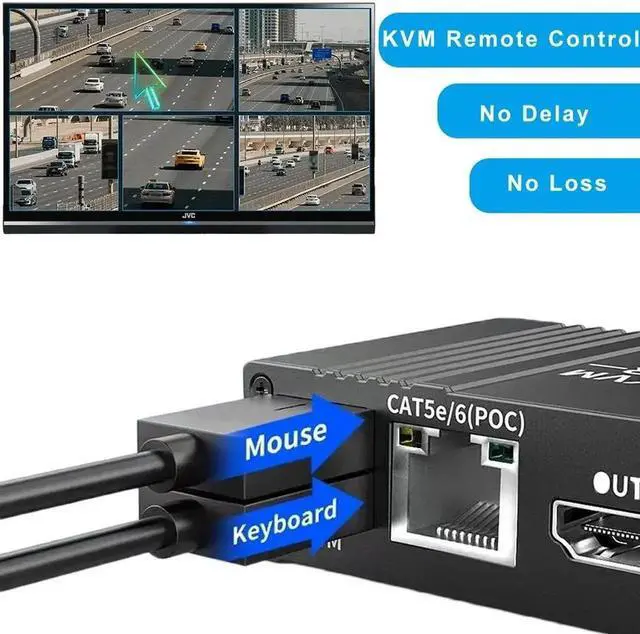

8. KVM Rmote Control:keyboard and mouse remote control transmitter from long distance;
9. Male to male:one TX to one RX applicataion;
10. Video standard:compliance with HDMI 2.0 and HDCP 2.2 ,and compliant DVI standard;
11. Built-in automatic adjustment system:make the image smooth, clear and stable;
12. Built-in ESD protection system: make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc;plug and play
13. Simple to install, plug and play

Specifications:

Video

Standards: HDMI 2.0; HDCP 2.2 and DVI compliant

Maximum pixel clock: 300MHz

Maximum data rate: 18Gbps

Resolution: 4K@60Hz

Connector: HDMI-A

Impedance: 100Ohm

USB

Interface: PC: Type B USB interface; connect to pc;

K/M: connect wired or wireless USB keyboard and mouse

USB signal: HID Signal

CAT

Interface: RJ45/IEEE-568B/AWG23

Transmission distance: CAT5:40m/131ft,CAT5e:50m/164ft,CAT6:60m/196ft

Other

Power supply: The power adapter: DC 12V/1A

Power dissipation: TX:1.92W,RX:1.68W(Max)

Temperature: Operating: -5 centigrade ~ +70 centigrade

Humidity: Operating: 5% ~ 90%

Dimension: 118*50*25mm

Note:

1.the K/M USB port only support wired or wireless keyboard and mouse,not support Mechanical keyboard, USB camera,Scanner,USB flash driver ,printer etc.

2.For CAT cable,please you use AWG23 CAT5e/6 cable with IEEE-568B connection.

4K HDMI KVM extender provides extension of HDMI signals long distances over a single CAT5e/6 cable, it supports high resolution up to 3840x2160@60Hz, POC, HDMI loop out and KVM Remote control. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Long range transmission: up to 60m/196ft over a single AWG23 CAT6 cable;

Video resolution: Up to 576P, 720P, 1920x1080P@60Hz, 3840x2160@60Hz;

HDR 10+, 3D, Dolby Vision, Dolby ATMOS, Deep

Color: 8/10/12/24 Bit;

Audio format: LPCM2/ 5.1 / 7.1, Dolby Digital, DTS 5.1, Dolby Digital+;

POC function: Power over CAT cable, only need one power adapter;

HDMI loop out function: The transmitter with one HDMI local loop out;

Uncompressed mode: ZERO Delay, No loss;

KVM Rmote Control: keyboard and mouse remote control transmitter from long distance;

Male to male: one TX to one RX applicataion;

Video standard: compliance with HDMI 2.0 and HDCP 2.2, and compliant DVI standard;

Built-in automatic adjustment system: make the image smooth, clear and stable;

Built-in ESD protection system: make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc; plug and play

Simple to install, plug and play
