1-to-2 TOSLINK Optical + USB Powered to 3.5mm Audio Adapter Digital to Analog Converter (DAC) with Built-in DAC Chip

Product Description

This TOSLINK to 3.5mm analog audio cable is equipped with a built-in DAC chip, which can convert the digital optical audio signals from devices such as TVs and game consoles into 3.5mm stereo analog output. It is powered by USB, ensuring stable transmission and high-quality sound. It is suitable for connecting devices with only optical output to headphones, speakers or amplifiers with only analog input interfaces.

Product Features

Built-in DAC chip, supports optical digital-to-analog signal conversion, powered by USB, provides stable output of high-quality audio, fully compatible with IEC60958, S/PDIF, EIAJ, and CP1201.

And the AES3 protocol 2, Multi-bit modulator, 24-bit D/A conversion, automatic detection of the maximum sampling frequency range up to 192 kHz, 105 ab dynamic range, -90 dB. Total harmonic distortion + signal-to-noise ratio, low jitter recovery, plug-and-play, no need to install drivers.

Application scenario

Connect the TV and game console to headphones or speakers with a 3.5mm input, and upgrade the device with only optical output to be connected to an audio system with only analog input. This is suitable for scenarios such as home theaters, game audio, and personal music listening.

Technical Specifications

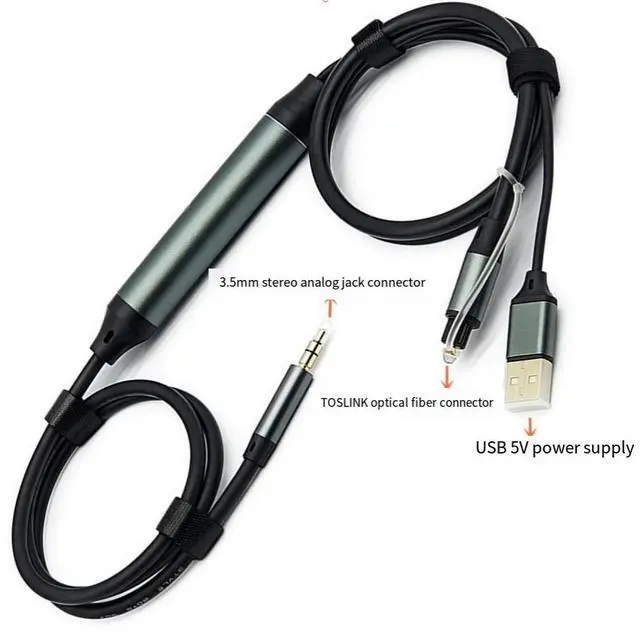

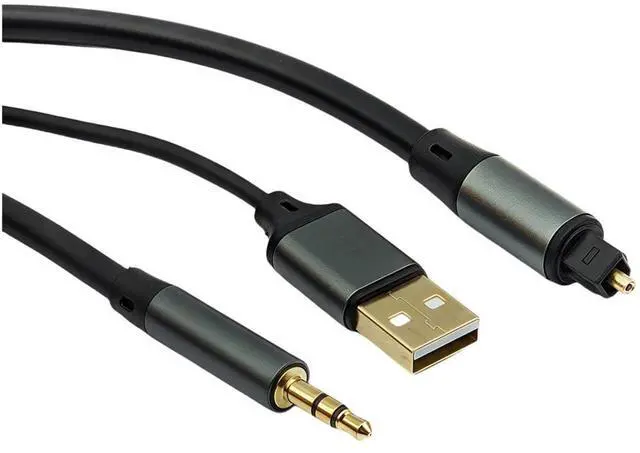

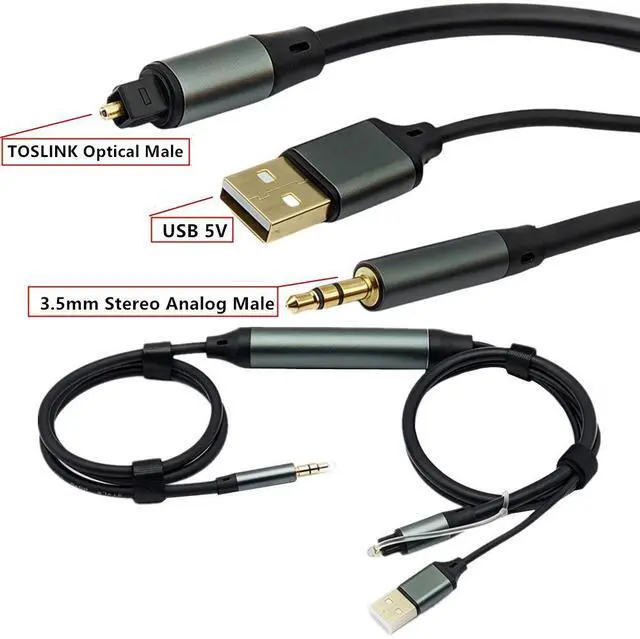

Input interface: TOSLINK optical fiber male connector

Output interface: 3.5mm stereo analog male connector

Power supply method: 5V USB power supply

Conversion chip: Built-in DAC (Digital-to-Analog Converter)

Outer cover material: PVC or optional woven outer cover
