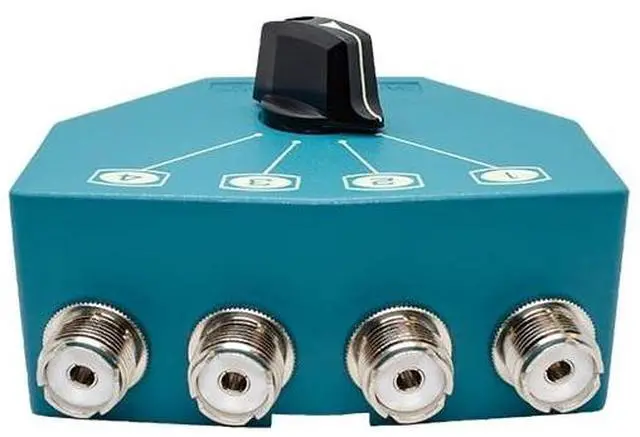

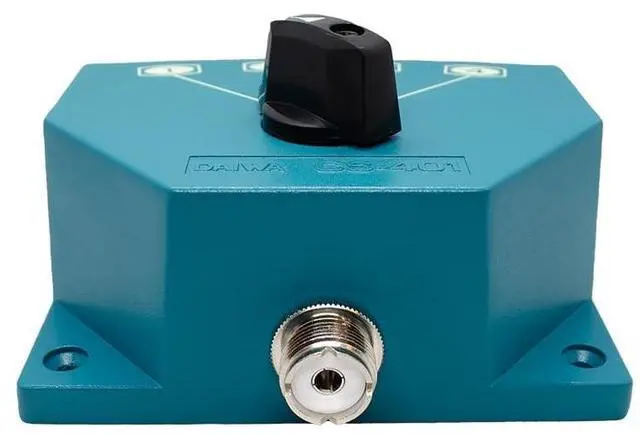

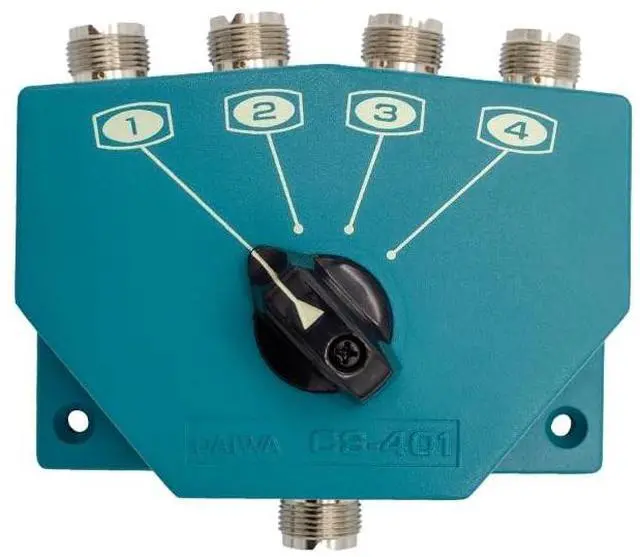

Daiwa CS-401 Antenna Switch 4-Position Coax Switch, SO-239 Connectors, DC-500 MHz, 2.5KW PEP Power Rating
- Wide Frequency Range: Operates from DC to 500 MHz, covering HF, VHF, and UHF bands.
- High Power Handling: Supports up to 2.5KW PEP and 1KW CW for robust amateur radio and commercial use.
- Low Insertion Loss: Less than 0.2 dB, ensuring efficient signal transfer and minimal performance loss.
- Excellent Isolation: Provides over 60 dB isolation at 200 MHz to prevent cross-interference between antennas.
- Reliable Protection: Selecting an unused port can help protect your radio equipment during storms.
- Quality Connectors: Equipped with SO-239 (UHF) connectors for universal compatibility with standard coax.

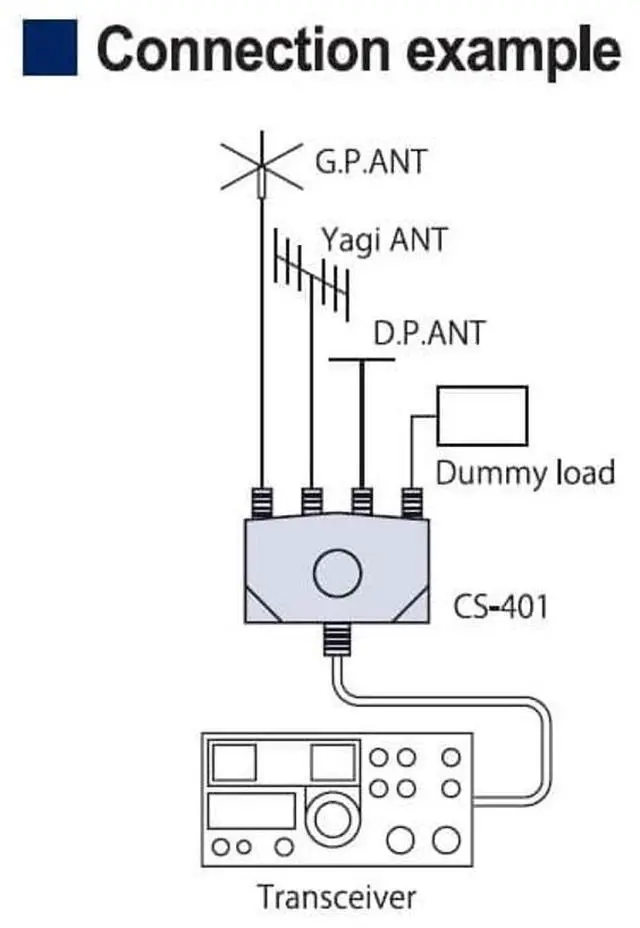

- 4 Output Ports: Manage multiple antennas or devices with ease using the convenient 4-position switch.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Wide Frequency Range: Operates from DC to 500 MHz, covering HF, VHF, and UHF bands.
^^ High Power Handling: Supports up to 2.5KW PEP and 1KW CW for robust amateur radio and commercial use.
^^ Low Insertion Loss: Less than 0.2 dB, ensuring efficient signal transfer and minimal performance loss.
^^ Excellent Isolation: Provides over 60 dB isolation at 200 MHz to prevent cross-interference between antennas.
^^ Reliable Protection: Selecting an unused port can help protect your radio equipment during storms.
^^ Quality Connectors: Equipped with SO-239 (UHF) connectors for universal compatibility with standard coax.
^^ 4 Output Ports: Manage multiple antennas or devices with ease using the convenient 4-position switch.
^^ High Power Handling: Supports up to 2.5KW PEP and 1KW CW for robust amateur radio and commercial use.
^^ Low Insertion Loss: Less than 0.2 dB, ensuring efficient signal transfer and minimal performance loss.
^^ Excellent Isolation: Provides over 60 dB isolation at 200 MHz to prevent cross-interference between antennas.
^^ Reliable Protection: Selecting an unused port can help protect your radio equipment during storms.
^^ Quality Connectors: Equipped with SO-239 (UHF) connectors for universal compatibility with standard coax.
^^ 4 Output Ports: Manage multiple antennas or devices with ease using the convenient 4-position switch.
