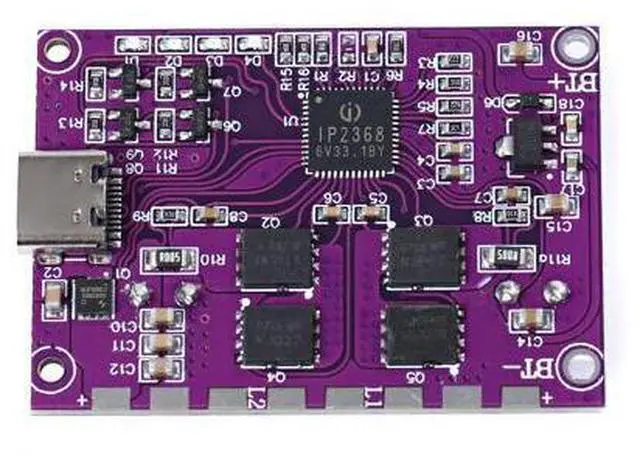

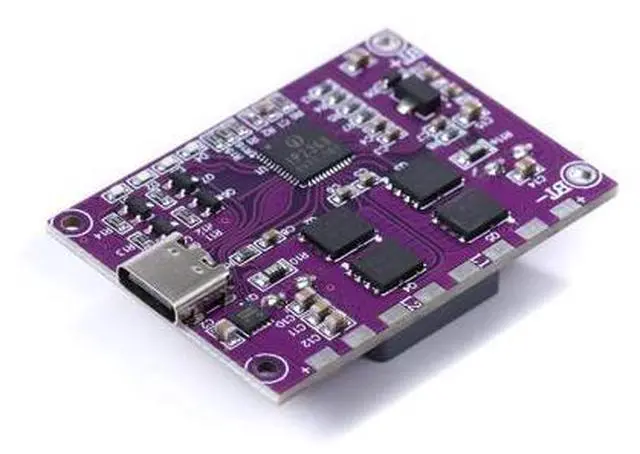

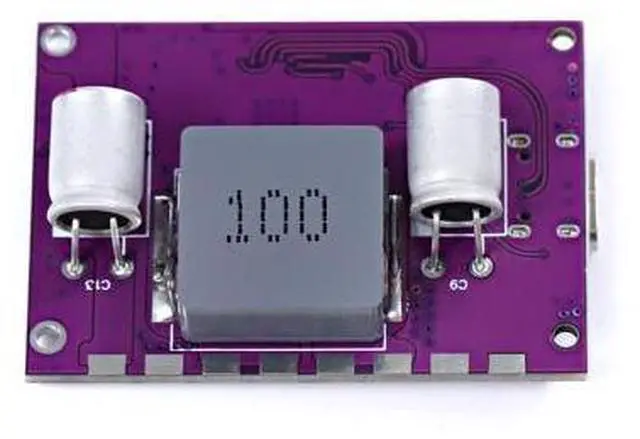

IP2368 Bidirectional 100w Fast Charging Module Buck-Boost Type-c Interface 4S Lithium Battery High-Power Fast Charging Board
- Continuous working current: 18A Overcharge voltage: 4.235V ± 0.025V Instantaneous current: 30A Overcharge release voltage: 4.19 ± 0.05V Charging voltage: 16.8-17V Overdischarge voltage: 2.8±0.08V Charging current: 1-10A Overdischarge release voltage: 3.0 ± 0.1V Balanced start-up voltage: 4.19 ± 0.05V The module has the function of two-waybuck-boostand can output a fixed 5v or 20v no matter the battery voltage changes.It should be noted that 100w must have a charging and discharging voltage of 20v. If the 12v output can only reach a maximum current of3a,thatis, 36w. Note: The product defaults to 4 strings of battery packs, the maximum is 16.8v, if it is changed to 5 strings or 6 strings of power supply, this voltage regulator transistor may be damaged
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

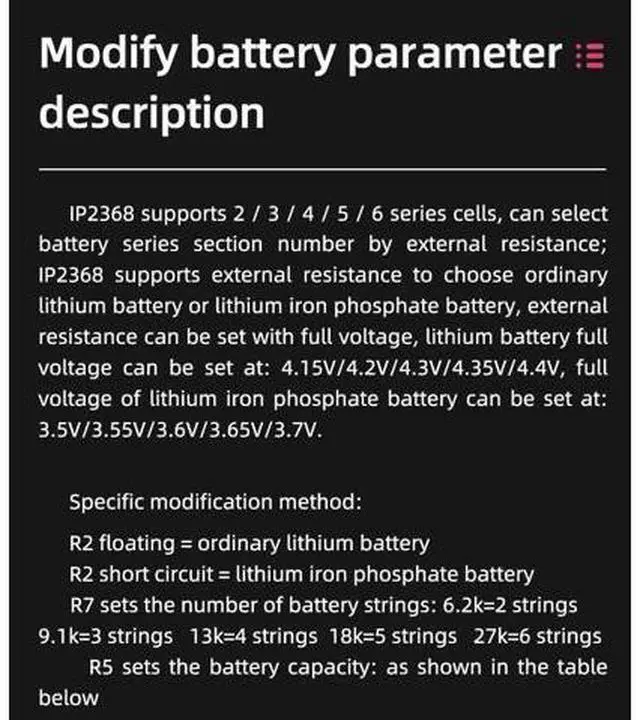

IP2368 full protocol 100W fast charging output, the output not only supports notebook computers but also is compatible with almost all mobile phone fast charging protocols; Modifiable resistance to support other batteries; Bidirectional buck-boost function
