5MP Autofocus USB Camera Module for Raspberry Pi, 2592(H)×1944(V)@30fps Lightburn Camera with Single Microphone, Mini-Sized Webcam for Linux, Windows, and Android
- Autofocus: 5MP(2592*1944)@30fps, full HD USB camera with Autofocus Lens; Capture most exciting details at every 30/15fps, FoV: 69°(H); MJPEG/YUYV: Picture format MJPEG or YUY2 optional, cameras with high resolution can be used in any video system and applications for industrial.; Plug and Play: OTG supported plug the USB cable into your PCs USB port, and running the software can capture high-level video and continuous recording, no driver is needed.; Compatible with All Platforms: Adopting UVC protocol, compatible with various platforms and operating systems, such as Windows, Linux, Mac, Android, etc.; Mini Sized: Lightweight and compact size is perfect for embedded applications and ideal for Video systems, 3D scanners, VR cameras, electronic microscopes, and medical machines.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
This camera is Arducam NEW Autofocus UVC camera. The max resolution&frame rate is 2592 (H) ×1944 (V) @30fps. Besides, we have equipped the camera with Auto Focus Lens. Arducam team is committed to creating more convenient and more efficient camera solutions. We have expanded the using scope of the image sensor, enabling the camera to realize your various projects. The camera is equipped with a 69° (H) autofocus lens, allowing you to use it for more applications. It is compatible with Windows, Linux, Android, and MAC. There are no additional drivers required.

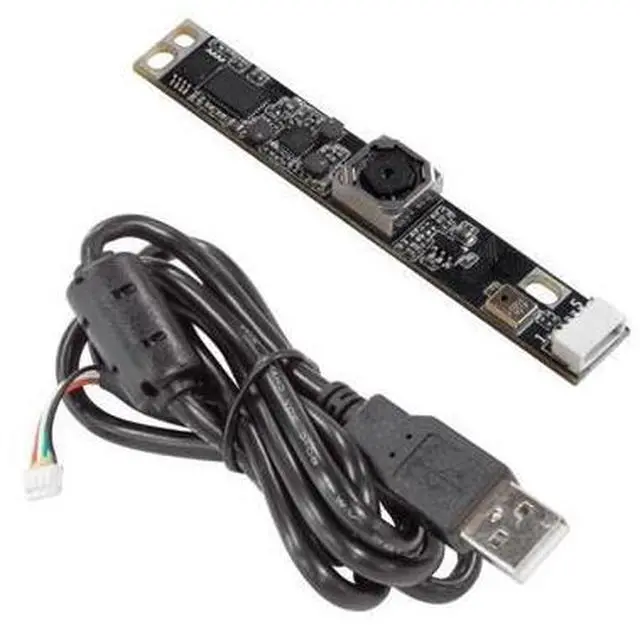

Package Including: 1 x Arducam 5MP AF Camera Module 1 x USB Cable (1m) 1 x Paper Quick start guide
Frame Rate:
MJPG: 30fps@2592*1944/2560*1440/2048*1536/ 1920*1080/1280*720/1600*1200/1280* 960/ 800*600/640*480/352*288/176*144 YUY 2: 176 *144/352*288/640*480@30fps; 800*600/1280*720/1280*960/1600*1200/ 1920*1080@5fps; 2048*1536/2560*1440/2592*1944@2fps Please note that the Preview frame rate of the USB camera is closely related to the performance of your platform.
Filter Type: Color
Shutter Type: Rolling shutter
Optical Size: 1/4"
Output Format: YUYV/MJPG
Pixel Size: 1.4 µm* 1.4 µm
Sensor Active Area: 2592 (H) ×1944 (V)
UVC Controls: Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Exposure, Focus Focus Type Auto Focus FOV 69° (H) Lens Mount M 6.5 *P 0.25 mm F. NO 2.0 ±5% E. F. L 2.46 mm Focal Length / TV Distortion <1% Interface USB 2.0 device Device Connector SM05B-SRSS-TB UVC
Package Including: 1 x Arducam 5MP AF Camera Module 1 x USB Cable (1m) 1 x Paper Quick start guide
Frame Rate:
MJPG: 30fps@2592*1944/2560*1440/2048*1536/ 1920*1080/1280*720/1600*1200/1280* 960/ 800*600/640*480/352*288/176*144 YUY 2: 176 *144/352*288/640*480@30fps; 800*600/1280*720/1280*960/1600*1200/ 1920*1080@5fps; 2048*1536/2560*1440/2592*1944@2fps Please note that the Preview frame rate of the USB camera is closely related to the performance of your platform.
Specifications
Resolution: 5MP ColorFilter Type: Color
Shutter Type: Rolling shutter
Optical Size: 1/4"
Output Format: YUYV/MJPG
Pixel Size: 1.4 µm* 1.4 µm
Sensor Active Area: 2592 (H) ×1944 (V)
UVC Controls: Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Exposure, Focus Focus Type Auto Focus FOV 69° (H) Lens Mount M 6.5 *P 0.25 mm F. NO 2.0 ±5% E. F. L 2.46 mm Focal Length / TV Distortion <1% Interface USB 2.0 device Device Connector SM05B-SRSS-TB UVC
