5V 20A 100W Switching Power Supply 110V / 220V AC to DC 5V 20amp Universal Power Transformer Driver Converter Adaptor for WS2812B WS2813 LED Strip Pixel Lights CCTV Camera Security System

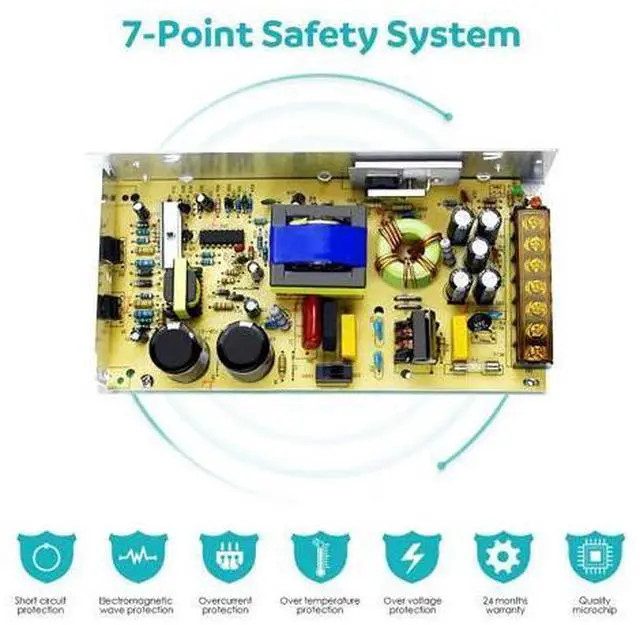

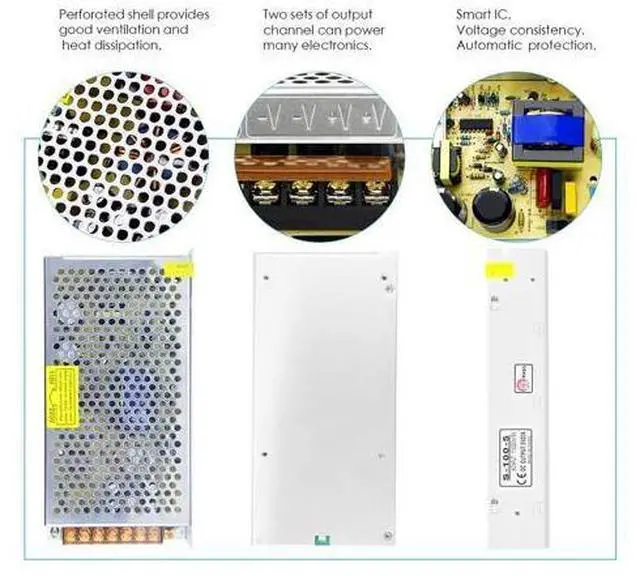

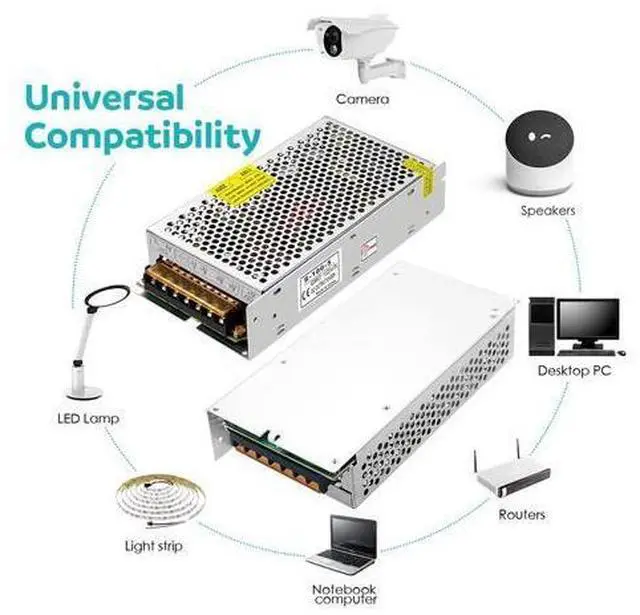

- Input: 110V/220V AC; Output: DC 5V 20A max. Output voltage can be adjusted 15%. 2 sets of output Channel. ( Indoor use only! ); High-quality raw mateerials- Pure Copper Inductors, High-performance Transformers, Dual-capacity Electrolytic Capacitors is The Guarantee of High-quality 20A 5V Switching Power Supply.; Multiple rprotection - With Over-voltage Protection, Overload Protection, Overheating Protection and Prevent Short Circuit.; Widely used - High quality Switch Power Supply it is perfect for all 5V power supply 60a projects, such as WS2811 2801 WS2812B WS2813 LED Strip Pixel light, CCTV Camera, Security System, Computer Project, etc.; Enough 100W output power and 5V stable output voltage will protect your electronic products from destruction, and there isn't fan inside the case, silent running. Metal case with many holes makes heat dissipation more efficient.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

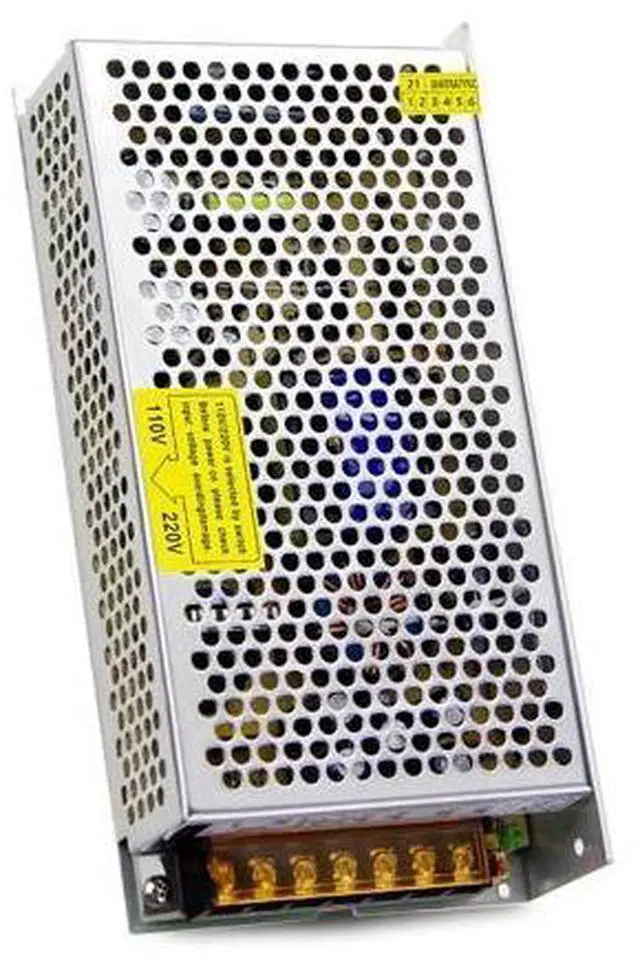

This is a beefy 5V 20A switching power supply, for when you need a lot of power! It can supply 5V DC up to 20amp, running from110V or 220V power, these will be great for people who want to power 5V LED strips or a lot of motors for a CNC project.
Parameter Input: AC110V/220V 50/60Hz
Output: DC 5V 20A 100W max Fix Screw
Hole Diameter: 2.5 mm ( 0.1 inch)
Working temperature: -10 to 50 degree Celsius
Storage temperature: -20 to 60 degree Celsius
Environmental humidity: 10-95%
Material: Metal, Electronic
Parts Safety Compliance: CCC/ FCC / CE

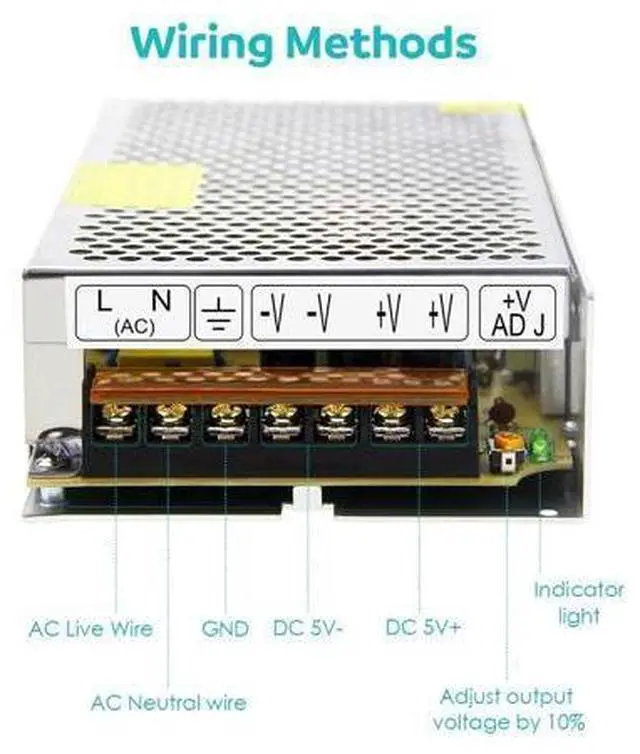

Connection instruction:
L/N: AC
power input +V: DC power output +
COM: DC power output - +V
ADJ: Adjust the output voltage (15%)

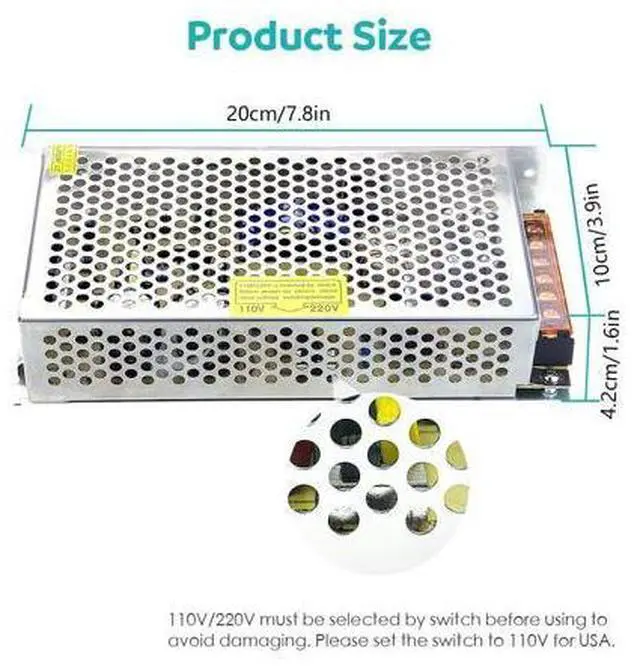

Package included: 1 x 5V 20A Switching Power Supply K indly note: 1) 110V/220V must be selected by switch before using to avoid damaging. Please change the switch to 110V for USA. 2) The power supply fan does make a noise and the speed of the fan is load based. So the higher the load, the faster the fan runs, the louder the noise. 5V20A 100W DC Converter 5V40A 200W DC Converter 5V60A 300W DC Converter 5V70A 350W DC Converter 12V30A 360W DC Converter 24V15A 360W DC Converter Customer Reviews Price Output Voltage 5V DC 5V DC 5V DC 5V DC 12V DC 24V DC Output Current 20A 40A 60A 70A 30A 15A Output Wattage 100W 200W 300W 350W 360W 360W Input Voltage 110~240V AC 110~240V AC 110~240V AC 110~240V AC 110~240V AC 110~240V AC Previous page Since 2018, we have focused on series products such as power
Parameter Input: AC110V/220V 50/60Hz
Output: DC 5V 20A 100W max Fix Screw
Hole Diameter: 2.5 mm ( 0.1 inch)
Working temperature: -10 to 50 degree Celsius
Storage temperature: -20 to 60 degree Celsius
Environmental humidity: 10-95%
Material: Metal, Electronic
Parts Safety Compliance: CCC/ FCC / CE
Connection instruction:
L/N: AC
power input +V: DC power output +
COM: DC power output - +V
ADJ: Adjust the output voltage (15%)
Package included: 1 x 5V 20A Switching Power Supply K indly note: 1) 110V/220V must be selected by switch before using to avoid damaging. Please change the switch to 110V for USA. 2) The power supply fan does make a noise and the speed of the fan is load based. So the higher the load, the faster the fan runs, the louder the noise. 5V20A 100W DC Converter 5V40A 200W DC Converter 5V60A 300W DC Converter 5V70A 350W DC Converter 12V30A 360W DC Converter 24V15A 360W DC Converter Customer Reviews Price Output Voltage 5V DC 5V DC 5V DC 5V DC 12V DC 24V DC Output Current 20A 40A 60A 70A 30A 15A Output Wattage 100W 200W 300W 350W 360W 360W Input Voltage 110~240V AC 110~240V AC 110~240V AC 110~240V AC 110~240V AC 110~240V AC Previous page Since 2018, we have focused on series products such as power
