Raspberry Pi 3 Model A+ Basic Starter Kit

The Raspberry Pi 3 Model A Plus is a board for the minimalist Pi fan.

This kit Includes the Boards and many items to get started and store your Raspberry Pi.

Like the Raspberry Pi 3 Model B+, it boasts a 64-bit quad core processor running at 1.4 GHz, dual-band 2.4 GHz and 5 GHz wireless LAN, and Bluetooth 4.3 /BLE. This low-cost Pi uses the same processor as the model 3 B+, but does away with the Ethernet jack and three of the USB ports. It's still compatible with all Pi operating systems and software, and has the exact same 40 pin GPIO connector and camera/display sockets, so any HATs or Pi Plates or other things that plug into the model B+ will work just the same.

It also has the same HDMI, sound/composite connector, and microUSB connector for power.

Unlike the Raspberry Model B+, there's only one USB port and no Ethernet jack, but it's also significantly smaller at 65mm x 56mm if you don't include overhang from the connectors. The USB port is set in and sticks up quite a bit compared to the very slim Pi Zero, if you're using HATs or bonnets with the Pi A+ that sit flat, please use some tape or a GPIO spacer to avoid shorts between the USB port and any pads on the bonnet.

This kit Includes:

Raspberry Pi 3 Model A+ Board

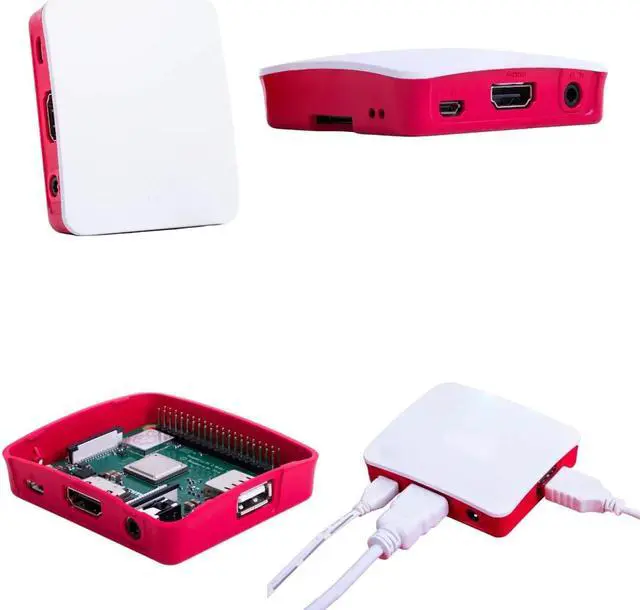

Official Raspberry Pi 3 Model A+ Case

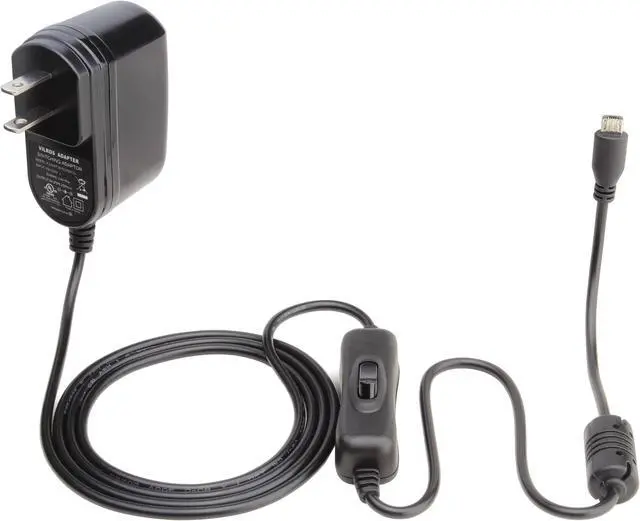

5V 2.5A Power Supply With Switch
Heatsink for Raspberry Pi
Raspberry Pi Quickstart Guide
Neoprene Storage Bag

RASPBERRY Pi 3 MODEL A PLUS TECHNICAL DETAILS:

Dimensions: 65mm x 56mm / 2.5" x 2.25"
Processor: Broadcom BCM2837B0, Cortex-A53
Connectivity: 2.4GH z and 5 GHz IEE 802.11 b/g/n/ac wireless LAN, Bluetooth 4.2 /BLE
Access: Extended 40-pin GPIO header
USB: One USB 2.0 Port - Keeping it compact means minifying the footprint as much as possible
No Ethernet Port
Video + Sound:
1 x full-size HDMI
MIPI DSI display port
MIPI CSI display port
4 pole stereo output and composite video port
Multimedia:
H. 264, MPEG-4 decode (1080p30)
H. 264 encode (1080p30)
OpenGL ES 1.1, 2.0 graphics
Memory: 512MB LPDDR2 SDRAM
SD card support: Micro SD format for loading OS and data storage
Input power:
5V/ 2.5 A DC via micro USB
5V DC via GPIO header
Operating temperature: 050ºC
