Ethernet to UART Converter for Raspberry Pi Pico, 10/100M Ethernet

Ethernet To UART Converter For Raspberry Pi Pico, 10/100M Ethernet, Enabling Network Communication Through UART
Features

Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
Onboard Ethernet to UART transparent transceiver, 2-CH UART, standalone transparent transmission for each channel
Onboard jumpers for pin configurations
Embedded Ethernet MAC and PHY layers
Bi-direction transparent data transmission between UART and Ethernet
10/100M, full-duplex/half-duplex auto-negotiation Ethernet interface, 802.3 -compliant
Auto-MDI/MDIX, detect and switch cable type automatically
Supports DHCP auto-obtained IP and DNS domain access
Network parameter configuration like chip operating mode, port, IP, via host computer software or UART command
Four operating modes: TCP CLIENT, TCP SERVER, UDP CLIENT, UDP SERVER
Full-duplex or half-duplex UART communication, supports RS485 RX/TX auto switch (external RS485 controller required)
Supports virtual serial port software (provided)
KEEPALIVE mechanism support
Comes with development resources and manual (examples for Pico/Raspberry Pi/Arduino/STM32)

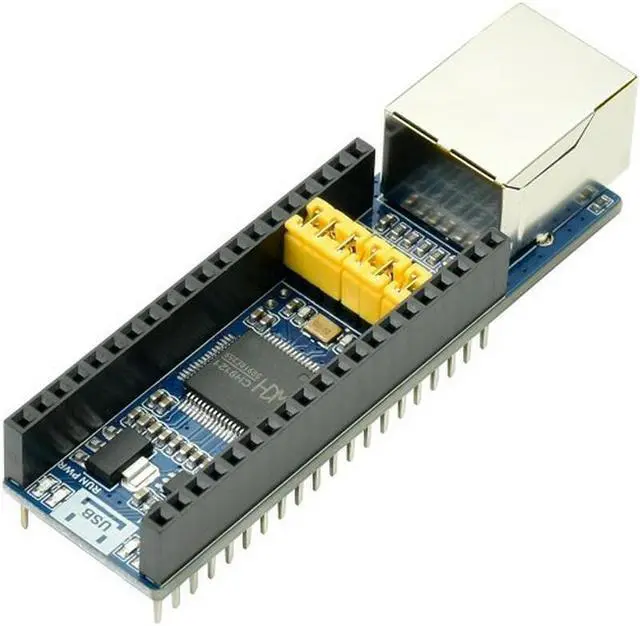

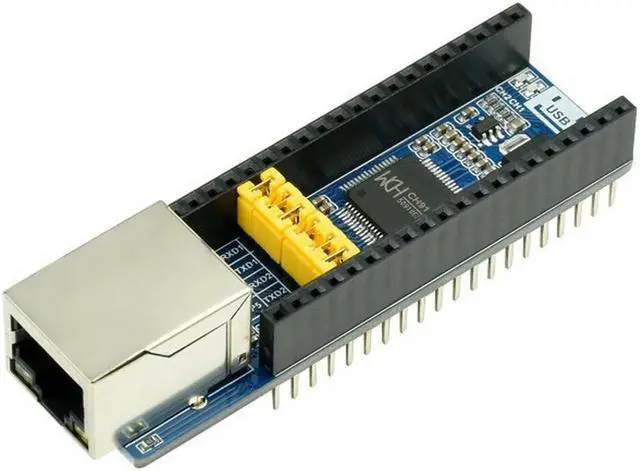

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

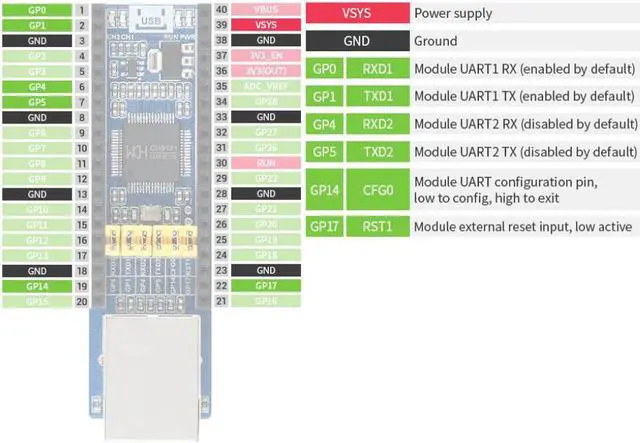

Breakout Key Pins, For Use With Other Host Boards

Specifications

OPERATING VOLTAGE 3.3V /5V
OPERATING MODE TCP/UDP
UART TTL 3.3V / 5V compatible
OPERATING TEMPERATURE -40 ~ 85
OPERATING CURRENT 140mA
BAUDRATE 300bps ~ 921.6K bps

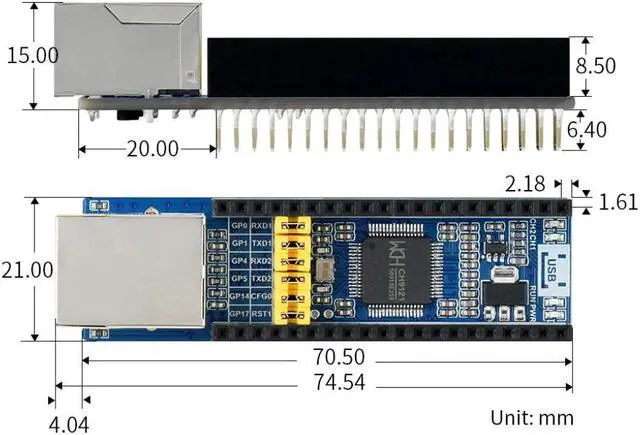

DIMENSIONS 74.54 × 21.00 (mm)
STORAGE CONDITION -55 ~ 125
