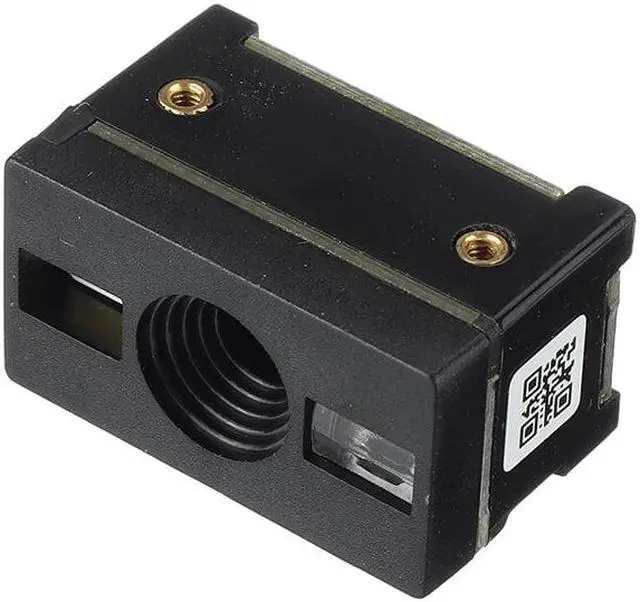

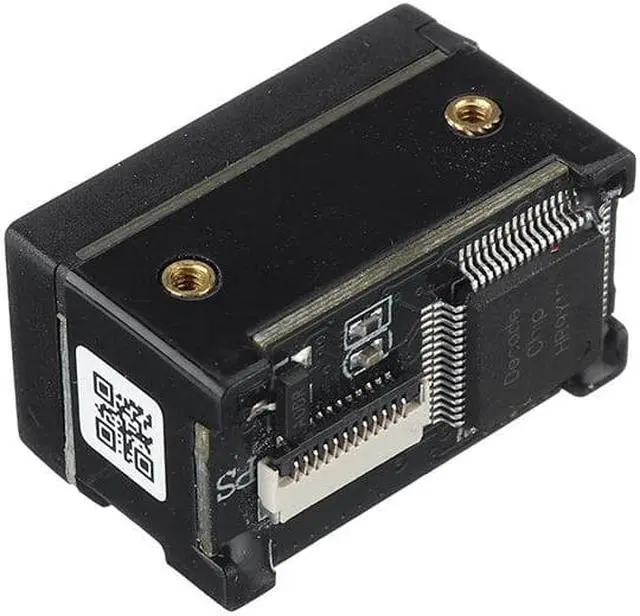

GM65-S 1D/QR/2D Bar Code Scanner QR Code Reader Barcode Reader Module USBUART

>>>Manual: Click here to open<<<

Specifications:

Model

GM65S

Type

Barcode Scanner

Decoding Ability

1D: EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5, ,postal code ect

2D: PDF417,QR Code ,Data Matrix ect

Interface

USB2.0 UART

Resolution

0.10mm (4mil)

Operating Voltage

3V

Operating Current

120mA

Weight

7g

Size

21.4*13.5*11.8mm

Type of Illuminant

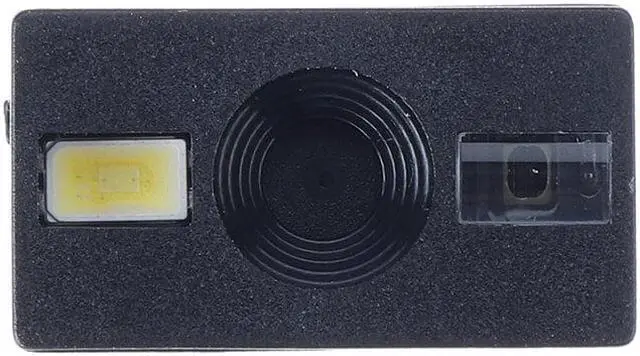

617nm LED(Aimer), 6500K LEDs(Illumination)

LED Indicator:Buzzer and bi-color light:

Red-power, Blue-decoding Successfully

Scan Angle

0-360°, Pitch:±65°or greater, Yaw:±60°or greater

Scanning angle Inclination angle

34°, Elevation angle 26°

Print Contrast

30% minimum reflective difference

Reading Distance

25 - 250mm

Operating Temperature

-20 degrees to 55 degrees

Storage Temperature

-40 degrees to 65 degrees

Temperature Humidity

5% to 95% Relative humidity, Non-condensing

Light Levels

0-85000LUX

Package Included:

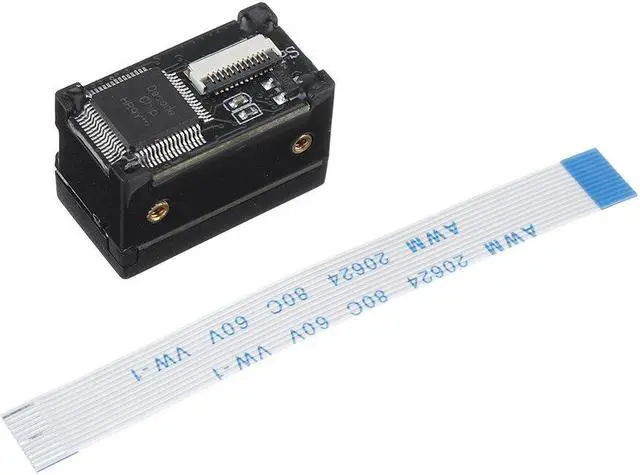

1 x GM65-S 1D/QR/2D Bar Code Scanner

Model

GM61

GM63D

GM73

GM65-S

GM65

GM66

GM67

GM68

GM72

Interface

UART

USB/UART

USB/UART

USB/UART

USB/UART

USB/UART

USB/UART

USB/UART

USB/UART

Resolution

8 mil

6 mil

6 mil

0.1mm(4 mil )

0.1mm(4 mil )

0.1mm(4 mil )

5 mil

6 mil

6 mil

Operating Voltage

3.3V

5V

5V

3V

5V

5V

5V

3.3V

5V

Operating Current

58mA

90mA

90mA

120mA

120mA

120mA

180mA

100mA

100mA

Weight

3g

15g

15g

7g

13g

31g

13g

6g

27g

Size
