GRT8-M 16A Multifunction Timer Relay with 10 Function Choices AC DC 12V 24V 220V 230V Time Relay

Description:

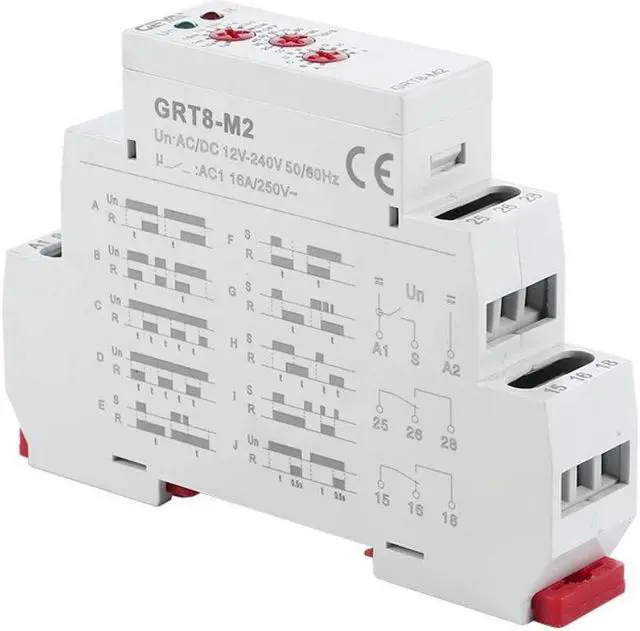

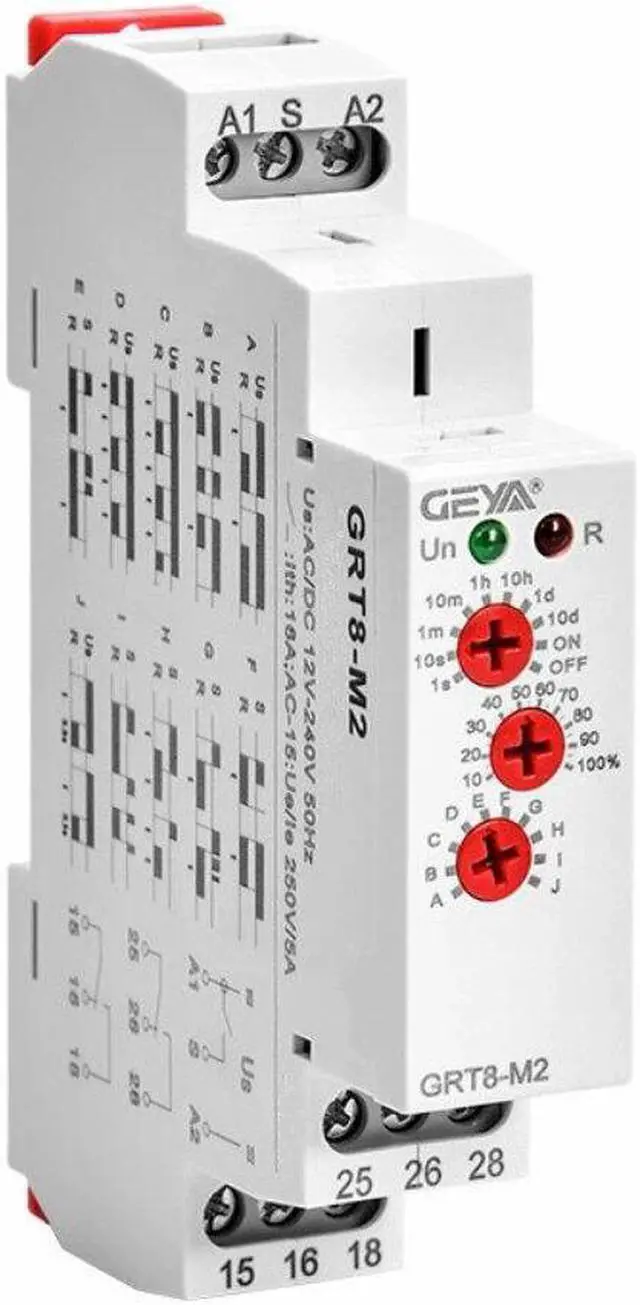

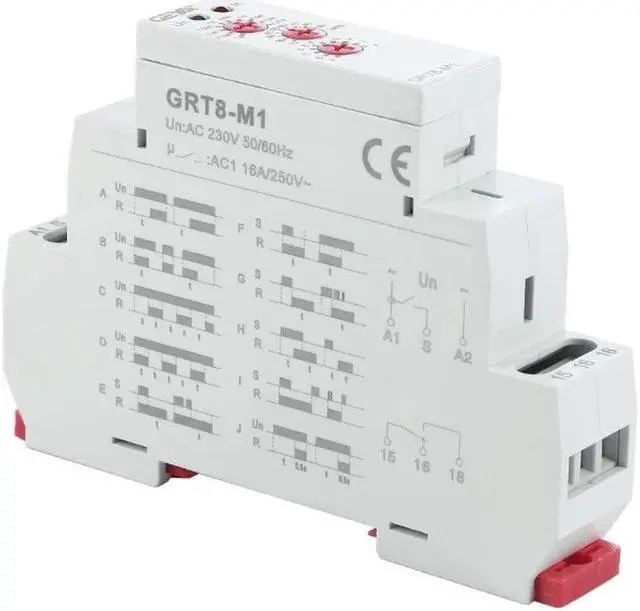

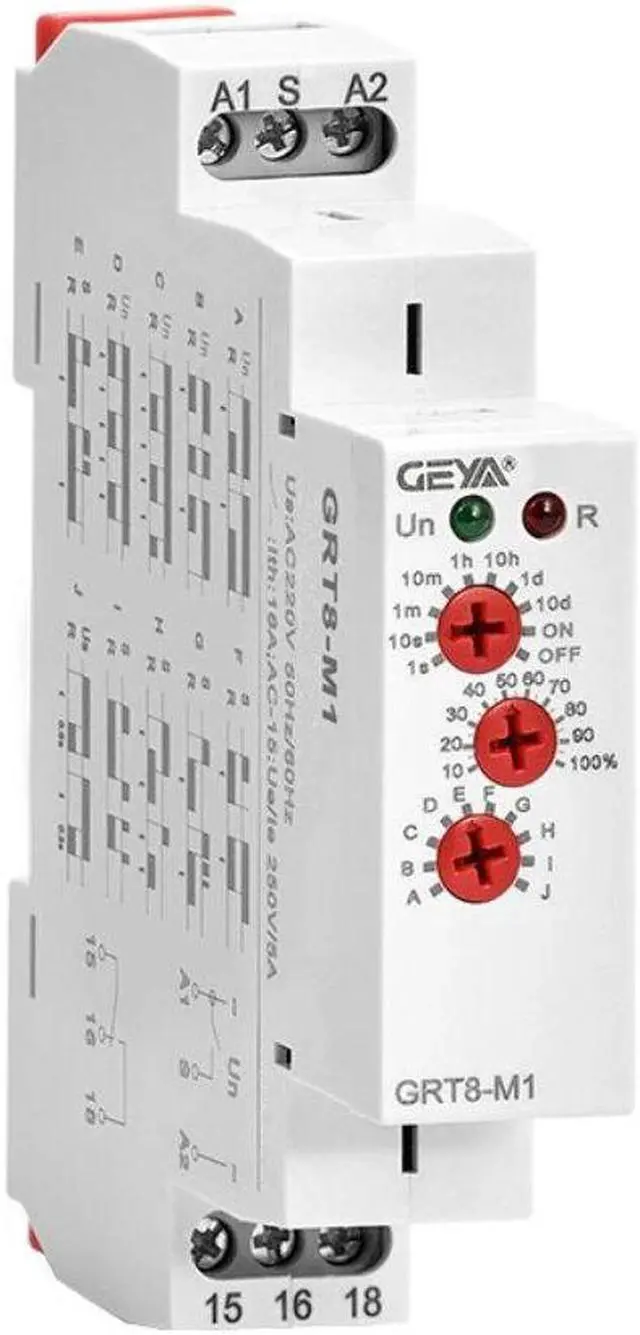

- GRT8-M Multifunction Time Relay

- Voltage Range: AC220V or AC/DC12-240V

- Output: 16A 1SPDT (GRT8-M1) or 2SPDT (GRT8-M2)

-10 Functions:

5 time functions controlled by supply voltage  ( A B C D J )

4 time functions controlled by control input ( E F G H )

1 function of latching relay  ( I )

-Time scale 0.1 s - 10 days divided into 10 ranges, setting by Potentionmeter.

0.1-1s, 1-10s, 6-60s, 1-10min, 6-60min, 1-10hr, 0.1-1day, 1-10day, only on, only off

- 1-MODULE 18mm, DIN rail mounting, convenient install.

Multifunction time relay can be used for electrical appliances, control of lights, heating, motors, pumps and fans (10 functions, 10 time ranges, multi-voltage).

Package included:

1 x  GRT8-M 16A Multifunction Timer Relay
