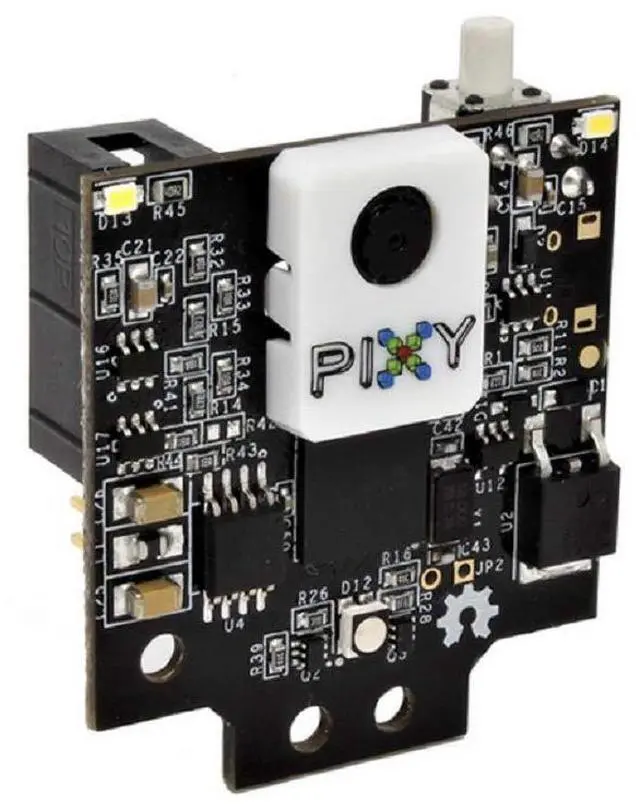

1pc Pixy2 CMUcam5 Smart Vision Sensor
- Dimensions 42mm x 38mm x 15mm Weight G.W 20g N.W 10g Battery Exclude Processor NXP LPC4330, 204 MHz, dual core Image sensor Aptina MT9M114, 1296×976 resolution with integrated image flow processor Lens field-of-view 60 degrees horizontal, 40 degrees vertical; Power consumption 140 mA typical Power input USB input (5V) or unregulated input (6V to 10V) RAM 264K bytes Flash 2M bytes Available data outputs UART serial, SPI, I2C, USB, digital, analog Integrated light source, approximately 20 lumens; Part List Pixy 2 CMUcam5 Image Sensor 1 FC-10P to FC-6P Cable 1 Screw Package 1 ECCN/HTS ECCN 6A993 HSCODE 9031900090
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Dimensions 42mm x 38mm x 15mm Weight G. W 20g N. W 10g Battery Exclude Processor NXP LPC4330, 204 MHz, dual core Image sensor Aptina MT9M114, 1296×976 resolution with integrated image flow processor Lens field-of-view 60 degrees horizontal, 40 degrees vertical; Power consumption 140 mA typical Power input USB input (5V) or unregulated input (6V to 10V) RAM 264K bytes Flash 2M bytes Available data outputs UART serial, SPI, I2C, USB, digital, analog Integrated light source, approximately 20 lumens; Part List Pixy 2 CMUcam5 Image Sensor 1 FC-10P to FC-6P Cable 1 Screw Package 1 ECCN/HTS ECCN 6A993 HSCODE 9031900090
