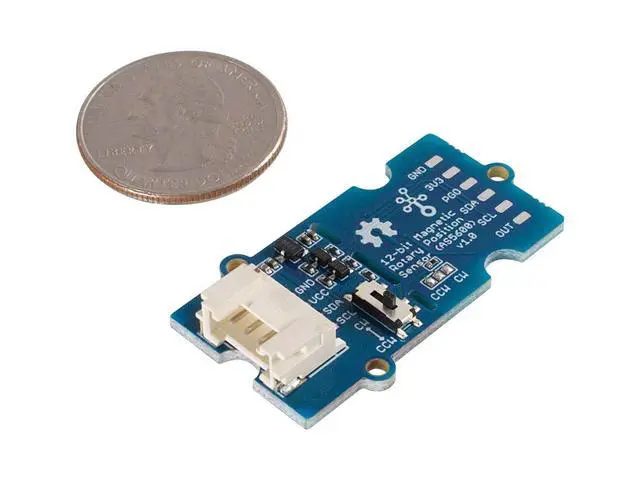

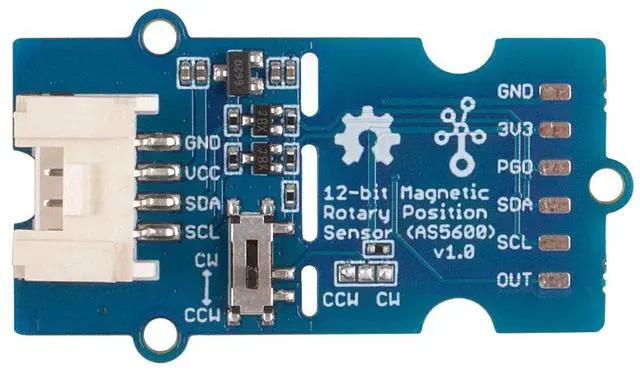

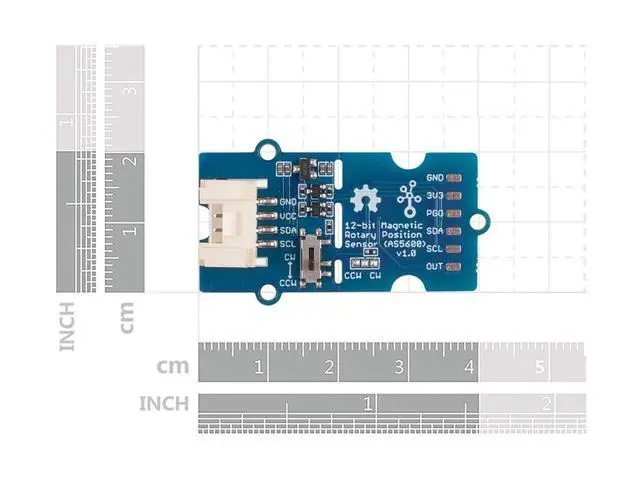

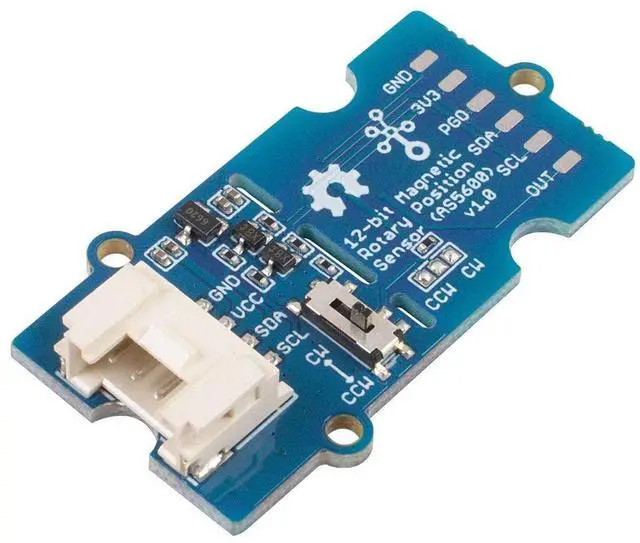

1pc Grove - 12-bit Magnetic Rotary Position Sensor/Encoder (AS5600)
- Attention The AS5600 has certain requirements for the magnetic field to be measured. Please use a magnet similar in size to the chip. The module should be measured as close as possible to the magnetic field and the AS5600 sensor center should be aligned with the center of the magnetic field. The vertical distance is preferably from 0.5 mm to 3 mm.; Non-contact, no rotation angle limitation 12-bit high-resolution, 4096 positions per round Grove I2C, PWM/Analog Output Great flexibility on angular excursion: Maximum angle programmable from 18° up to 360°; Applications Motor closed-loop control Robot arm Tripod head Industrial machine control; Part list:1*Grove - 12-bit Magnetic Rotary Position Sensor/Encoder (AS5600)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Attention The AS5600 has certain requirements for the magnetic field to be measured. Please use a magnet similar in size to the chip. The module should be measured as close as possible to the magnetic field and the AS5600 sensor center should be aligned with the center of the magnetic field. The vertical distance is preferably from 0.5 mm to 3 mm.; Non-contact, no rotation angle limitation 12-bit high-resolution, 4096 positions per round Grove I2C, PWM/Analog Output Great flexibility on angular excursion: Maximum angle programmable from 18° up to 360°; Applications Motor closed-loop control Robot arm Tripod head Industrial machine control;
Part list: 1*Grove - 12-bit Magnetic Rotary Position Sensor/Encoder (AS5600)
Part list: 1*Grove - 12-bit Magnetic Rotary Position Sensor/Encoder (AS5600)
