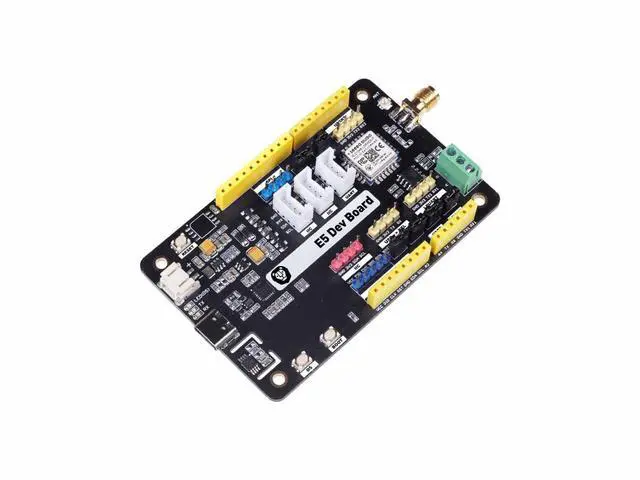

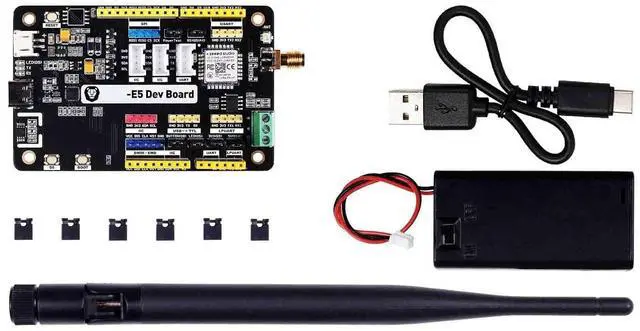

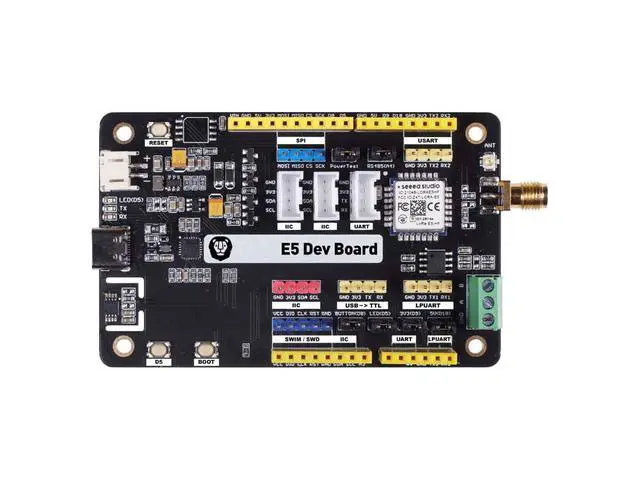

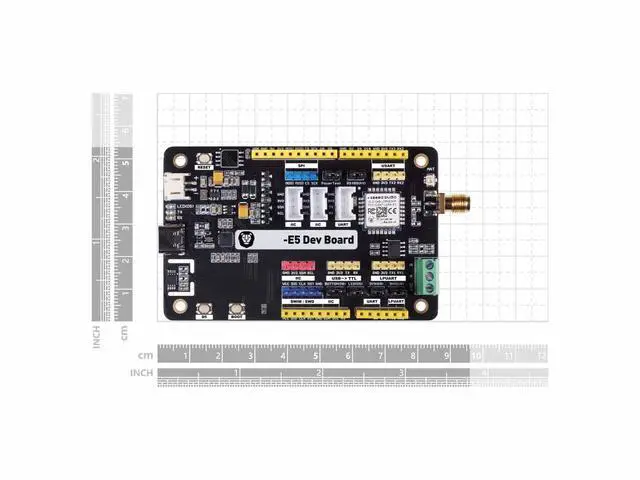

1set Wio-E5 Dev Kit LoRaWAN Development Board with STM32WLE5JC, ARM Cortex-M4, RS485, Grove Interfaces, EU868/US915
- HIGH PERFORMANCE: Transmit power up to 22dBm at 868/915MHz with sensitivity as low as -136.5dBm for SF12 with 125KHz bandwidth.; LONG-RANGE CONNECTIVITY: 158dB link budget enables transmission distances up to 10km in open areas, ideal for wide-area IoT deployments.; VERSATILE INTERFACES: Features USB Type-C, RS485, three Grove connectors (I2C x2, UART x1), SMA-K, and IPEX for flexible sensor and module integration.; ULTRA-LOW POWER CONSUMPTION: Sleep current as low as 2.1uA in WOR mode with a wide working temperature range of -40°F to 185°F.; BROAD PROTOCOL SUPPORT: Supports LoRaWAN, (G)FSK, (G)MSK, and BPSK modulations across global frequency plans including EU868, US915, AU915, AS923, KR920, and IN865.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
HIGH PERFORMANCE: Transmit power up to 22dBm at 868/915MHz with sensitivity as low as - 136.5 dBm for SF12 with 125KHz bandwidth.;
LONG-RANGE CONNECTIVITY: 158dB link budget enables transmission distances up to 10km in open areas, ideal for wide-area IoT deployments.;

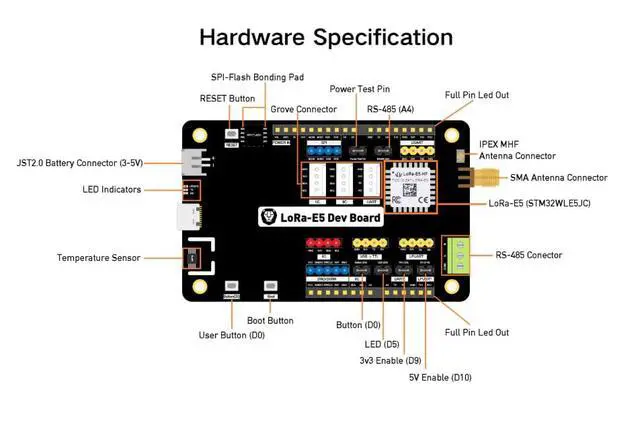

VERSATILE INTERFACES: Features USB Type-C, RS485, three Grove connectors (I2C x2, UART x1), SMA-K, and IPEX for flexible sensor and module integration.;
ULTRA-LOW POWER CONSUMPTION: Sleep current as low as 2.1 uA in WOR mode with a wide working temperature range of -40°F to 185°F.;
BROAD PROTOCOL SUPPORT: Supports LoRaWAN, (G) FSK, (G) MSK, and BPSK modulations across global frequency plans including EU868, US915, AU915, AS923, KR920, and IN865.
LONG-RANGE CONNECTIVITY: 158dB link budget enables transmission distances up to 10km in open areas, ideal for wide-area IoT deployments.;
VERSATILE INTERFACES: Features USB Type-C, RS485, three Grove connectors (I2C x2, UART x1), SMA-K, and IPEX for flexible sensor and module integration.;
ULTRA-LOW POWER CONSUMPTION: Sleep current as low as 2.1 uA in WOR mode with a wide working temperature range of -40°F to 185°F.;
BROAD PROTOCOL SUPPORT: Supports LoRaWAN, (G) FSK, (G) MSK, and BPSK modulations across global frequency plans including EU868, US915, AU915, AS923, KR920, and IN865.
