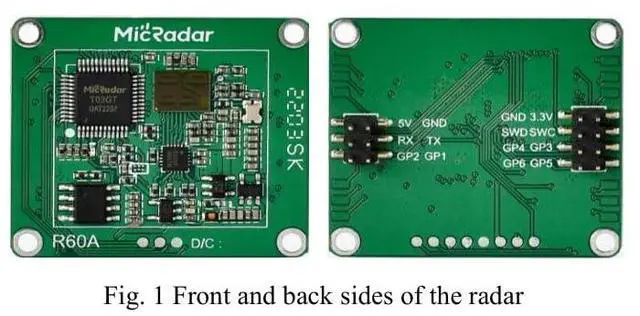

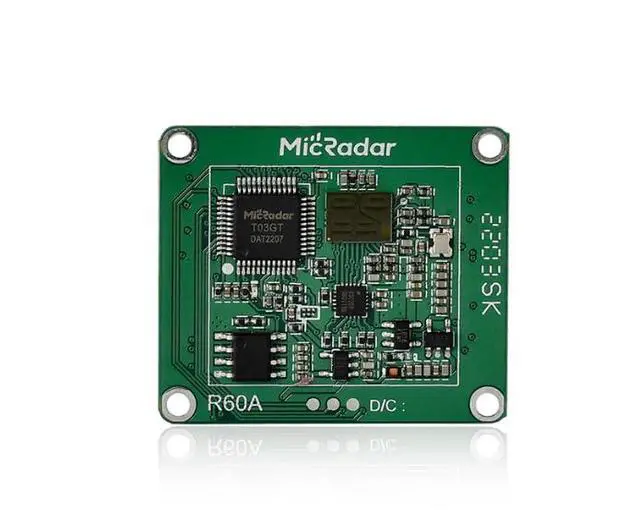

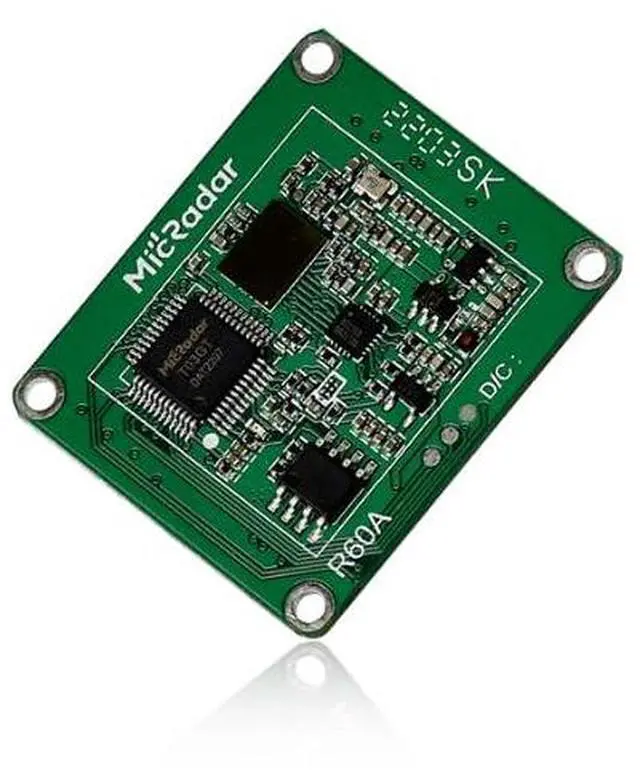

1pc 60G Multi-Person Trajectory Radar R60AMP1, Millimeter-Wave Motion Sensor, 5m Tracking Range, 60-61.5GHz,with JU01 Serial Port Adapter Board
- MILLIMETER-WAVE RADAR TECHNOLOGY: 60-61.5GHz frequency radar module provides precise distance, angle and speed sensing of human motion with 6dBm transmission power.; MULTI-TARGET TRACKING: Tracks up to 2 persons simultaneously with real-time trajectory monitoring up to 16.4 feet, detecting both active movement and static positions up to 13.1 feet.; ADVANCED DETECTION CAPABILITIES: 1T3R FMCW signal processing detects motion orientation changes and subtle chest expansion for breathing detection, maintaining coordinate lock on stationary persons.; FLEXIBLE INSTALLATION: Horizontal mounting with 100-degree coverage in both horizontal and elevation planes, detection range of 3.3-4.9 feet, compact size 1.38 x 1.18 x 0.2 inches.; INTEGRATED PROCESSOR OUTPUT: Built-in algorithm processor delivers direct results via serial port or high/low level output, penetrates low-density objects like thin wooden planks, operates on 3.3V at 93mA.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
MILLIMETER-WAVE RADAR TECHNOLOGY: 60- 61.5GH z frequency radar module provides precise distance, angle and speed sensing of human motion with 6dBm transmission power.;
MULTI-TARGET TRACKING: Tracks up to 2 persons simultaneously with real-time trajectory monitoring up to 16.4 feet, detecting both active movement and static positions up to 13.1 feet.;
ADVANCED DETECTION CAPABILITIES: 1T3R FMCW signal processing detects motion orientation changes and subtle chest expansion for breathing detection, maintaining coordinate lock on stationary persons.;
FLEXIBLE INSTALLATION: Horizontal mounting with 100-degree coverage in both horizontal and elevation planes, detection range of 3.3 - 4.9 feet, compact size 1.38 x 1.18 x 0.2 inches.;

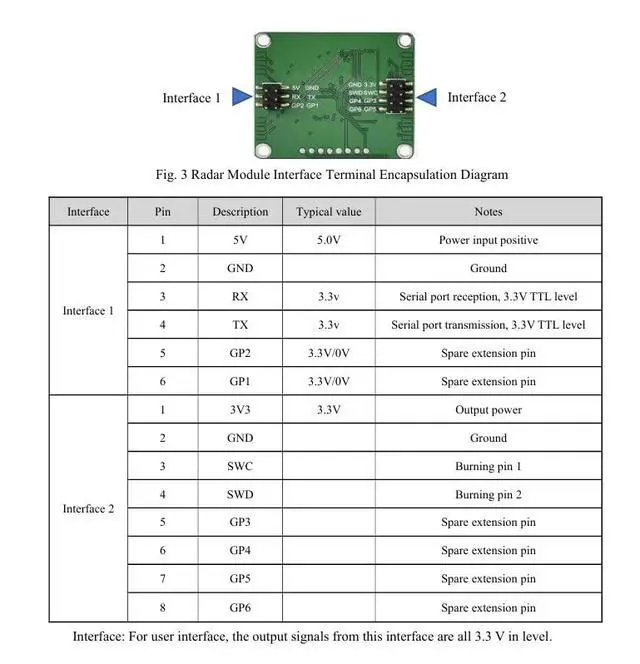

INTEGRATED PROCESSOR OUTPUT: Built-in algorithm processor delivers direct results via serial port or high/low level output, penetrates low-density objects like thin wooden planks, operates on 3.3V at 93mA.
MULTI-TARGET TRACKING: Tracks up to 2 persons simultaneously with real-time trajectory monitoring up to 16.4 feet, detecting both active movement and static positions up to 13.1 feet.;
ADVANCED DETECTION CAPABILITIES: 1T3R FMCW signal processing detects motion orientation changes and subtle chest expansion for breathing detection, maintaining coordinate lock on stationary persons.;
FLEXIBLE INSTALLATION: Horizontal mounting with 100-degree coverage in both horizontal and elevation planes, detection range of 3.3 - 4.9 feet, compact size 1.38 x 1.18 x 0.2 inches.;
INTEGRATED PROCESSOR OUTPUT: Built-in algorithm processor delivers direct results via serial port or high/low level output, penetrates low-density objects like thin wooden planks, operates on 3.3V at 93mA.
