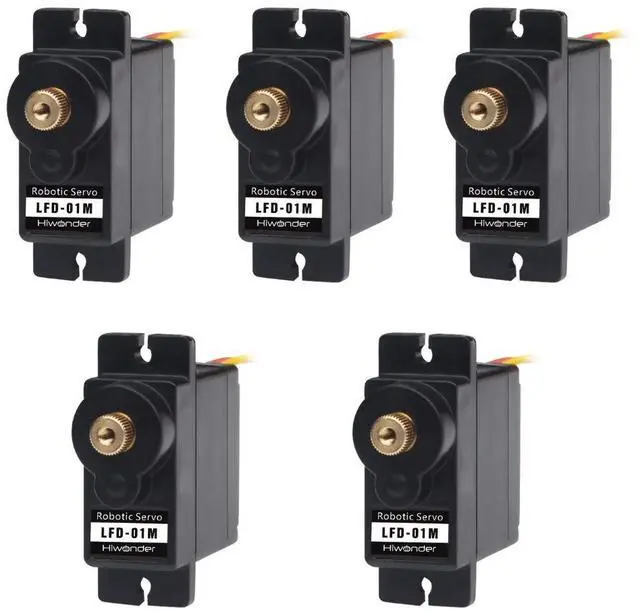

9G Servo Metal Gear Micro servo Motor Anti Blocking servo for Robot DIY Making, LFD-01M, 5PCS
- Weight: 0.32OZ / 9G
- Product size: 0.9*0.5*0.9 IN / 22.3*12*23.2mm
- No-load current: 50mA
- Locked rotor current: 700mA
- Stalled rotor torque: 1.5kg.cm 4.8V
- 1.8kg.cm 6V
- Rotation speed: 0.12sec/60°4.8V
- 0.10sec/60°6V
- Operating Voltage:4.8V-6V
- PWM pulse width range: 500~2500us, corresponding to 0~180°
- Rotation range: 0~180°
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Weight: 0.32OZ / 9G.
Product size: 0.9 * 0.5 * 0.9 IN / 22.3 *12* 23.2 mm.
No-load current: 50mA.
Locked rotor current: 700mA..
Stalled rotor torque: 1.5 kg. cm 4.8V. 1.8 kg. cm 6V.
Rotation speed: 0.12 sec/60° 4.8V. 0.10 sec/60°6V.
Operating Voltage: 4.8V -6V..
PWM pulse width range: 500~2500us, corresponding to 0~180°.
Rotation range: 0~180°
Product size: 0.9 * 0.5 * 0.9 IN / 22.3 *12* 23.2 mm.
No-load current: 50mA.
Locked rotor current: 700mA..
Stalled rotor torque: 1.5 kg. cm 4.8V. 1.8 kg. cm 6V.
Rotation speed: 0.12 sec/60° 4.8V. 0.10 sec/60°6V.
Operating Voltage: 4.8V -6V..
PWM pulse width range: 500~2500us, corresponding to 0~180°.
Rotation range: 0~180°
