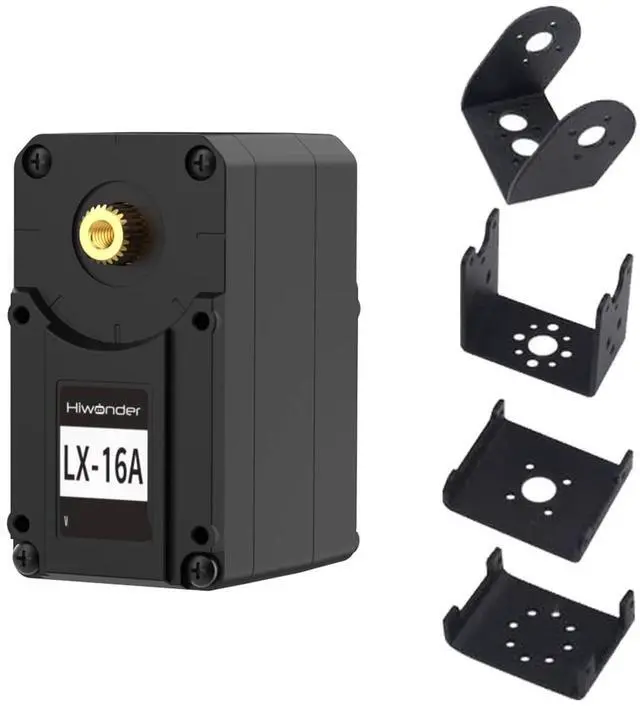

LX-16A Serial Bus Servo with Bracket, Dual Bearing Full Metal Gear Steering Servo with Debug System for RC Robot DIY, High Torque Servo 17KG.CM 6V - 19.5KG.CM 7.4V, Control Angle 240°
- 17kg large torque. 15 kg/cm (208 oz/in) 6.6V
- 17 kg/cm (236 oz/in) 7.4V. We provide communication protocol and detailed video tutorials
- Real-time feedback of position, temperature, voltage. The top of the servo has a warning light, and the indicator will flash if the internal of servo is abnormal

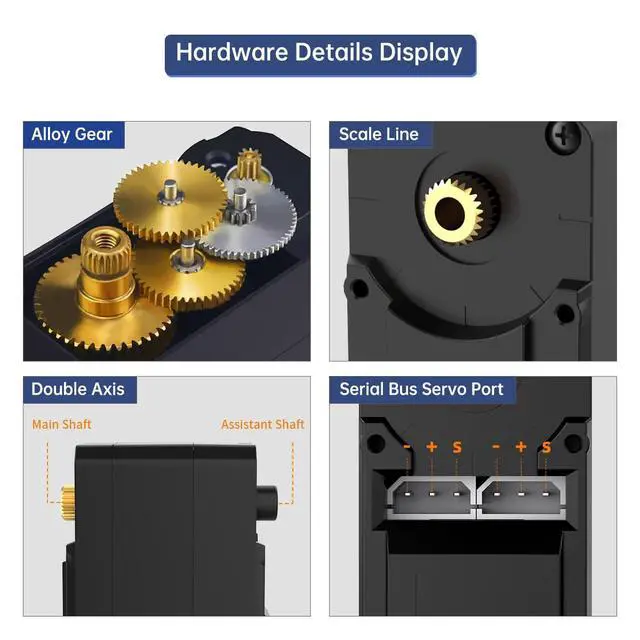

- Full metal gear. it's better for accuracy, service life has been greatly increased. Dual ball bearing: one is the driving ball bearing, one is the assistant ball bearing(support role)

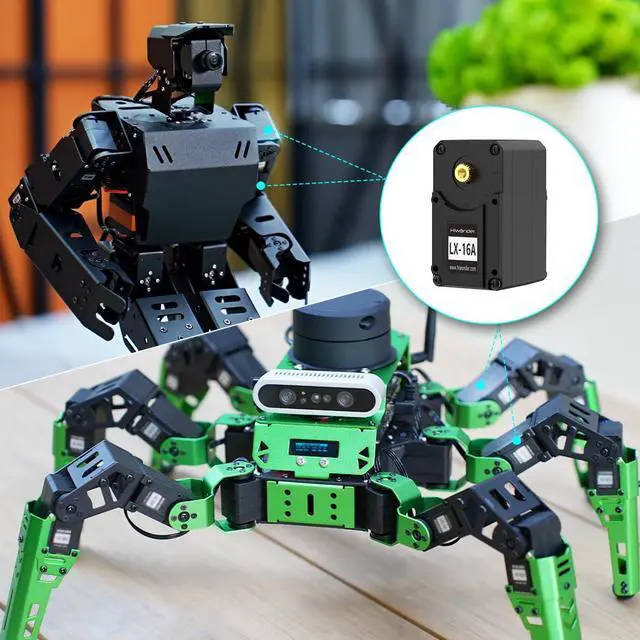

- Using high-precision potentiometer with new design. Accuracy and linearity have been greatly improved! Accurate movement can satisfy the needs of making robots

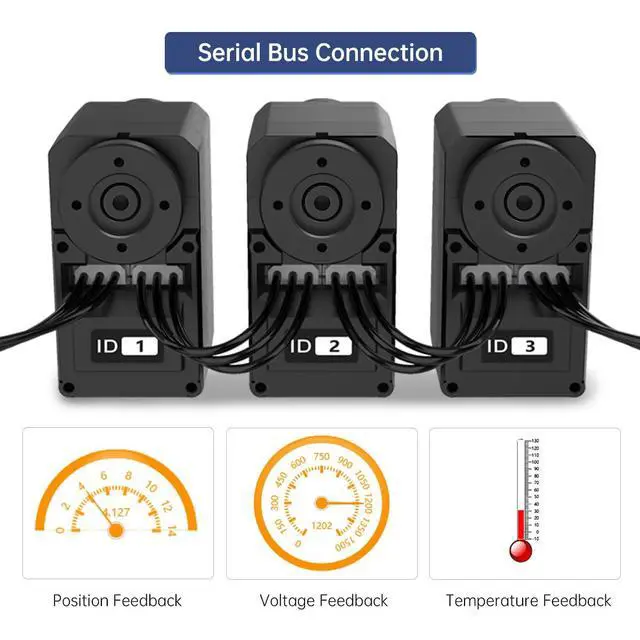

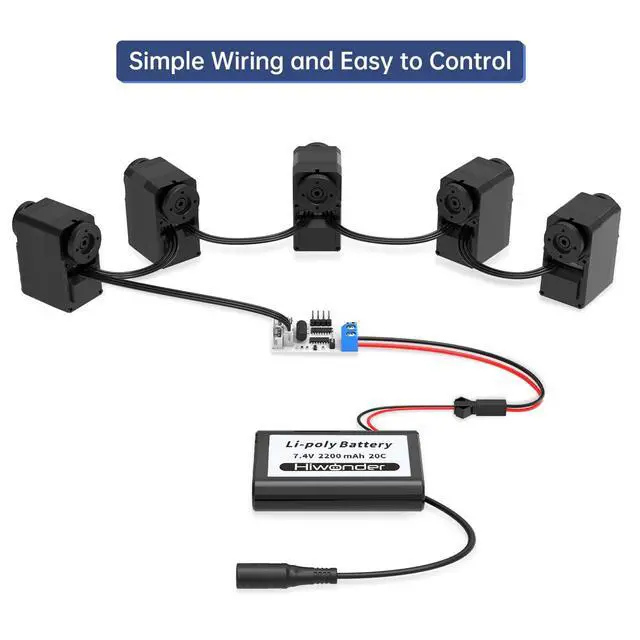

- The control board use a I/O port to connect the serial servo, servos are connected in series through a dual interface, which reduce the use of serial ports. Simple wiring make product more simple, Exquisite, attractive
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
17kg large torque. 15 kg/cm (208 oz/in) 6.6V. 17 kg/cm (236 oz/in) 7.4V. We provide communication protocol and detailed video tutorials. Real-time feedback of position, temperature, voltage. The top of the servo has a warning light, and the indicator will flash if the internal of servo is abnormal. Full metal gear. it's better for accuracy, service life has been greatly increased.
Dual ball bearing: one is the driving ball bearing, one is the assistant ball bearing (support role). Using high-precision potentiometer with new design. Accuracy and linearity have been greatly improved! Accurate movement can satisfy the needs of making robots. The control board use a I/O port to connect the serial servo, servos are connected in series through a dual interface, which reduce the use of serial ports. Simple wiring make product more simple, Exquisite, attractive
Dual ball bearing: one is the driving ball bearing, one is the assistant ball bearing (support role). Using high-precision potentiometer with new design. Accuracy and linearity have been greatly improved! Accurate movement can satisfy the needs of making robots. The control board use a I/O port to connect the serial servo, servos are connected in series through a dual interface, which reduce the use of serial ports. Simple wiring make product more simple, Exquisite, attractive
