26-90" FULL MOTION TV MOUNT
How to choose the right mount for 65 inch TV?

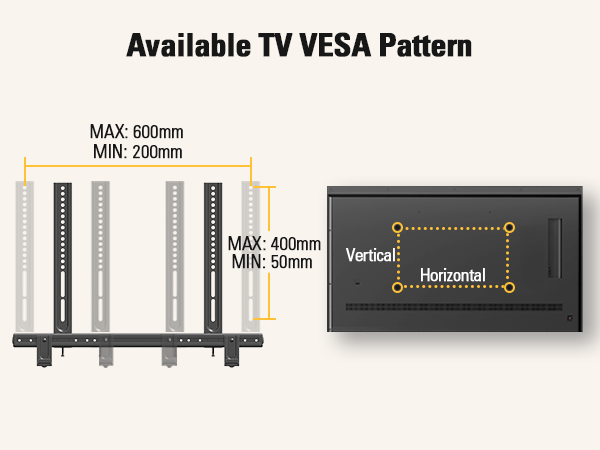

1.TV VESA Pattern
Firstly, get acknowledged of the available VESA Patterns of the TV Mount. Kindly noted that: VESA=HORIZONTALXVERTICAL.
2.TV Weight
Secondly, double check the weight of TV (without stand) through the TV manual, and make sure not to exceed the max loading weight of the TV wall mount
3.Possible Blocked Inputs
Then, check the inputs location and ensure TV mount won't block ports.
4.Wood Stud Spacing
Finally, please check the wood stud location and spacing for centering the TV.

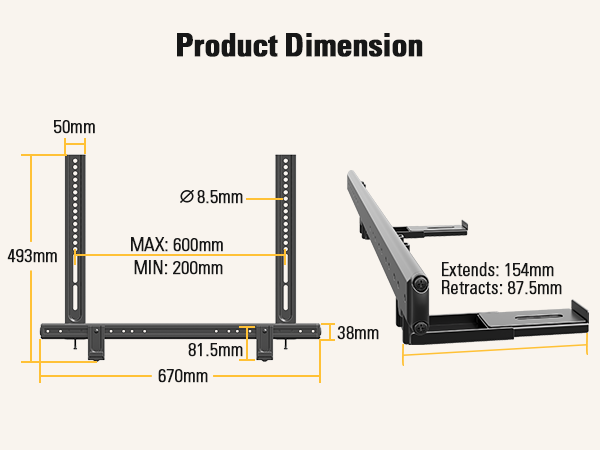

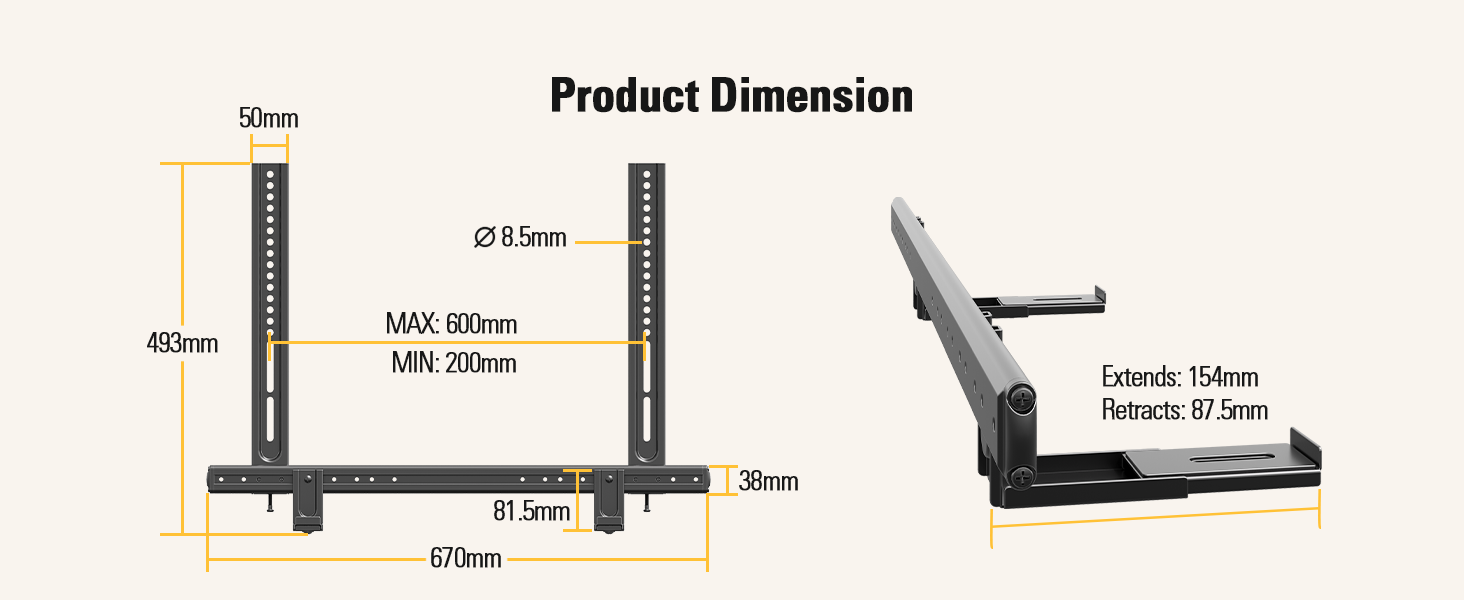

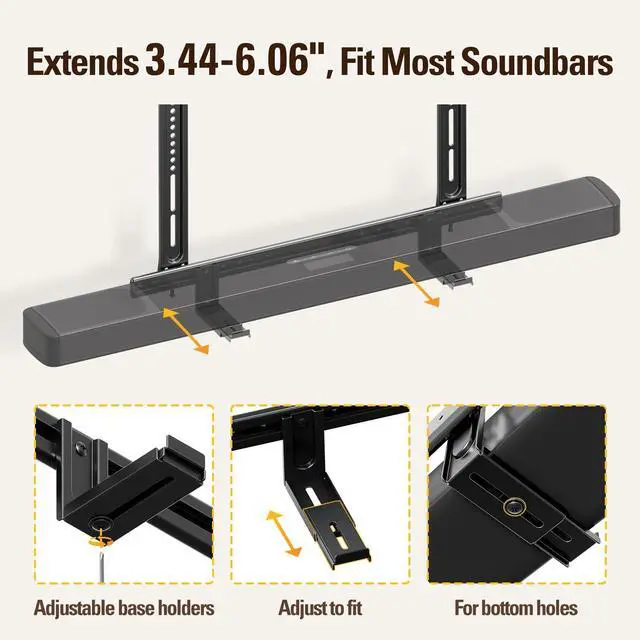

- The adjustable base holder extends 6.06"/154mm and retracts back to 3.44"/87.5mm for fitting different widths of sound bars.

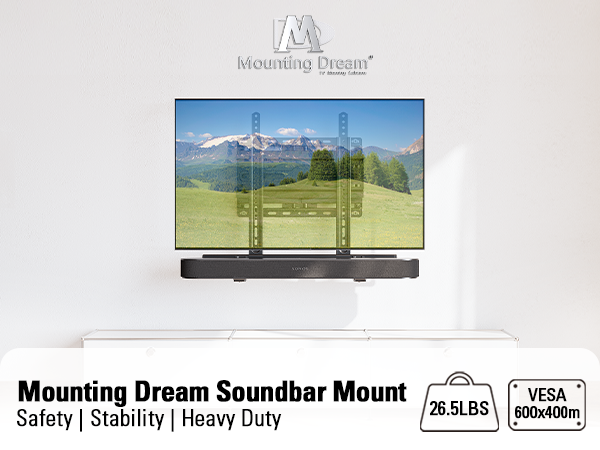

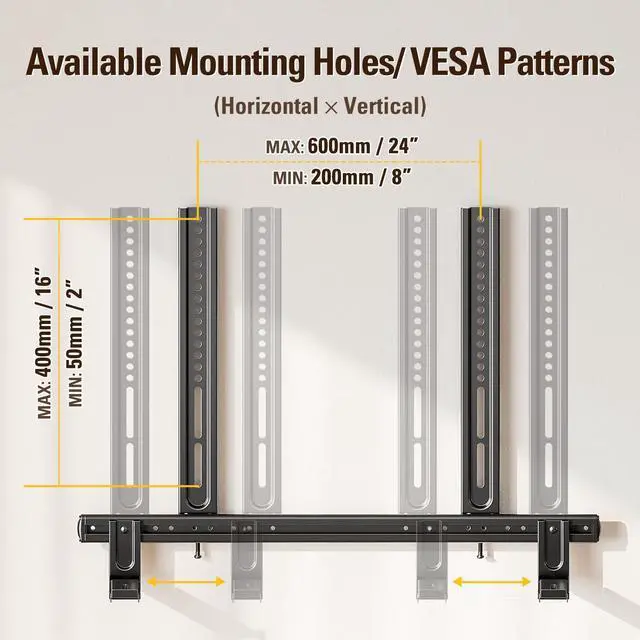

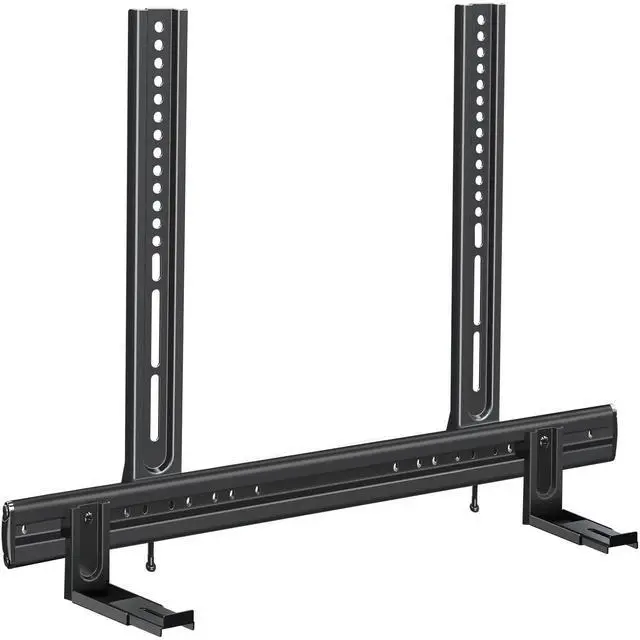

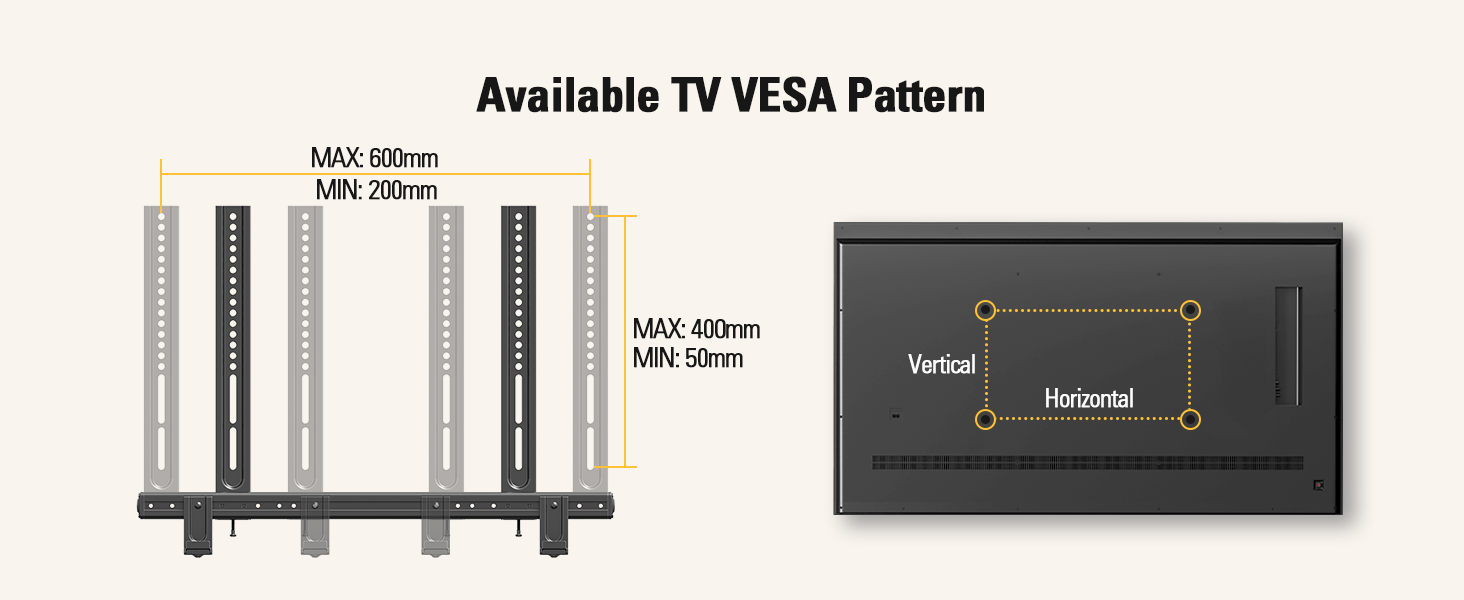

- Heavy duty sound bar mounting bracket holds soundbar up to 26.5lbs, fits TV VESA/mounting holes spacing from 200x50mm to 600x400mm.
Notice:
- This Soundbar Mount is NOT suitable for Sony HT-A5000.

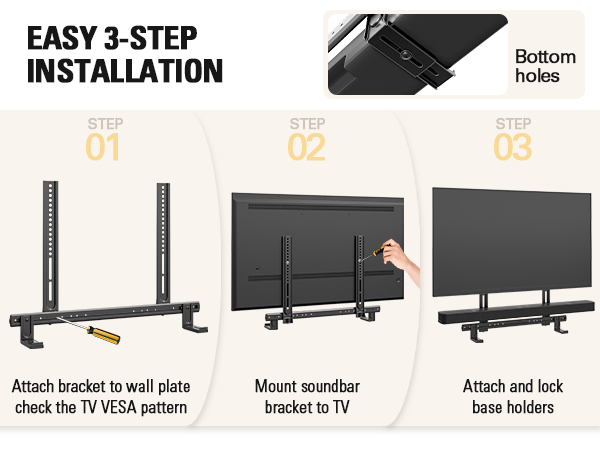

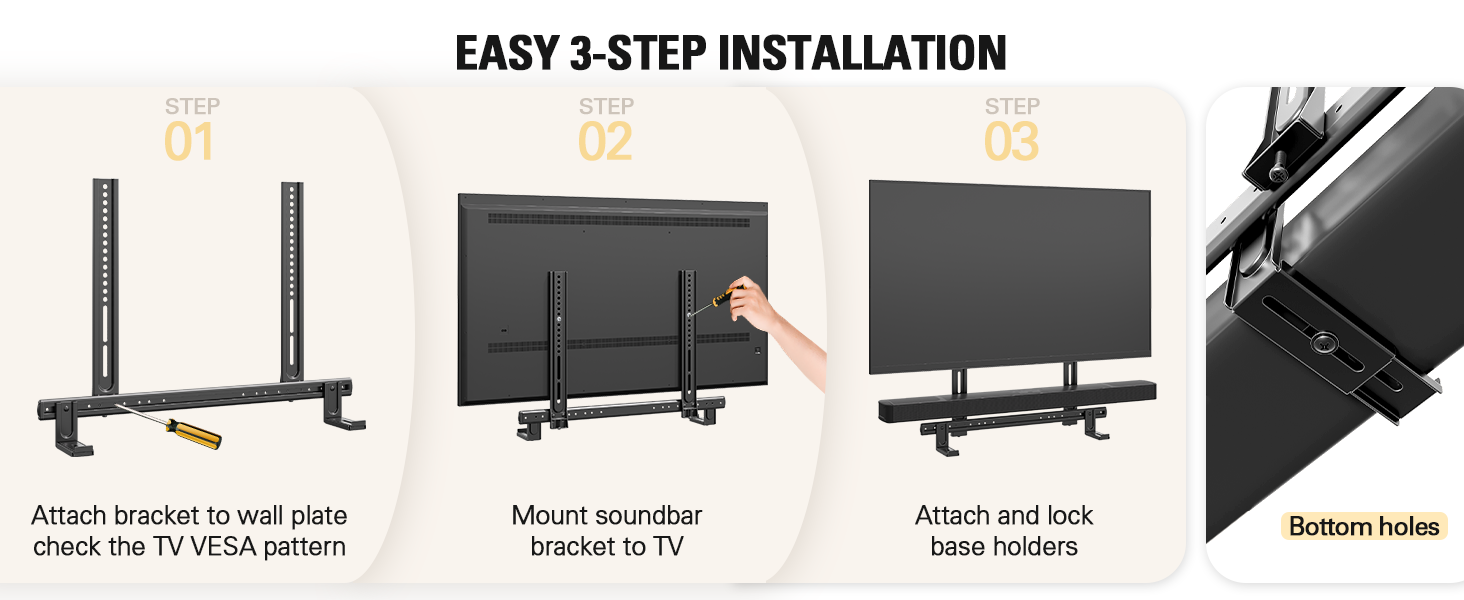

- For Sony HT-A7000, it is suitable for installation without holes. The horizontal bracket of MD5428 is 600mm. The soundbar Sony HT-A7000 is much wider where the mounting holes are approximately 31" inches apart and not within the (600mm = 24" inch) horizontal width with our sold packages. The correct installation method is to adjust the screw of L-bracket, lay the soundbar over the L-Bracket. And then shorten the length of L-bracket, clamp it tightly and then fix the screws. If you need a installation with holes, please let us know, so we can customize it for you.
- For soundbars without installation holes, we have velcro straps to help secure the soundbar, velcro straps will send per request.
Package Includes:
1x Soundbar mount, All necessary mounting hardware, 1x User manual
More Soundbar Mount Bracket Recommended from Mounting Dream
 MD5428 |  MD5425 |  MD5420 |  MD5421 |  MD5426 | |
|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — |
Price | — | — | — | — | — |
Compatibility | For Heavy Soundbars | Universal Soundbar Mount | For Light Soundbars | For TV with protrude | For Sonos Beam Only |
Max Loading | 26.5 LBS | 20 LBS | 15 LBS | 15 LBS | 13 LBS |
Max TV VESA | 600 x 400mm | 800 x 400mm | 600 x 400mm | 600 x 400mm | 600 x 400mm |
Fits most TV Mounts | ? | ? | ? | ? | ? |
Soundbar Mounting Holes | With Holes / Without Holes | With Holes / Without Holes | On the back/ bottom | On the back/ bottom | On the bottom/beneath |
- The adjustable base holder extends 6.06"/154mm and retracts back to 3.44"/87.5mm for fitting different widths of sound bars.
- Heavy duty sound bar mounting bracket holds soundbar up to 26.5lbs, fits TV VESA/mounting holes spacing from 200x50mm to 600x400mm.
Notice:
- This Soundbar Mount is NOT suitable for Sony HT-A5000.
- For Sony HT-A7000, it is suitable for installation without holes. The horizontal bracket of MD5428 is 600mm. The soundbar Sony HT-A7000 is much wider where the mounting holes are approximately 31" inches apart and not within the (600mm = 24" inch) horizontal width with our sold packages. The correct installation method is to adjust the screw of L-bracket, lay the soundbar over the L-Bracket. And then shorten the length of L-bracket, clamp it tightly and then fix the screws. If you need a installation with holes, please let us know, so we can customize it for you.
- For soundbars without installation holes, we have velcro straps to help secure the soundbar, velcro straps will send per request.
Package Includes:
1x Soundbar mount, All necessary mounting hardware, 1x User manual
More Soundbar Mount Bracket Recommended from Mounting Dream
MD5428 | MD5425 | MD5420 | MD5421 | MD5426 |
|---|---|---|---|---|
| Customer Reviews | ||||
| — | — | — | — | — |
| Price | ||||
| — | — | — | — | — |
| Compatibility | ||||
| For Heavy Soundbars | Universal Soundbar Mount | For Light Soundbars | For TV with protrude | For Sonos Beam Only |
| Max Loading | ||||
| 26.5 LBS | 20 LBS | 15 LBS | 15 LBS | 13 LBS |
| Max TV VESA | ||||
| 600 x 400mm | 800 x 400mm | 600 x 400mm | 600 x 400mm | 600 x 400mm |
| Fits most TV Mounts | ||||
| ? | ? | ? | ? | ? |
| Soundbar Mounting Holes | ||||
| With Holes / Without Holes | With Holes / Without Holes | On the back/ bottom | On the back/ bottom | On the bottom/beneath |
