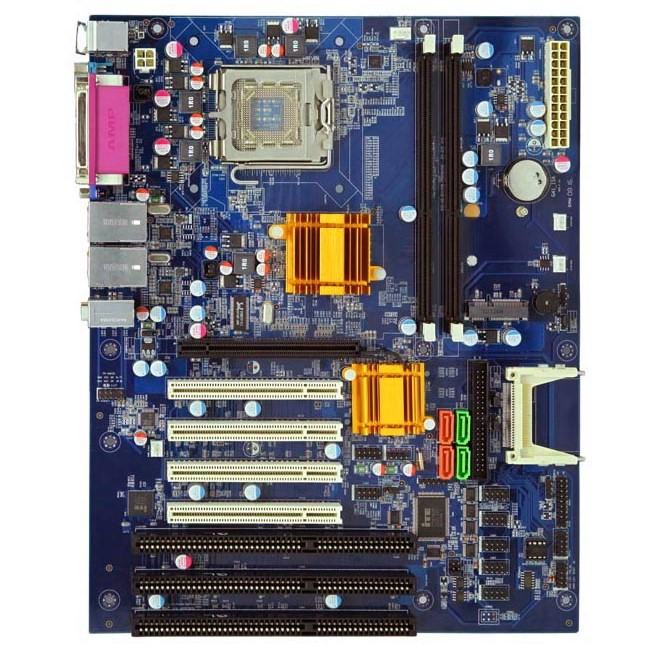

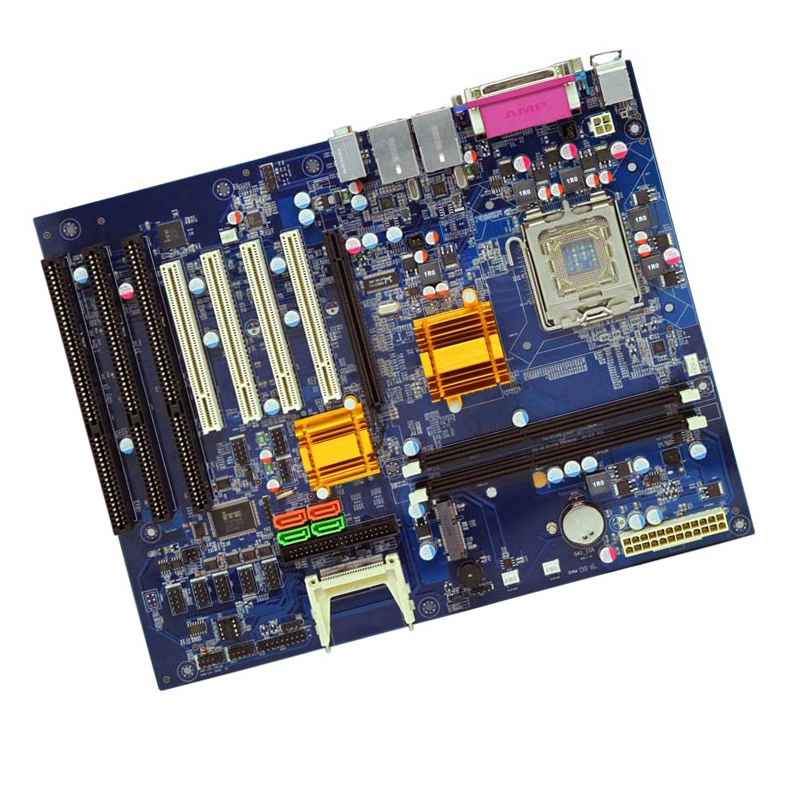

G41 ATX Motherboard with ISA PCI Slots
Features
- CHIPSET: Features the G41 chipset, providing reliable performance for desktop PC builds and upgrades.
- EXPANSION SLOTS: Equipped with 4 PCI slots,3 ISA slots to support a variety of add-on cards for enhanced functionality.
- CONNECTIVITY: Includes onboard I/O ports such as USB, RS232, VGA, and audio ports for versatile peripheral connections.
- DESKTOP COMPATIBILITY: Designed as a desktop mainboard replacement or upgrade, suitable for standard PC tower cases.
- G41 ISA ATX Mainboard,Compatible devices: Industrial Server,PC Desktop,Computer,

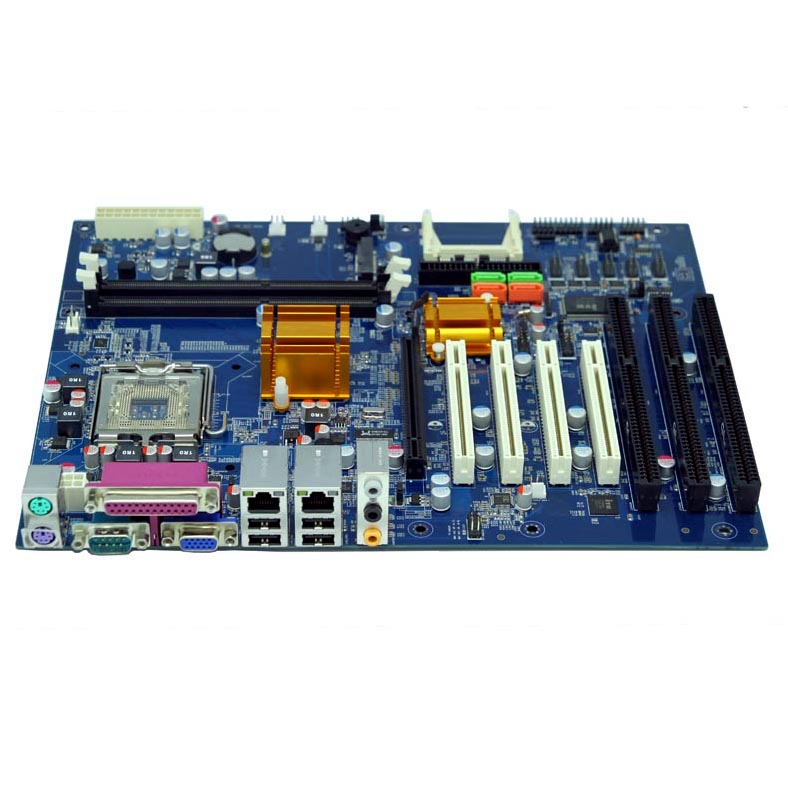

G41- Motherboard with PCI ISA Slots

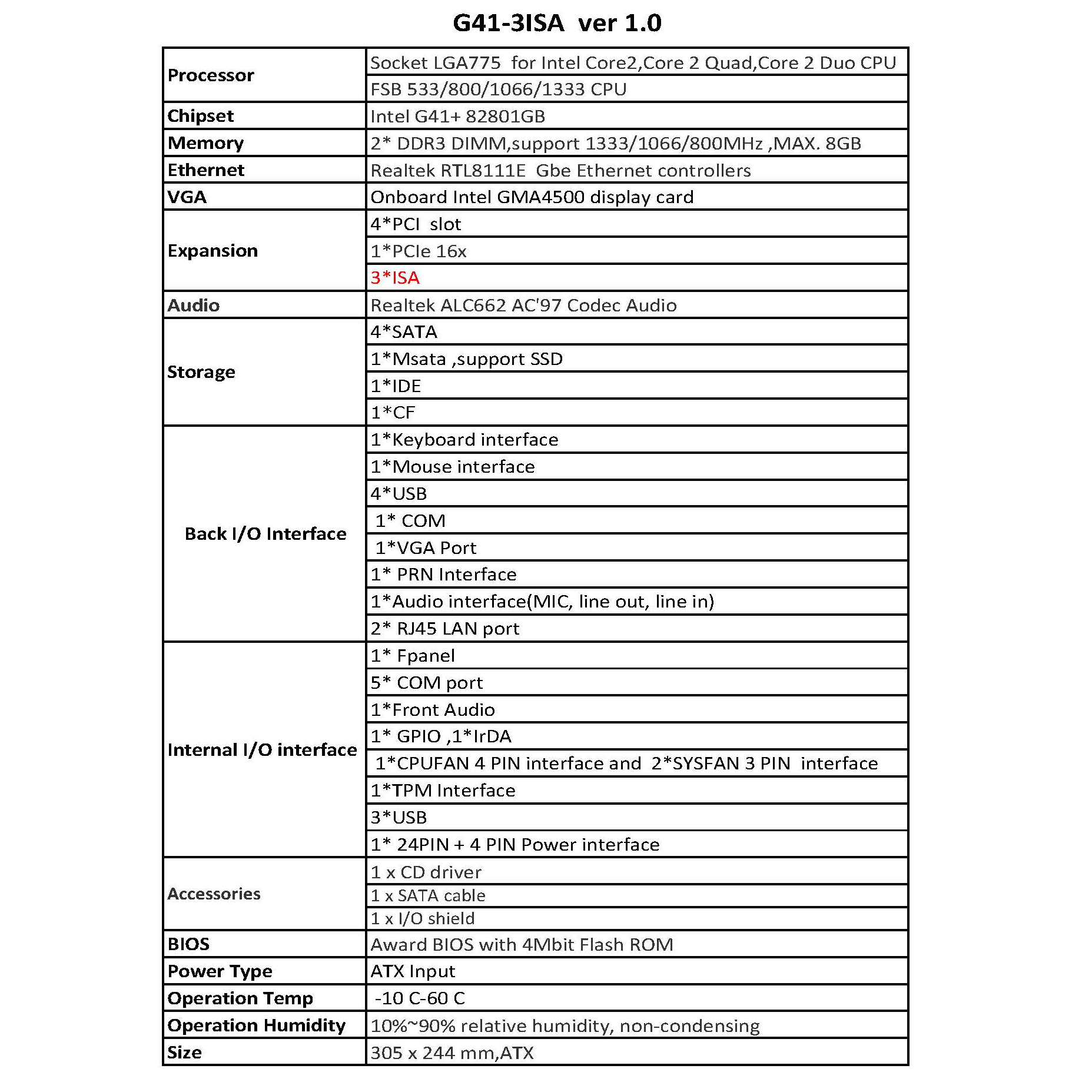

Specification
- Processor: Socket LGA775 for Core2, Core 2 Quad, Core 2 Duo CPU
FSB 533/800/1066/1333 CPU
- Chipset: G41+ 82801GB
- Memory: 2* DDR3 DIMM Slots, support 1333/1066/800MHz, MAX. 8GB
- Ethernet: Realtek RTL8111E Gbe Ethernet controllers
- VGA: Onboard GMA4500 display card

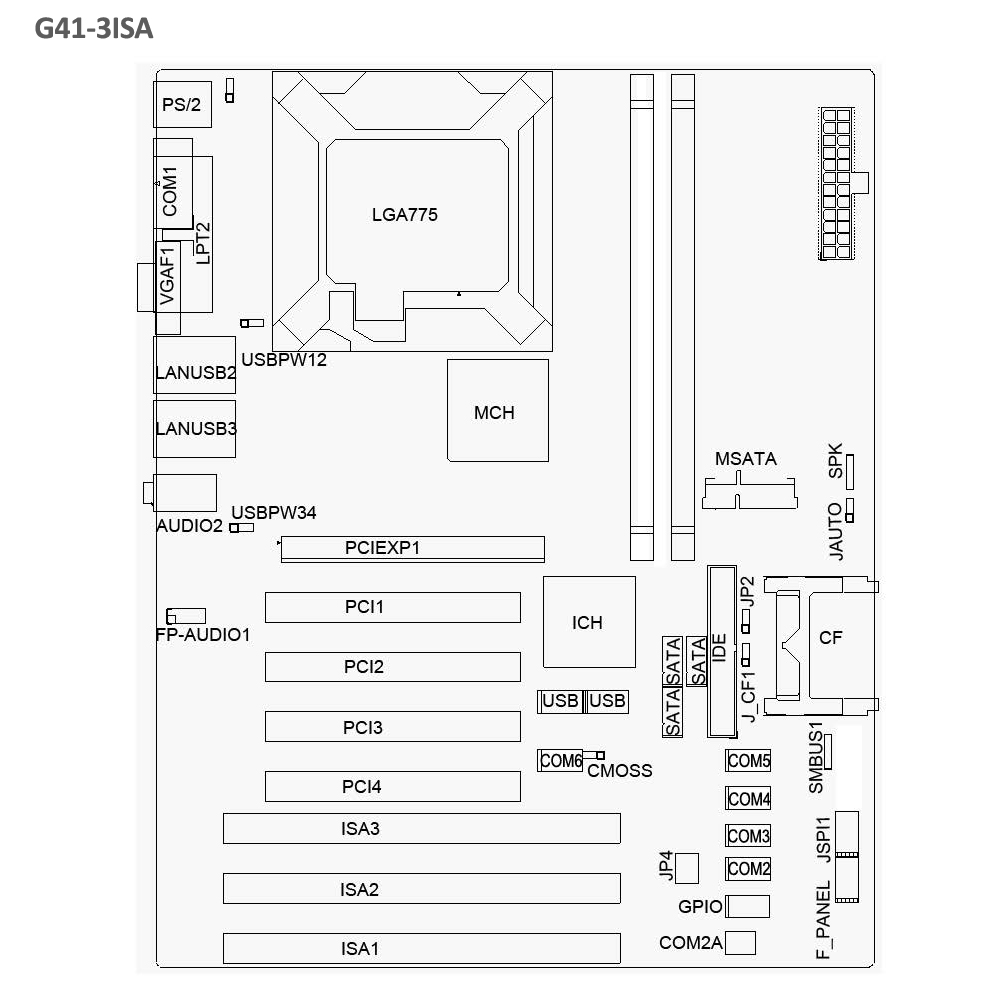

ISA Motherboard with 4 PCI Slots 3 ISA Slots
Interface
Expansion:
4*PCI slots
1*PCIe 16x
3*ISA
Audio: Realtek ALC662 AC'97 Codec Audio
Storage:
4*SATA
1*Msata, support SSD
1*IDE
1*CF

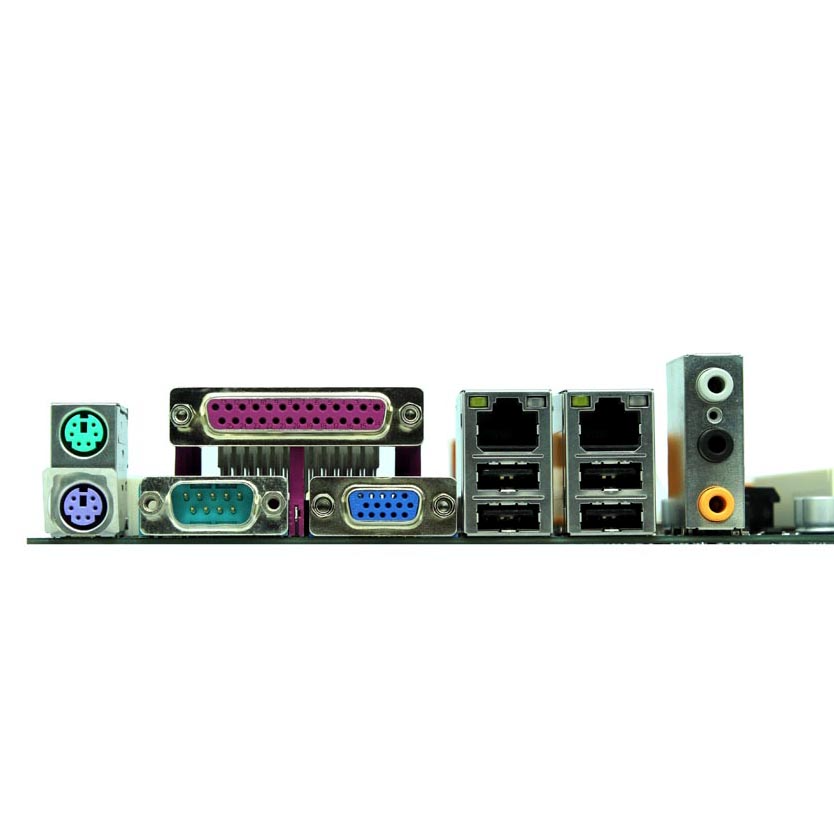

Back I/O Interface:
1*Keyboard interface
1*Mouse interface
4*USB ports
1* COM
1*VGA Port
1* PRN Interface
1*Audio interface(MIC, line out, line in)
2* RJ45 LAN port
Internal I/O interface:
1* Fpanel
5* COM port
1*Front Audio
1* GPIO, 1*IrDA
1*CPUFAN 4 PIN interface and 2*SYSFAN 3 PIN interface
1*TPM Interface
3*USB
1* 24PIN + 4 PIN Power interface
BIOS
Award BIOS with 4Mbit Flash ROM
Power Type: ATX Input
Operation Temp: -10 C-60 C
Operation Humidity: 10%~90% relative humidity, non-condensing
Size: 305 x 244 mm,
Description
ATX ISA Motherboard
- The G41 ISA Motherboard is a reliable desktop PC mainboard built around the G41 chipset, making it a solid foundation for your next build or system upgrade.
- The chipset delivers stable performance for everyday computing tasks, ensuring smooth and consistent operation.
- The board includes multiple expansion slots, memory slots , and a range of I/O ports including USB, RS232, VGA, and audio connectors, giving you the connectivity you need for a complete desktop setup.
- Whether you are building a budget-friendly workstation or refreshing an existing system, this motherboard offers a dependable platform to get the job done.
- Its compact yet feature-rich layout makes installation straightforward for both experienced builders and newcomers alike.
