SuperMicro SuperServer 6028U-TR4T+ with X10DRU-i+, 2x 2.3GHz 18-Core CPUs, 128GB DDR4 RAM, 9361-8i, 12x Trays, 4x 10GbE RJ45

SuperMicro SuperServer 6028U-TR4T+ with X10DRU-i+, 2x 2.3GHz 18-Core CPUs, 128GB DDR4 RAM, 9361-8i, 12x Trays, 4x 10GbE RJ45

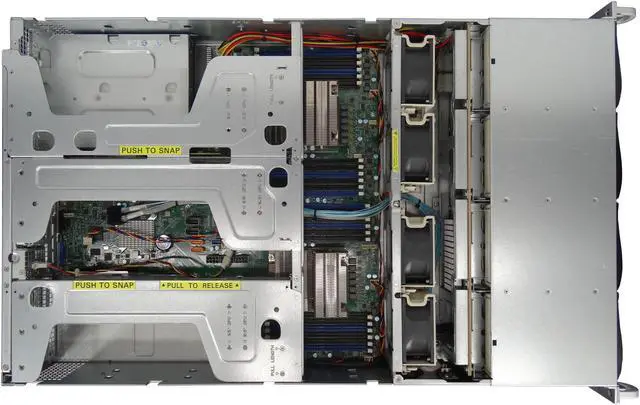

The Supermicro SuperServer 6028U-TR4T+ is a high-end server which utilizes the CSE-829UAC-R1K02-T 2U server chassis where the SC829UAC-R1K02-T 2U server chassis and the X10DRU-i+ dual processor motherboard subsystems reside. The SC829UAC-R1K02-T 2U form factor build is equipped with 12x hot-swappable 3.5 SAS 12Gbps/SATA 6Gbps drive bays and supports full height PCIe expansion cards. The X10DRU-i+ supports E5-2600 v3/v4 processors paired with up to 3TB ECC LRDIMM or 1.5TB ECC RDIMM at 2400MHz and includes the AOC-2UR6-i4XT riser card which has 4x X540 10GBase-T ports, (4x 10Gbps RJ45). The 2U form factor build supports 12x hot-swappable 3.5 SAS 12Gbps/SATA 6Gbps drive bays and 2x 1000W Titanium Level power supplies. The 6028U-TR4T+ offers flexibility for use cases that involve intense application workloads using its equipped 8x SATA3 (6Gbps), 12x SAS3 ports support via optional add-on Cards.

System: SuperMicro SuperServer 6028U-TR4T+

Motherboard: X10DRU-i+

Processor: 2x Xeon E5-2696 v3 2.3GHz Eighteen Core Processors

Memory: 128GB (4x 32GB) DDR4 Memory

Storage Controller: LSI MegaRAID SAS 9361-8i 12Gbps SAS/SATA PCIe Gen3 RAID Controller with Battery Backed Cache, (Supports 0,1,5,6,10,50,60)

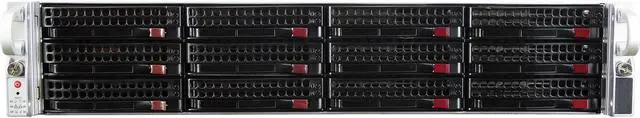

Hard Drive: 12x 3.5" Tray, (No Hard Drive Installed)

Graphics: Integrated Graphics

Integrated Network: 4x Intel X540 10GBase-T RJ45 LAN ports, AOC-2UR6-i4XT

Operating System/Software: No Operating System or Software Included

Management: IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Power Supply: 2x 1000W 80Plus Platinum Power Supplies

Rails: Does Not Include Rails
