VAP11G-300 is an environmentally safe WiFi bridge signal repeater.
Working in WiFi smart bridge mode, can achieve WiFi to Wired or Wired to WiFi function (Ethernet to WiFi or WiFi to Ethernet convert), smart exchange. Adopt D/A Temperature Compensated Auto Frequency Control Technology. the lasting stability ensures that the WiFi signal is not dropped.
Working in the repeater mode, VAP11G-300 can be doubled to extend the original WiFi signal coverage, while it can ensure the security of the wireless signal, its working principle is: at the edges of the original WiFi hot spot signal coverage, the VAP11G-300 that in "repeater mode " is able to receive weak WiFi signal, and then zoom in to the normal, safe strength, and after optimization, error correction processing, to achieve signal coverage distance doubled extension under safe.
This differs from a traditional wireless signal amplifier - only amplifies the signal and ignores the wireless security.
Tips:
1. Support IP and MAC layer transparent transmission as two bridge modes:
IP layer transparent transmission(factory default), can meet most of the bridge applications;
MAC layer transparent transmission, which can transparent transmission of the MAC layer(link layer) and above layer all data, including IP layer data;

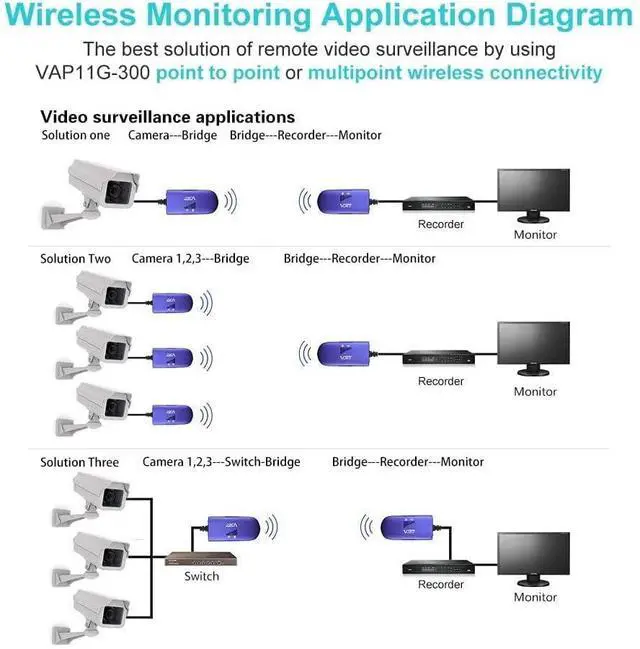

MAC transparent transmission can solve some special applications for MAC layer encryption, such as AP managed by AC, GoPro camera, Cisco AP, Hikvision surveillance system, etc.

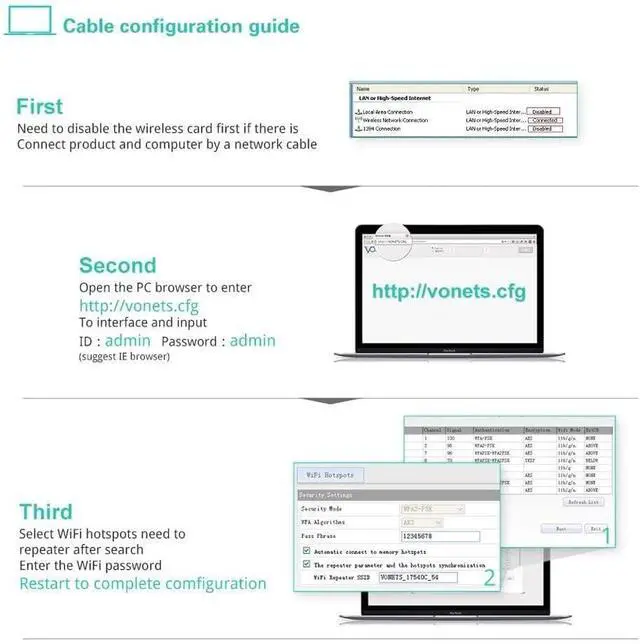

2. If you want to use Huawei or iPhone as a hotspot for WiFi bridge when you setting, please select "SSID and password match" in the "Advanced Setting" under the upper-level hotspot password.
3. If you encounter frequent disconnection or other problems during use, you can solve the problem by upgrading the software online.
4. This Device can't be plugged into a USB port and DC power source at the same time( Two Types of power supply can't be used at the same time)!

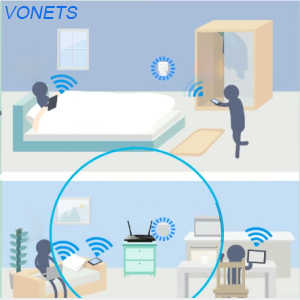

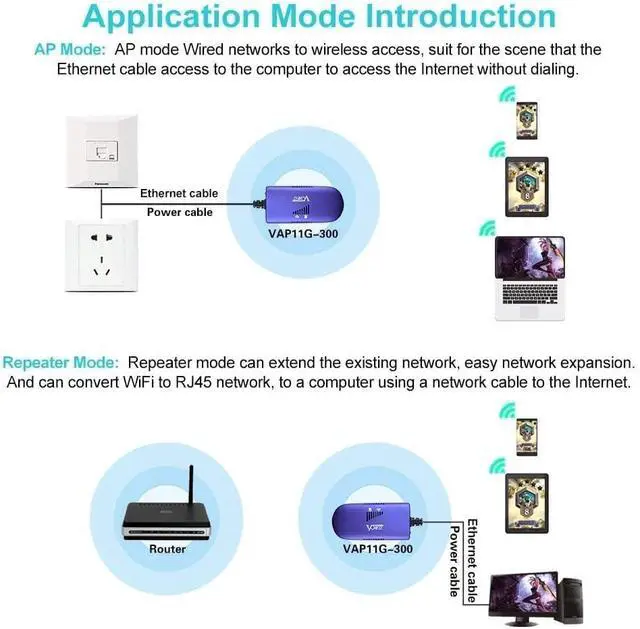

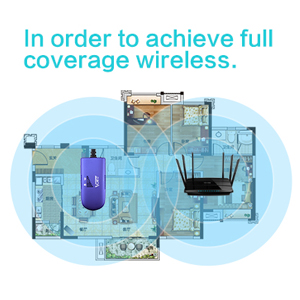

Repeater Mode

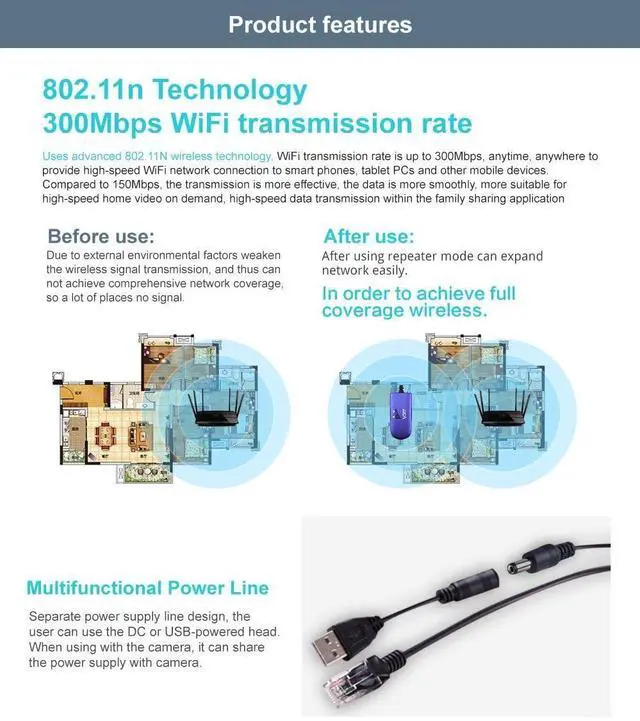

Easily extend the signal to areas not covered by the router, eliminate wireless signal blinds, and expand your application.
Bridge Mode

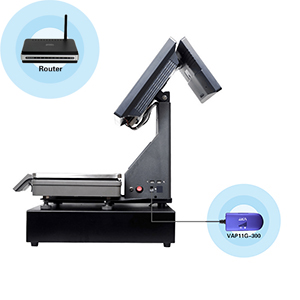

Industrial use wifi function / AP hotspot, WiFi to wired or wired to WiFi function (Ethernet to WiFi or WiFi to Ethernet change)

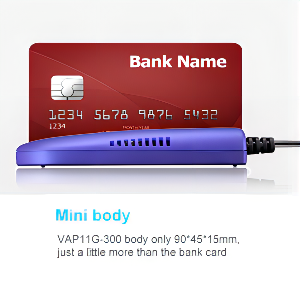

Mini WiFi Bridge
It's small, lightweight, easy to set up, and has a portable design, suitable for anything from industrial to home to travel.
Features:
1. WiFi smart bridge function, WiFi to Wired or Wired to WiFi.
2. WiFi smart repeater mode, extend the distance of WiFi transfer.
3. Supports WiFi hotspots scan automatically and memory function.
4. Support WEB remote firmware upgrade, can get the latest firmware free.
5. Support WPA-PSK/WPA2-PSK, 64/128/WEP security mechanism.
6. Transmission distance (without obstacles): 80 meters.
7. Support 802.11b/g/n WiFi transmission protocol,WiFi transmission rate:300Mbps (2.4GHz).
8. Original creation of VDNS virtual domain configuration technology to solve the user’s trouble with configuration.

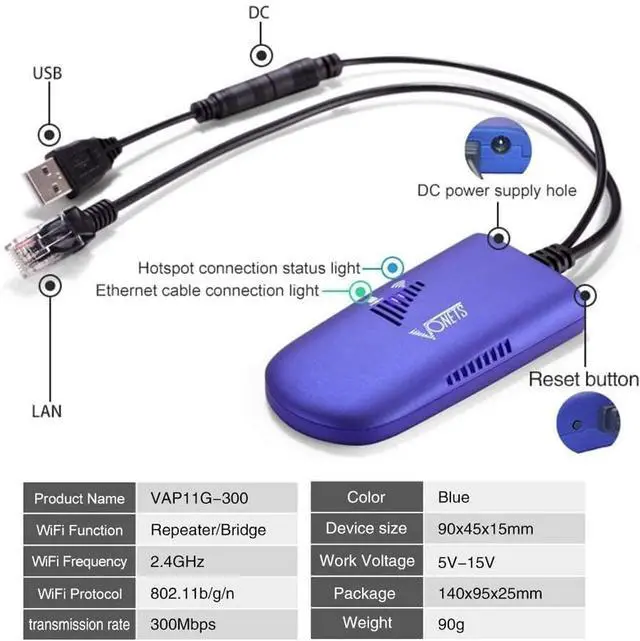

Hardware Specifications:
Support wide voltage DC5V-15V, total input power: =5W.

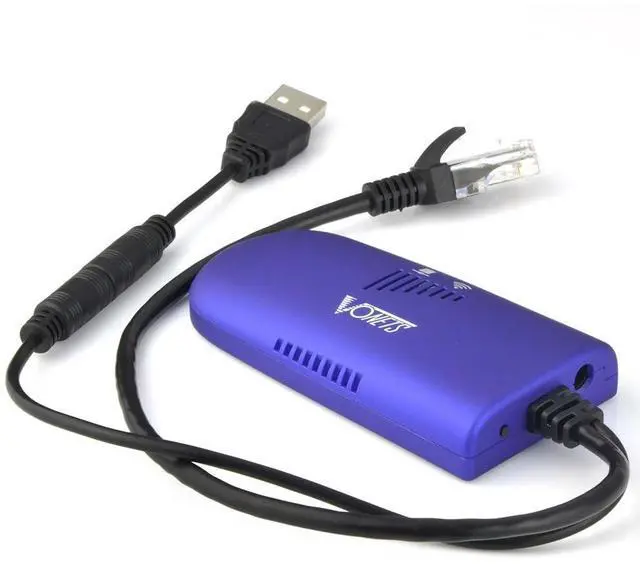

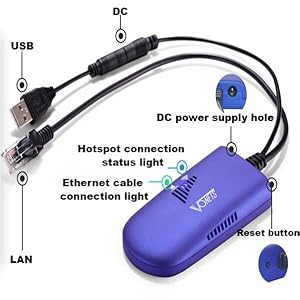

Interface:1 DC2.0 power hole; 1 dedicated two in one power supply cable, with a set of power supply and a set of 10/100Mbps adaptive Ethernet cable.
LED Status instruction: WiFi state/Hotspot connection state (blue light); Ethernet port state (light green for success).
Reset button: Long press 5 seconds then release(During operation, the product can not be powered down).
Antennas: Two built-in smart omnidirectional antennas.
Packages: 1*VAP11G-300 / 1*English user manual / 1*Retail box

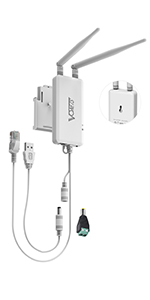

 VAR11N-300 |  VAP11AC |  VBG1200 |  VAP11S | |
|---|---|---|---|---|
| Customer Reviews | — | — | — | — |
| Price | — | — | — no data | — |
| Router Function | ? | no data | ? | ? |

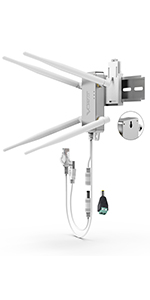

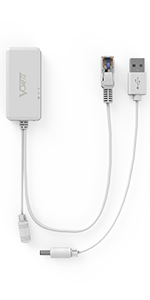

| Frequency Bands | 2.4GHz | 2.4GHz+5GHz | 2.4GHz+5GHz | 2.4GHz |
| Main Application | Home Application | Comprehensive | Industrial Grade | Industrial Grade |
| Antenna | Built-in Antenna | Built-in Antenna | External Antenna | External Antenna |
| Standard Voltage | 5V/1A | 5V/2A | 5V/2A | 5V/2A |
| Shell Design | Plastic | Plastic | Metal (cooling design) | Plastic |
VAP11G-300 is an environmentally safe WiFi bridge signal repeater.
Working in WiFi smart bridge mode, can achieve WiFi to Wired or Wired to WiFi function (Ethernet to WiFi or WiFi to Ethernet convert), smart exchange. Adopt D/A Temperature Compensated Auto Frequency Control Technology. the lasting stability ensures that the WiFi signal is not dropped.
Working in the repeater mode, VAP11G-300 can be doubled to extend the original WiFi signal coverage, while it can ensure the security of the wireless signal, its working principle is: at the edges of the original WiFi hot spot signal coverage, the VAP11G-300 that in "repeater mode " is able to receive weak WiFi signal, and then zoom in to the normal, safe strength, and after optimization, error correction processing, to achieve signal coverage distance doubled extension under safe.
This differs from a traditional wireless signal amplifier - only amplifies the signal and ignores the wireless security.
Tips:
1. Support IP and MAC layer transparent transmission as two bridge modes:
IP layer transparent transmission(factory default), can meet most of the bridge applications;
MAC layer transparent transmission, which can transparent transmission of the MAC layer(link layer) and above layer all data, including IP layer data;
MAC transparent transmission can solve some special applications for MAC layer encryption, such as AP managed by AC, GoPro camera, Cisco AP, Hikvision surveillance system, etc.
2. If you want to use Huawei or iPhone as a hotspot for WiFi bridge when you setting, please select "SSID and password match" in the "Advanced Setting" under the upper-level hotspot password.
3. If you encounter frequent disconnection or other problems during use, you can solve the problem by upgrading the software online.
4. This Device can't be plugged into a USB port and DC power source at the same time( Two Types of power supply can't be used at the same time)!
Repeater Mode
Easily extend the signal to areas not covered by the router, eliminate wireless signal blinds, and expand your application.
Bridge Mode
Industrial use wifi function / AP hotspot, WiFi to wired or wired to WiFi function (Ethernet to WiFi or WiFi to Ethernet change)
Mini WiFi Bridge
It's small, lightweight, easy to set up, and has a portable design, suitable for anything from industrial to home to travel.
Features:
1. WiFi smart bridge function, WiFi to Wired or Wired to WiFi.
2. WiFi smart repeater mode, extend the distance of WiFi transfer.
3. Supports WiFi hotspots scan automatically and memory function.
4. Support WEB remote firmware upgrade, can get the latest firmware free.
5. Support WPA-PSK/WPA2-PSK, 64/128/WEP security mechanism.
6. Transmission distance (without obstacles): 80 meters.
7. Support 802.11b/g/n WiFi transmission protocol,WiFi transmission rate:300Mbps (2.4GHz).
8. Original creation of VDNS virtual domain configuration technology to solve the user’s trouble with configuration.
Hardware Specifications:
Support wide voltage DC5V-15V, total input power: =5W.
Interface:1 DC2.0 power hole; 1 dedicated two in one power supply cable, with a set of power supply and a set of 10/100Mbps adaptive Ethernet cable.
LED Status instruction: WiFi state/Hotspot connection state (blue light); Ethernet port state (light green for success).
Reset button: Long press 5 seconds then release(During operation, the product can not be powered down).
Antennas: Two built-in smart omnidirectional antennas.
Packages: 1*VAP11G-300 / 1*English user manual / 1*Retail box
VAR11N-300 | VAP11AC | VBG1200 | VAP11S | |
|---|---|---|---|---|
| Customer Reviews | — | — | — | — |
| Price | — | — | — no data | — |
| Router Function | ? | no data | ? | ? |
| Frequency Bands | 2.4GHz | 2.4GHz+5GHz | 2.4GHz+5GHz | 2.4GHz |
| Main Application | Home Application | Comprehensive | Industrial Grade | Industrial Grade |
| Antenna | Built-in Antenna | Built-in Antenna | External Antenna | External Antenna |
| Standard Voltage | 5V/1A | 5V/2A | 5V/2A | 5V/2A |
| Shell Design | Plastic | Plastic | Metal (cooling design) | Plastic |
