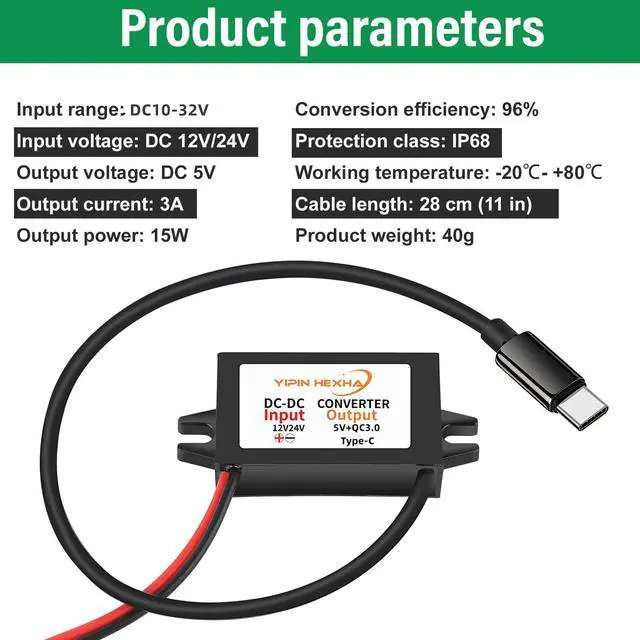

Product parameters
- recommended:12V/24V
- Input voltage range: DC 10V-32V
- Type-C output voltage: DC 5V+QC3.0
- QC3.0 fast charging output power:18W Max (5V/3A,9V/2A, 12V/1.5A)
- Automatic adjustment between 3V-12V after triggering fast charging
- No fast charging output power: DC 5V (3A/15W max)

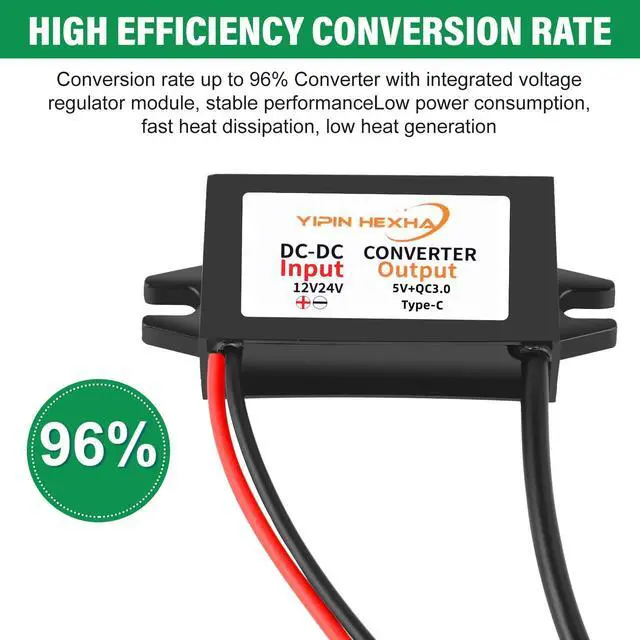

- Conversion efficiency: 96%.
- Operating temperature: -20?~80?
- Waterproof rating: IP68

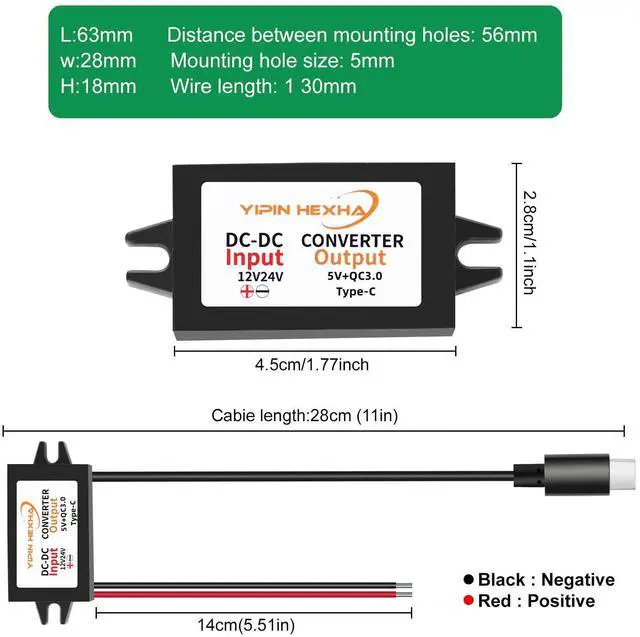

- Product size: 46*27*14mm
Warm Tips
- Does not support PD fast charging, can charge at 5V normal speed
- Does not support fast charging protocol Phone supports 5V normal speed charging

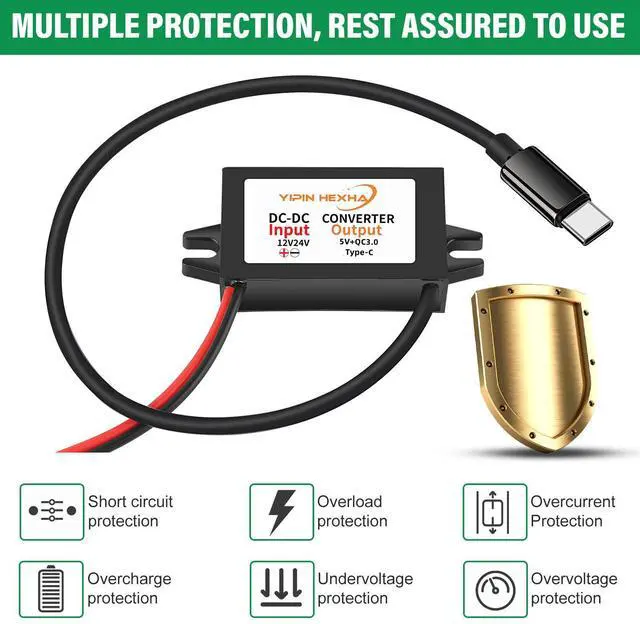

Protection Function
- Input reverse polarity protection
- Input overvoltage and undervoltage protection
- Input over-current protection
- Output overcurrent and short circuit protection, overheat protection
Package includes

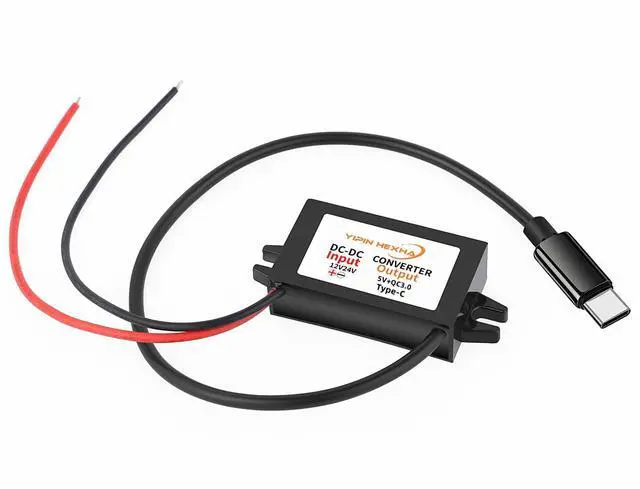

1 * DC-DC step-down type TYEP-C converter
DC 12V-24V to 5V USB
DC 12V-24V to 5V 3A USB
DC 12V-24V to 5V 6A USB
DC 12V-24V to 5V 8A USB
YIPIN HEXHA Bringing together years of experience in developing power converters and charging module products, we have carefully developed product technology and have been focusing on power module solutions for many years, using the latest technology to create more suitable power products for users.
12V/24V to 5V Quad USB
12V/24V to 5V Dual USB
12V/24V to 5V QC3.0 USB
12V/24V to 5V Single USB
12V/24V to 5V 6V 9V 12V
