ABOUT YWNEGWE
YWNEGWE has been in the lead networking products and accessories. However, we never stop pursuing creating more excellent products.

Network Cable Repair Maintenance Tool Kit Set
YWNEGWE Professional Network Cable Repair Tool Kit(Non Pass Through) Convenient for Our Work and, Save Time and Effort, Greatly Improve Work Efficiency.

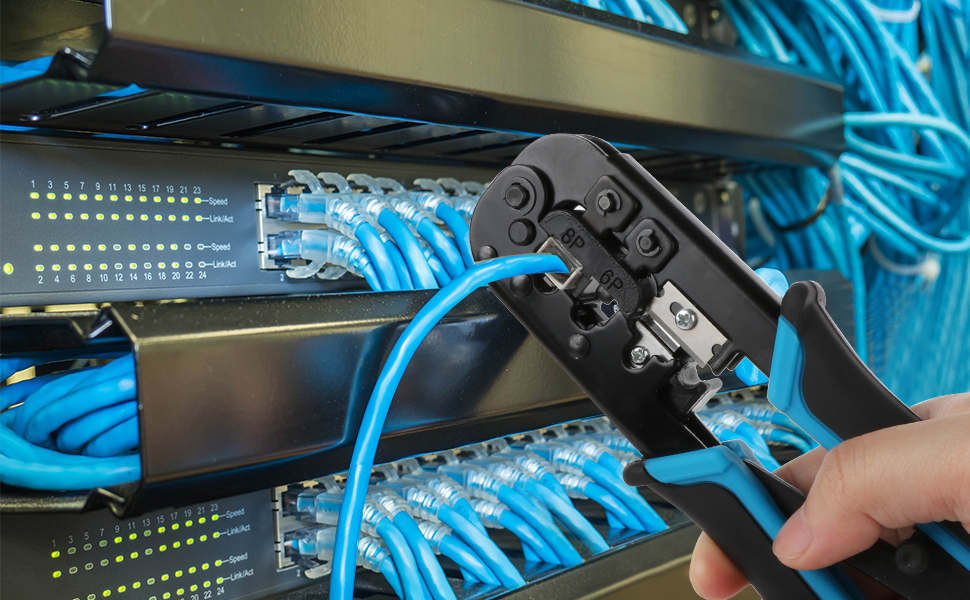

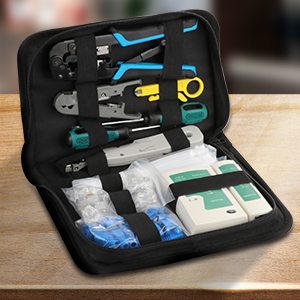

11-in-1 Network Maintenance Tool Bag
1 Cat5 RJ45 Crimping Tool
1 x Yellow Mini Wire Stripper Cutter
1 x Wire Punch Down Impact Tool
1 x Gray Multi-function Wire Stripper & Cutter
1 x Slotted Screwdriver & 1 x Phillips Screwdriver
20 x 8p8c cat5 rj45 connectors
20 x rj45 connector covers
100 x Nylon Cable Ties
1 x User Manual
1 x Tool Bag

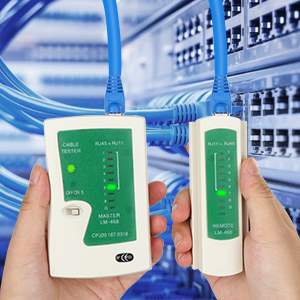

Ethernet RJ45 Cable Tester
For RJ-11, RJ-12, RJ-45, CAT5, CAT5e, 10/100BaseT, TIA-568A/568B, AT T 258-A; 1, 2, 3, 4, 5, 6, 7, 8 and ground 9 LED lights; Indicate wiring connection on both remote and master unit. Judges wrong connection, short circuit and open circuit. Auto scanning function for rapid testing. Powered by one 9V battery (not included).
How to Make An Ethernet Cable?

How to Make An Ethernet Cable?
1.Putting the Blue Strain Relief Boots into the cable inadvace.
2.Using the Mini Wire stripper to strip the cable lightly and do not hurt the wire.
3.Taking the protective jacket out.
4.Putting them into correct orders. You will see eight colors (1-8) wires with copper core after stripping the outer cover of the cable. Then you need to line up the eight colors of the cable according to T568B standard: Orange White, Orange, Green White, Blue, Blue White, Green, Brown White, Brown. (T568B Standard used in home more widely).
5.Using the Gray Wire Stripper & Cutter to cut the wire and let the wires to be flat.
6.Putting the wires into the RJ45 CAT5 Connector deeply. When inserting the cable into the crystal connector, hold the cable tightly to avoid the wrong sequence.
7.Putting forth your strength to crimp the connector.
8.Finish and use the Cable Tester to test the cable.

![]() RJ45 Crimping Tool Kit Ethernet Crimp Set, RJ-11, 6P/RJ-12, 8P/RJ-45 Crimp, C... | ![]() RJ45 Crimp Tool Kit for Cat5 Cat5e Cat6 Modular Plugs Connectors, RJ-11, 6P/R... | ![]() RJ45 Crimp Tool Kit Pass Thru Cat5 Cat5e Cat6 RJ45 Crimping Tool with 20PCS R... | ![]() RJ45 Crimp Tool Kit Pass Thru Ethernet Crimper for Cat5e Cat6 Cat6a 8P8C Modu... | ![]() RJ45 Crimp Tool Kit Pass Through Ethernet Crimper for Cat5e Cat6 Cat6a 8P8C M... | ![]() RJ45 Crimp Tool Pass Through,All-In-One Modular Ethernet Crimper for CAT7 CAT... | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Non-Pass Through/Pass Through | Non-Pass Through | Non-Pass Through/Pass Through | Pass Through | Pass Through | Pass Through | Pass Through |
| Compability | RJ45 CAT5 CAT5e | RJ45 CAT5 CAT5e | RJ45 CAT5e CAT6 CAT6a | RJ45 CAT5e CAT6 CAT6a | RJ45 CAT5e CAT6 CAT6a | RJ45 CAT5e CAT6 CAT6a CAT7 |
| Quantity | 43PCS | 44PCS | 43PCS | 43PCS | 145PCS | 1PCS |
